BN-SU-I 1280x1024 High Definition Shortwave Infrared Sensor 0.9-1.7 InGaAs Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BN-TU-I-VIS 320x256 Shortwave Infrared InGaAs Sensor 0.4-1.7NegotiableMOQ: 1 -
BN-HU-II-VIS 640x512 Shortwave Infrared InGaAs Sensor 0.4-1.7NegotiableMOQ: 1
-
BN-HU-II 640x512 Shortwave Infrared InGaAs Sensor 0.9-1.7NegotiableMOQ: 1
-
BN-HU-I-VIS 640x512 Shortwave Infrared InGaAs Sensor 0.4-1.7NegotiableMOQ: 1
-
BN640 640x512 Shortwave Infrared InGaAs SensorNegotiableMOQ: 1
Specification
item |
value |
Model Number |
BN-SU-I |
Type |
InGaAs shortwave infrared sensor |
Place of Origin |
China |
Zhejiang |
|
Brand Name |
BAINEL |
Usage |
Imaging |
Theory |
Shortwave infrared |
Output |
SWIR |
Description |
InGaAs shortwave infrared sensor |
Details Images
Products Description
Application Fields:
shortwave infrared imaging and hyperspectral imaging, security, night vision imaging, laser detection, environmental protection monitoring, industrial multispectral imaging analysis, medical imaging, etc.
Product features:
Format:1280X1024

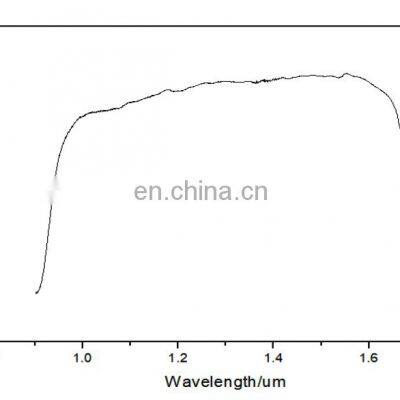

Spectral Response:0.9~1.7μm
High detection rate
Performance Parameter
Format |
1280X1024 |
||||||
Pixel Dimension |
15μm x 15μm |
||||||
Pixel Pitch |
15μm |
||||||
Spectral Response |
0.9~1.7μm |
||||||
Peak Detection Rate |
≥5 x 10^12 cm ·Hz^ 1/2 /W |
||||||
Quantum Efficiency |
≥70% @ 1.55μm |
||||||
Dark Current |
≤5fA @5℃，-5mV |
||||||
Non Uniformity Without Correction |
≤8% |
||||||
Blind Element Rate |
≤1% |
||||||
Dynamic Range |
≥60dB |
||||||
Power Consumption |
350mW |
||||||
Frequency |
50Hz |
||||||
Operating Temperature |
-20 ~ +60℃ |
||||||
Storage Temperature |
-40 ~ +70℃ |
||||||
Dimension |
67 mm (L)×46 mm (W) ×13 mm (H) |
||||||
Packaging Characteristics |
Internal integrated thermoelectric cooler, metal tube shell airtight package |
||||||
Remark:
(1) During the use of the product, the positive and negative ends of the thermoelectric cooler shall not be reversed, otherwise the performance and service life of the product will be affected.
(2) The product adopts thermistor to measure temperature, and the refrigeration effect is related to ambient temperature, power performance and heat dissipation state.
(3) The pin of the product is equipped with an electrostatic protection device. During use, the operator should wear an electrostatic bracelet and take appropriate electrostatic protection measures, and then remove the electrostatic protection device and use the product.
(4) During storage and transportation, products shall be equipped with electrostatic protection devices and stored in anti-static boxes.
(5) The product shall be plugged in and out after power failure; When the product does not work, the power supply to the thermoelectric cooler shall be stopped.
