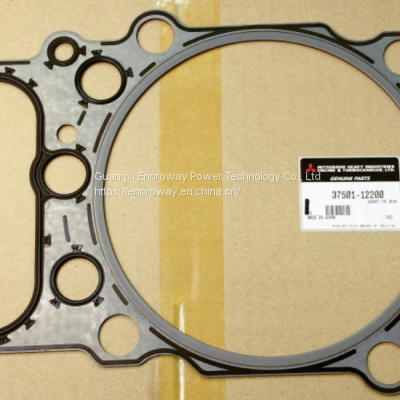

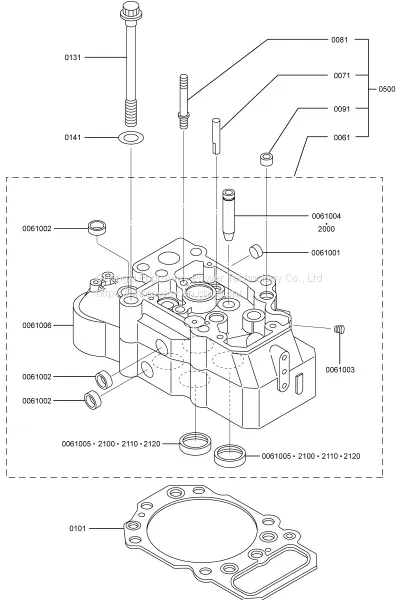

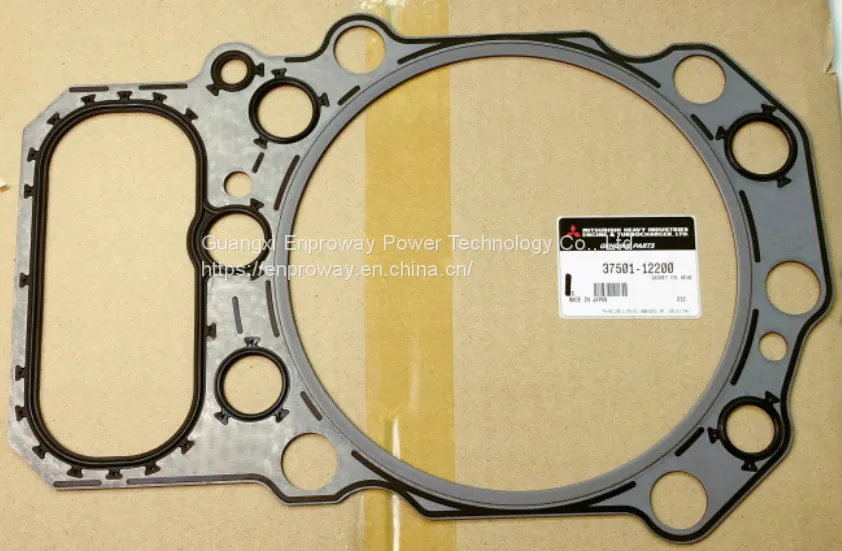

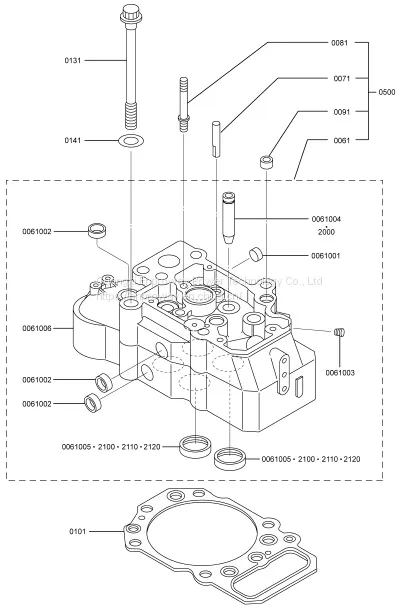

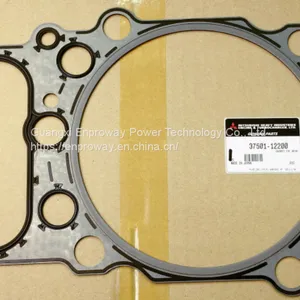

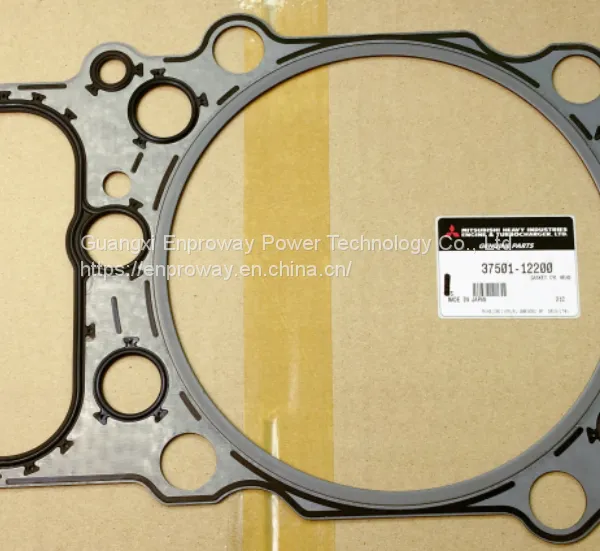

Help CenterWhere I Can Buy the Mitsubishi S6R S6R2 Cylinder Head Gasket 37501-12200 OEM Parts ?
Related Products
-
Mitsubishi Spare Parts Genuine Part Fuel Filter 37540-02100US$ 10 - 88MOQ: 1 Piece -
Mitsubishi OEM Parts Fuel Pump Mitsubishi MT33 K4F Engine MM438872 Made in ChinaUS$ 1.99 - 19.99MOQ: 1 Piece
-
S12N Mitsubishi Diesel Engine Parts S6N Mitsubishi Piston Ring 37117-04020 37117-04012US$ 0.99 - 1.99MOQ: 1 Piece
-
Mitsubishi Diesel Engine Parts Mitsubishi Oil Filter 37540-11100US$ 1.99 - 9.99MOQ: 1 Piece
-
Cummins Diesel Engine Parts Cummins Overhaul Kit for NT855 Engines - 3800659US$ 9 - 29MOQ: 1 Piece
As there are many accessories for the Mitsubishi engine model S6R2, it cannot be showed all. If you need to inquire about purchasing accessories, please contact us and provide the related machine nameplate or accessories part number:
Bi Yanning(Icy) Telephone/Wechat/Whatsapp:(+86)19968038093
QQ:1019342328 Line: 66886298975 Email:enproway.icy@gmail.com
The following are the main technical specifications of the Mitsubishi engine S6R2
Format: Water-cooled, 4-stroke, exhaust turbo, air cooler
Number of Cylinders - Arrangement: 6 - Inline
Cylinder bore × stroke: φ 170 × 220 mm
Total working capacity: 30.0 L
Combustion method: direct injection
Compression ratio: 14.0 : 1
Fire order: 1 - 5 - 3 - 6 - 2 - 4
Rotation direction: Rotate to the left as viewed from the flywheel end
Dimensions (L×W×H): Approx. 1946 × 1051 × 1578 mm
Dry mass: about 2900 kg
run on fuel; diesel
Fuel injection pump: Mitsubishi PS6 type
Governor: Mechanical hydraulic or electric
Fuel filter: paper filter element
Fuel Injector: Pinhole
Fuel injection start pressure: 34.3 MPa {350 kgf/cm2}
Lubrication method: Forced lubrication type (lubricating oil pump pressure feeding)
Lubricant used: CF grade or CH-4 grade (API service classification)
Lubricant capacity: Oil pan: Approx. 84 L, Overall engine: Approx. 94 L
Lubricating oil filter: paper filter element
Lube Oil Cooler: Water Cooled Laminate
Cooling method: Forced cooling
Cooling water capacity: Approx. 55 L (including engine body only)
Start mode: electric start or air start
Starter motor: DC 24 V - 7.5 kW
Charger: DC 24 V - 30 A
Turbocharger: Mitsubishi TD13 or TD15
Flywheel: Equivalent to SAE.18in
Flywheel Cover: Equivalent to SAE. No.0
The common model NO. of Mitsubishi diesel generator set parts:
8DC7、8DC8、8DC9、8DC11、10DC、S4E、S4E2、S4Q2、S4S-T、S4K-T、4DQ5、ADQ7、4DR5、4G15、4G32、4G33、4G41、S6K、S6E、S6S、6D15C、6D16、6D16-T、6D22-T、6D22-TC、6D24、6DR5、S6B-PTA1、S6B-PTA2、S6B3-PTA、S6A-PTAA、S6A3-PTAA、S6R-PTA、S6R2-PTA、S6R2-PTA、S12H-PTA、S12R-PTA、S12R-PTA2、S12R-PTAA2、S16R-PTA、S16R-PTA2、S12R-PTAA2。
If you need more detailed info. Pls contact us: 19968038093(wechat/whatsapp)
