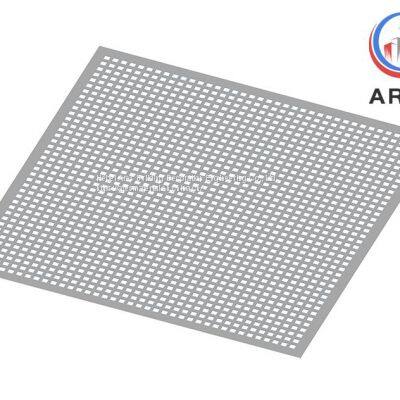

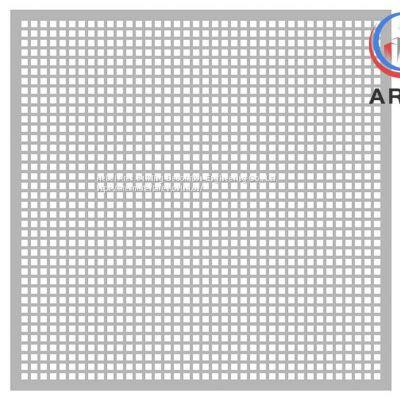

Help CenterSquare Holes Aluminum Perforated Sheet Metal HJP-1015S Square Perforated Sheet Metal
Related Products
-
Hexagonal Perforated Expanded Sheet Metal for Window Safety HJP-6535 Hexagonal Perforated Sheet MetalNegotiableMOQ: 10 Square Meters -
Customized Perforated Metal Panel for Decoration HJP-1510T Perforated Metal MeshNegotiableMOQ: 10 Square Meters
-
Round Holes Aluminum Perforated Sheet HJP-1015R Round Hole Perforated MetalNegotiableMOQ: 10 Square Meters
-
Square Holes Aluminum Perforated Sheet Metal HJP-1015S Square Perforated Sheet MetalLaser Cut Room Divider Panels HJJ-2201NegotiableMOQ: 10 Square Meters
-
Stainless Steel Architectural Wire Mesh for Security HJS-G175 Stainless Steel Decorative Wire MeshNegotiableMOQ: 10 Square Meters
Perforated Sheet Supplier
Model No.: HJP-1015S
Material: Aluminum
Thickness: 2.0 mm
Hole shape: Square (Straight 90 degree)
Hole diameter: 10mm
Hole pitch: 15mm
Weight: 4.81 kg/m2
Open area: 40.28%
Huijin Perforated Metal Sheet
(1)Production of perforated sheet
Perforated metal panels are produced by punching holes of different shapes and sizes into metal plate to create various patterns. A range of tools can be utilized alongside punching machines to create regular and irregular patterns.
(2)Various Material Choice of Perforated Sheet
· Aluminum, aluminum alloy
· Carbon steel
· Galvanized plate
· Stainless steel 201, 304, 316, 316L
· Copper
For decoration use, most customers choose aluminum alloy as their project material, because it is light weight, easy to install on frame.
For the 3 series and 5 series grade, some of the holes are limited by their ductility and stretchability, actually it is more suitable for producing perforated sheet.
(3) Optional Surface Treatment of Perforated Metal Panel
Available in a large variety of finishes including powder coated and anodised, perforated metal mesh provides designers and architects with the freedom to create a diverse range of patterns and designs.
· Mill finish
· Powder coating
· PVDF painting
· Spraying painting
· Anodizing (only for aluminum material)
(4) Extensive Color Options of Perforated Sheet Metal
· RAL color card
· Pantone card
· Customized according to your sample or photos
(5) Application
The perforated sheet can be used for different applications in the architectural sectors:
Perforated Sheet for Building facade
Perforated Mesh for Roof Ceiling
Perforated metal mesh for Decorative fence
Perforated mesh for Interior Screen
As well as the aesthetic properties, perforated panel systems are an effective method of satisfying ventilation and solar shading requirements.
Our specialists can provide expert advice and guidance to assist you in selecting the appropriate format of perforated metal panel. We can assist with advice regarding acoustics, light transmission and ventilation requirements and offer suggestions to suit individual budgets, designs and installation requirements.
Whatever is the process, type of perforated metal sheet or field of application, we guarantee the highest quality.
