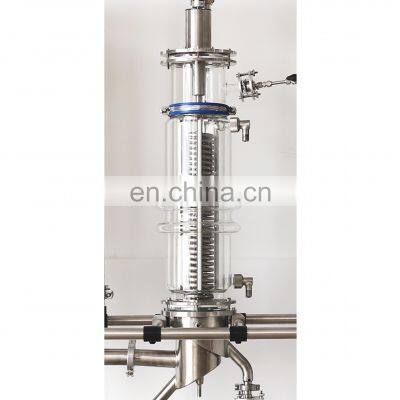

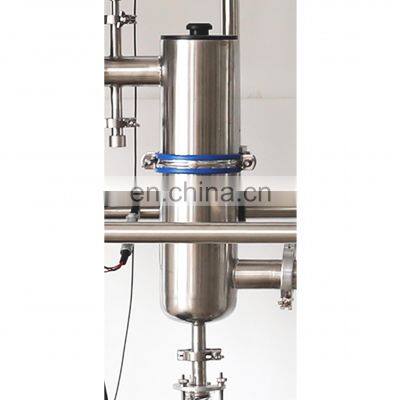

7.9" Hydrid Wiped Film Molecular Still Distillation System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hybrid Customizable Short Path Wiped Film Evaporator Distillation for SaleNegotiableMOQ: 1 -
Lab1st Short Path Wipedfilm Distillation MachineNegotiableMOQ: 1
-
Hydrid Wiped Film Evaporator Molecular Vacuum Distillation SystemNegotiableMOQ: 1
-
LAB1ST Hybrid Short Path Rolled Film Molecular Molecule Distillation UnitNegotiableMOQ: 1
-
Lab1st Turnkey Hybrid Wiped Film Molecular Evaporator Distillation SystemNegotiableMOQ: 1
Products Description
Product Paramenters
Model |
HMD-150 |
HMD-200 |
|
General Feeding Rate (kg/h) |
1.25~12.5 |
1.75~17.5 |
|
Throughput - Crude CBD Oil (kg/h) |
2.5 ~ 5 |
3.5 ~ 7 |
|
Material |
Boro Glass 3.3 (evaporator) / SS316L (other wet parts) / PTFE (wiper) / SS304 (frame) |
||
Effective Evaporationn Area (㎡/sqft) |
0.25/2.7 |
0.35/3.8 |
|
Evaporator Internal Diameter (mm/inch) |
150/6.0 |
200/7.9 |
|
Feeding Funel Volume (L) |
3 |
5 |
|
Internal Condenser Area (㎡) |
0.4 |
0.5 |
|
Distillate Receiving Vessel Volume (L) |
5 |
5 |
|
Residue Receiving Vessel Volume (L) |
3 |
5 |
|
Motor Power (W) |
120 |
||
Maximum Speed (rpm) |
400 |
||
Stirrer Seal |
Oil-less Magnetic, High Vacuum |
||
Wiper Type |
Scraper |
||
Vacuum Gauge |
Pirani Style |
||
Operation Temperature |
Up to 250℃ |
||
Vacuum Degree |
Better than 10 Pa |
||
Voltage |
220V-Single Phase / Customizable |
||
Dimension (LxWxH mm) |
2270 x 1940 x 628 |
2420 x 2040 x 628 |
|
