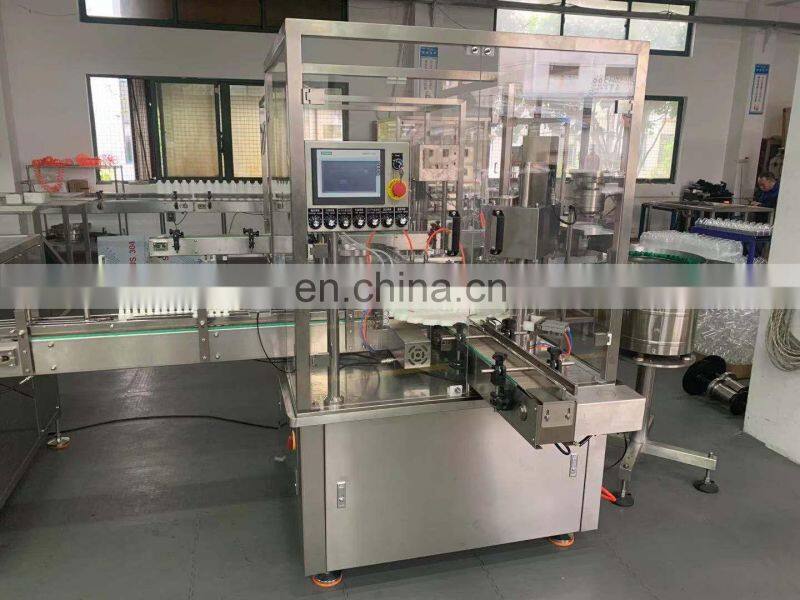

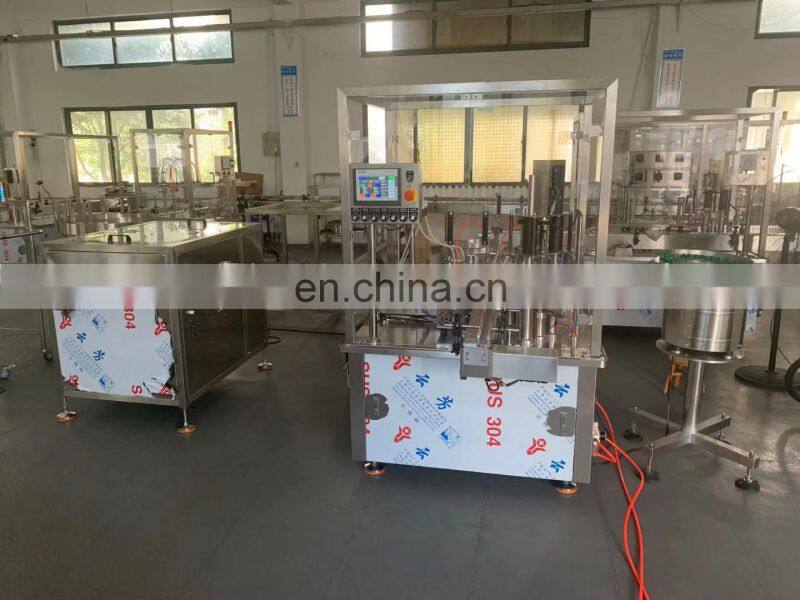

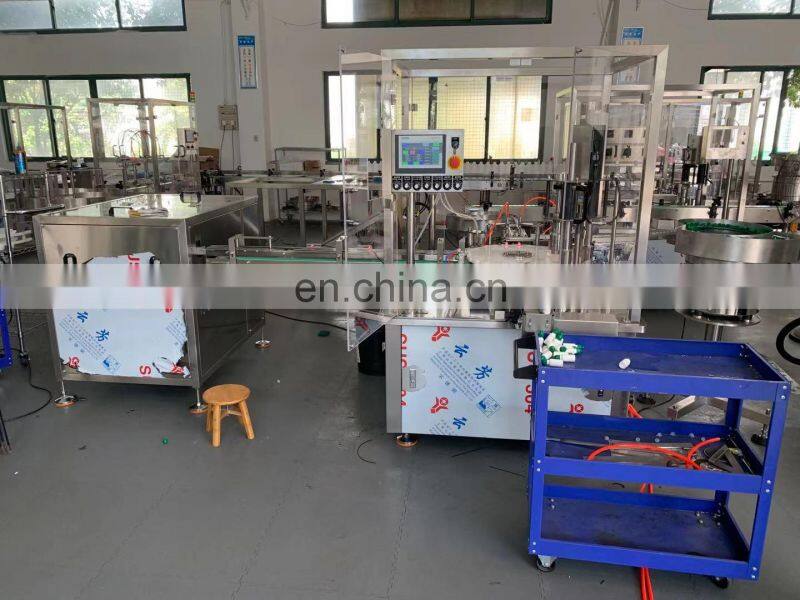

High quality small scale 3-in-1 oil eye drop e-liquid bottle eye vial water filling capping machine
(high speed bottle unscrambler,liquid filling capping,labeling machine)
Purpose and performance:
This machine is mainly applied to filling eye drops into 5-10ml
Round plastic or glass bottles or bottles made of other materials. High-precision cam indexing mechanism finishes plate classification,positioning,screwing of plugs and caps.Cosine acceleration cam finishes lifting/descending operation of capping heads,Constant torque capping heads are adopted for screwing caps,Peristaltic pump is used for filling or ceramic pump is used for measurement filling.This machine is controlled by touch touch screen computer,with unique functions such as non-filling liquid/non-plug screwing when bottles are not in place,non-capping when plugs are not screwed.It is advisable to choose dust cover.
Features:
1. Accurate positioning,stable conveying;
2. Constant torque capping heads are adopted for screwing caps .Automatic skid device causes no damage for bottle caps.
3. Simple measurement adjustment, accurate filling precision,and convenient operation.
Specification:
|
Scope |
5-10ml |
|
Output |
80-100bottle/min |
|
Air wastage |
1m3/h |
|
Weight |
650kg |
|
Power |
380V 50HZ 2KW |
|
Over Dimension |
2500mm×1350mm×1730mm |
