Best price automatic effervescent tablet tube filling machine is part of china pharmaceutical equipment and packaging machinery

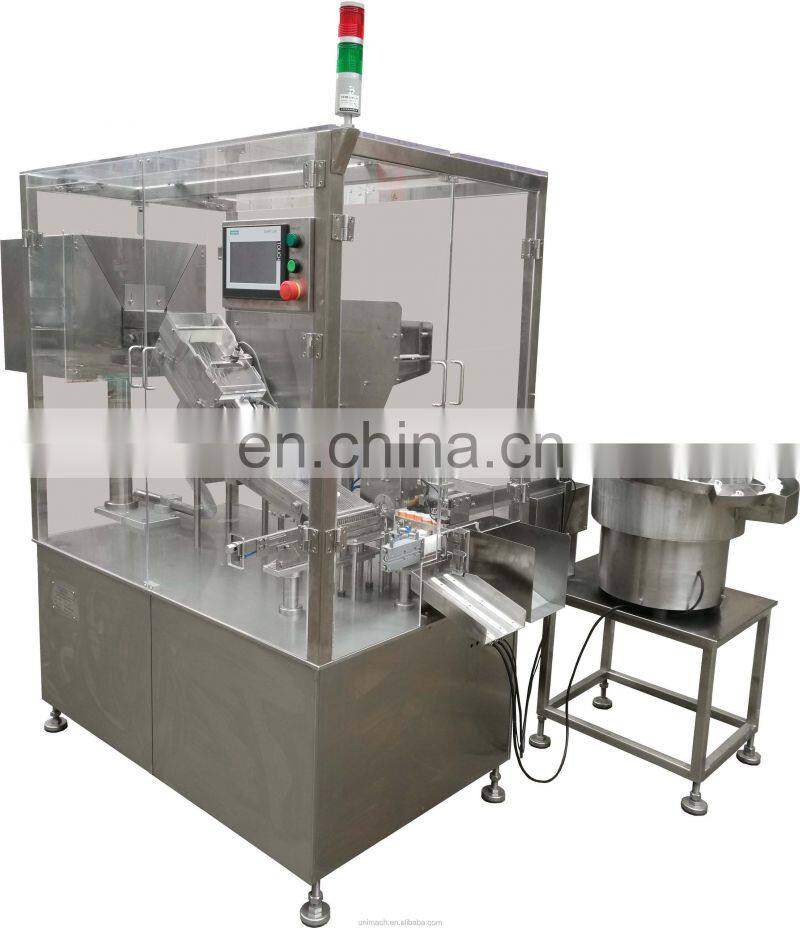

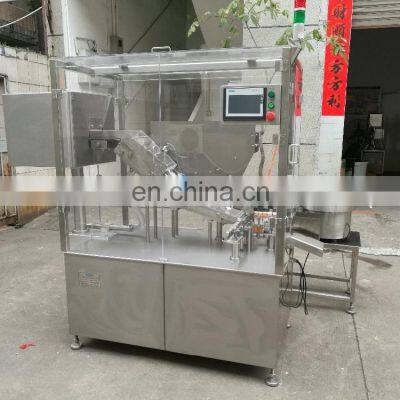

Machine with glass cover
Introduction

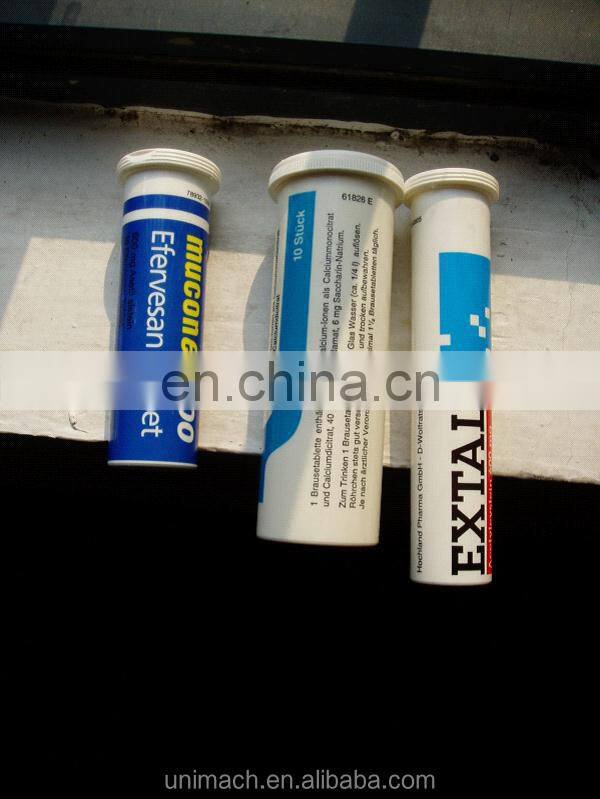

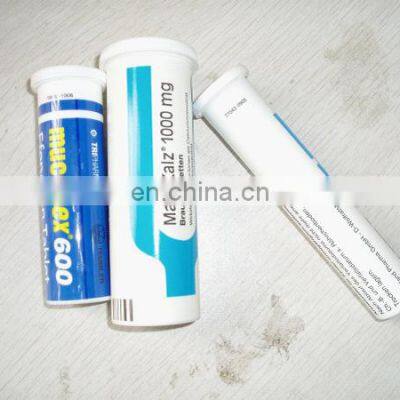

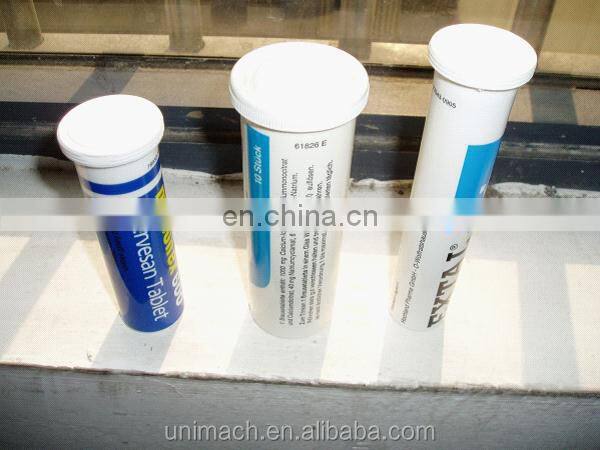

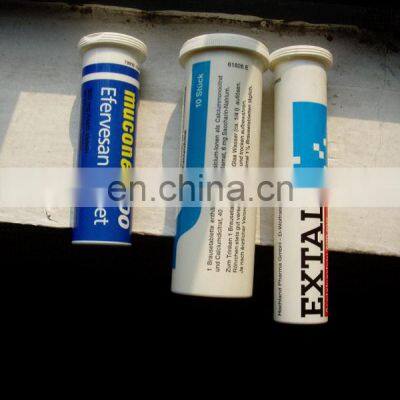

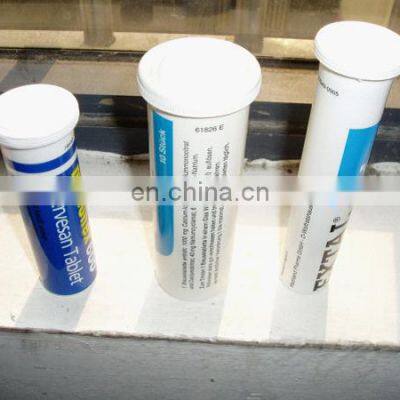

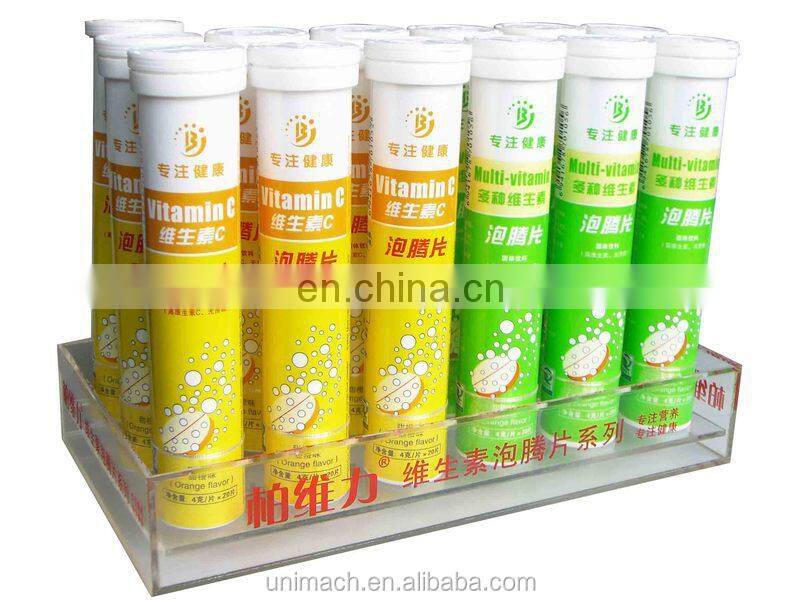

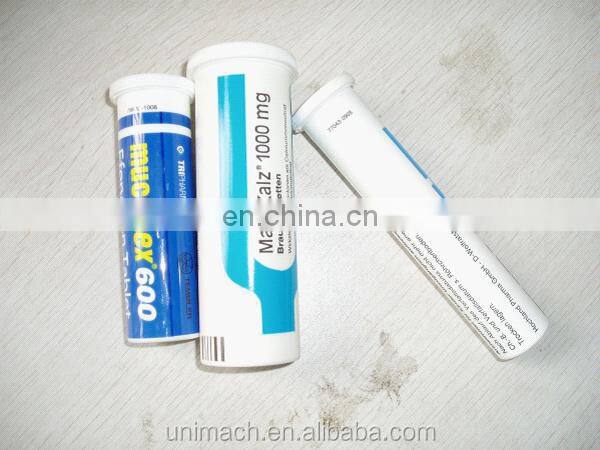

TP-40B Effervescent Tablet tube filling capping machine is applicable to the packing of bigger and thinner tablets which are orderly fed into bobbin bottles in single row in an overlapping way.The device utterly adopts a PLC for centralized control,it is verified in fiber and photoelectric detections and other kind of detections to have steady performance and reliably automatic operation.it can automatically give alarms and shut down in case of no tablets ,bottles or covers.its part in contact with the tablets is made of superior 304 or 316L stainless steel ,which totally meets the GMP requirement.Thus , it is the best device for pharmaceutical factories,health product factories and food factories to pack effervescent tablets esp Vitamin C,calcium and other products alike.
This unit is safe,efficient,accurate and clean.It sells well with its high quality and performance.
Features
· This unit was designed for layered filling of tablets into a tube and then placing a plastic stopper in the top.
· Automatic tube feeder.
· Automatic tablet channel Counting.100% accurate.
· No tube, no filling; No tablets, no capping.
· Automatic vibratory bowl for stopper (cap feeding).
· Automatic cap press sealing.
· Detection and rejection if less filling
· PLC+HMI control system
Main Technical Specifications
|
Model |
TP-40B |
|
Filling range |
10-30tablets/tube as per customer’s requirement |
|
Diameter of tablet |
12-30mm |
|
Thickness of Tablet |
3-8mm |
|
Length of Tube |
80-180mm |
|
Max.Capacity |
40Tubes/min depending on the product and tube size |
|
Power supply |
0.8kw |
|
Compressive air |
0.5~0.6MPa, 0.28m3/min |
|
Overall size |
2000mm*1600mm*1680mm |
|
Weight |
600Kgs |
Main electric appliance list:
|
No. |
Name |
Brand |
|
1 |
PLC |
Siemens |
|
2 |
Touch screen |
Siemens |
|
3 |
Electrical control part |
Schneider |
|
4 |
cylinder and solenoid valve |
FESTO |
|
5 |
Photoelectric,magnetism switch |
SUNX,Meiji,FESTO |
