High Quality Fully Auto Capsule Filler Filling Machine

High Quality Fully Auto Capsule Filler Filling Machine photo-1
High Quality Fully Auto Capsule Filler Filling Machine photo-2
High Quality Fully Auto Capsule Filler Filling Machine photo-3
High Quality Fully Auto Capsule Filler Filling Machine photo-4
High Quality Fully Auto Capsule Filler Filling Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

High Quality Fully Auto Capsule Filler Filling Machine

Innovations and features A. In order to improve the quality and production efficiency of this model, we have made significant improvement on the original 1200Dautomatic capsule filling machine. The overall machine size has been enlarged, where the main machine dimension is changed to1100×910×2100mm mm. B. For ensuring the device quality and production effects: we have selected bigger high precision dividing box, which is better than 1200Dautomatic capsule filling machine of the same model produced by other companies in domestic industry, who usually use the configuration of 83DS and 83DS cam dividing box, and whose disadvantage is that the filling speed is limited at about 900pcs capsule per minutes in proper working condition. Forcibly increasing the filling speed to about 1000pcs capsule per minutes and continuing the working condition for these machines may cause breaking of the input and output shafts and the subsequent operation stopping. Unlike other companies, we use cam dividing configuration of 100DS, and we are the first one in domestic market to use the 100DS. Although the production cost increases, we have significantly enhanced the device’s production efficiency and service life. Its filling speed has been raised up to about 1100pcs capsule per minutes. Due to these advantages, it has been widely received by customers at home and abroad. (Attached figure 1 and 2)
Product Description
Specification
Model
NJP-1200D Automatic High Precision Capsule Filling Machinery
Filling capacity
72000pcs per hour
Weight
1000Kg
Dimension
1100×910×2100mm
Power supply
380/220V 50Hz
Total power
5.5KW
Segment bores
9 holes
Dust collector
24.5Kpa 210m3/h
Vacuum
40m3/h-0.04-0.08Mpa
Air compression
Air consumption 5m3/h Pressure 5-7Kg
Water source
500L/h 0.1-0.2Mpa
Operating noise
<75DB(A)
Filling percentage
Empty capsule 99.9% filled capsule 99.8%
Capsule size
00,0,1,2,3,4,5#
Filling accuracy
Western medicine ±3% Chinese medicine ±4%
Suitable for
Powder, Granule, Pellet, Tablet.

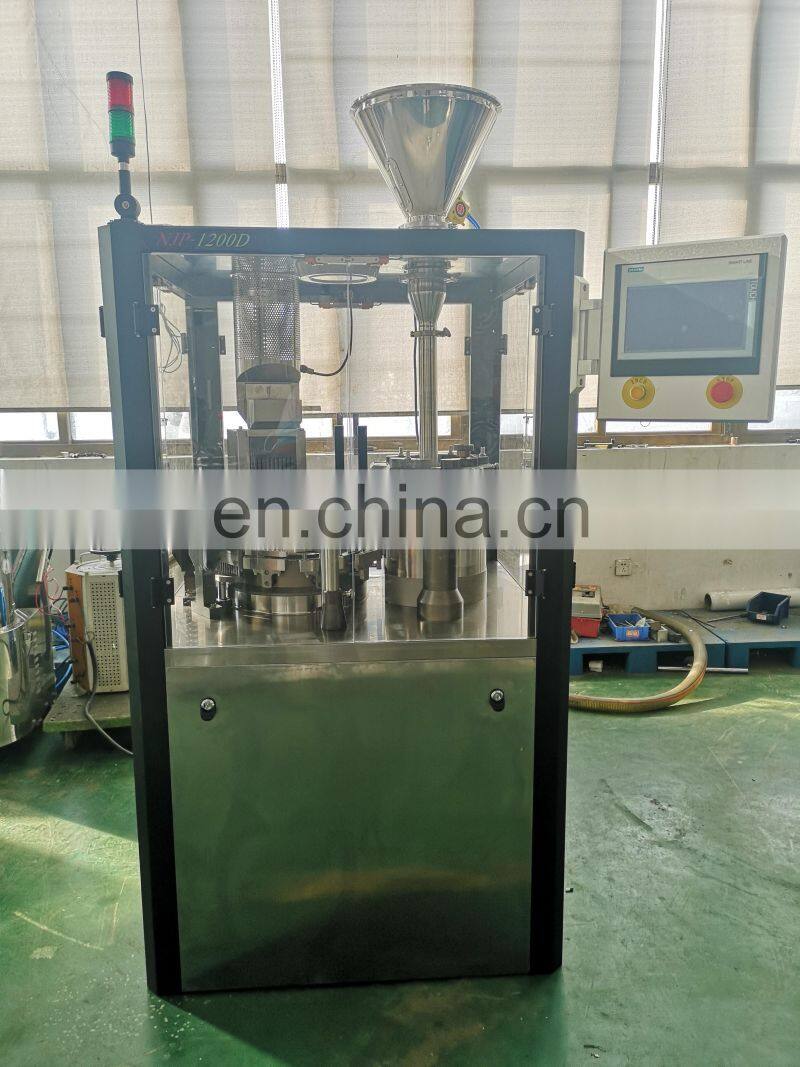

Detail Images:

Machine Feature:

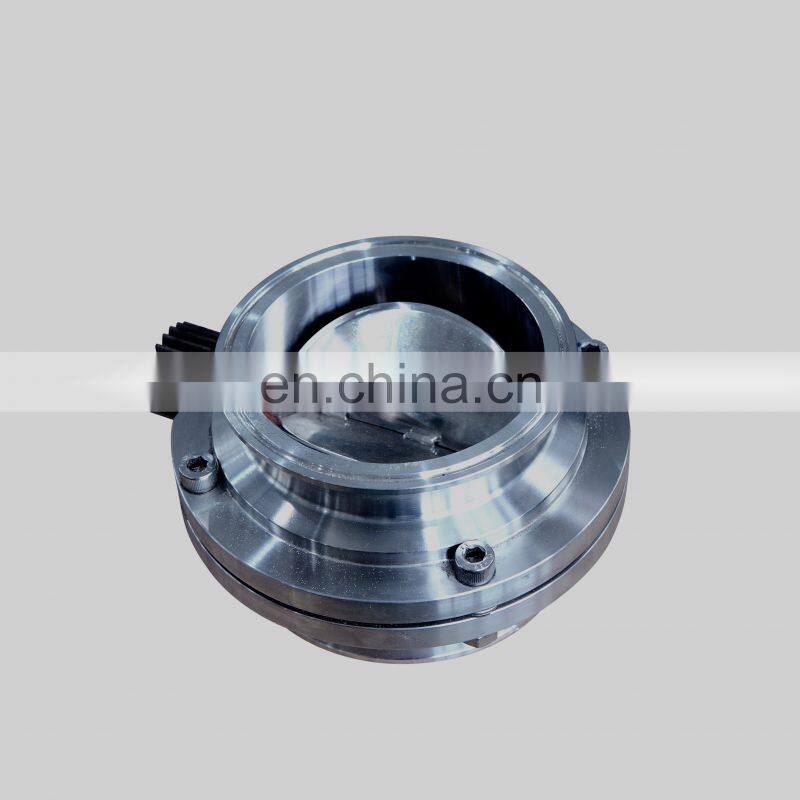

We are the first one in domestic industry to use 100DS high precision cam dividing box in NJP-1200Dautomatic capsule filling
machine (Input shaft) diameter 24CM (Output shaft) diameter 30CM Features: larger torque, better stability and longer service life

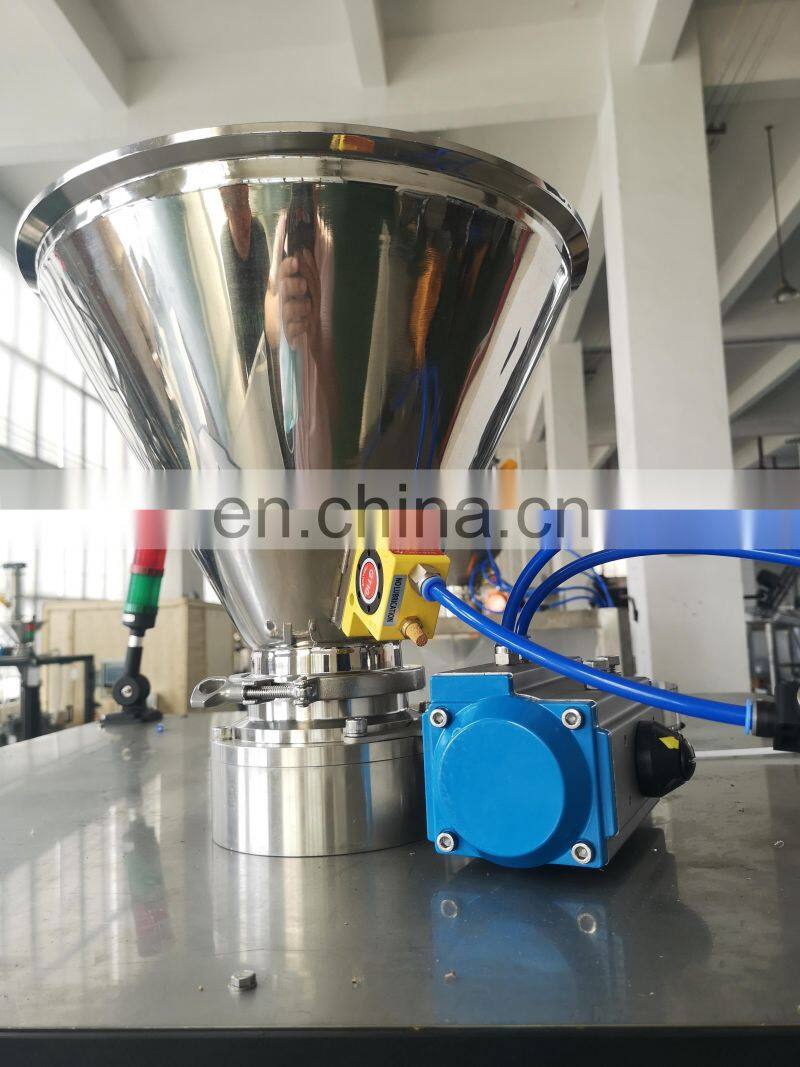

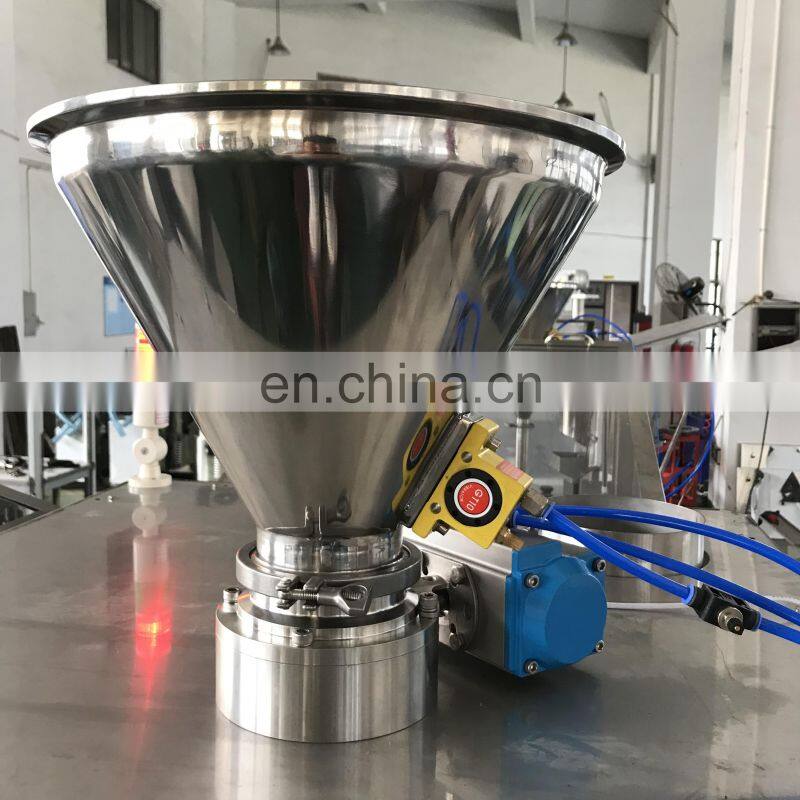

New powder hopper

Bottom of powder hopper

capsule hopper

Integrated powder aspirator

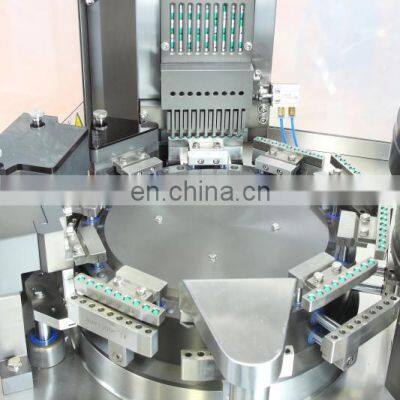

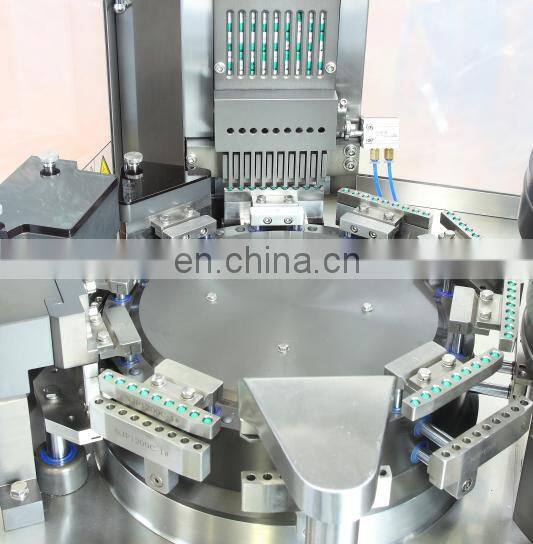

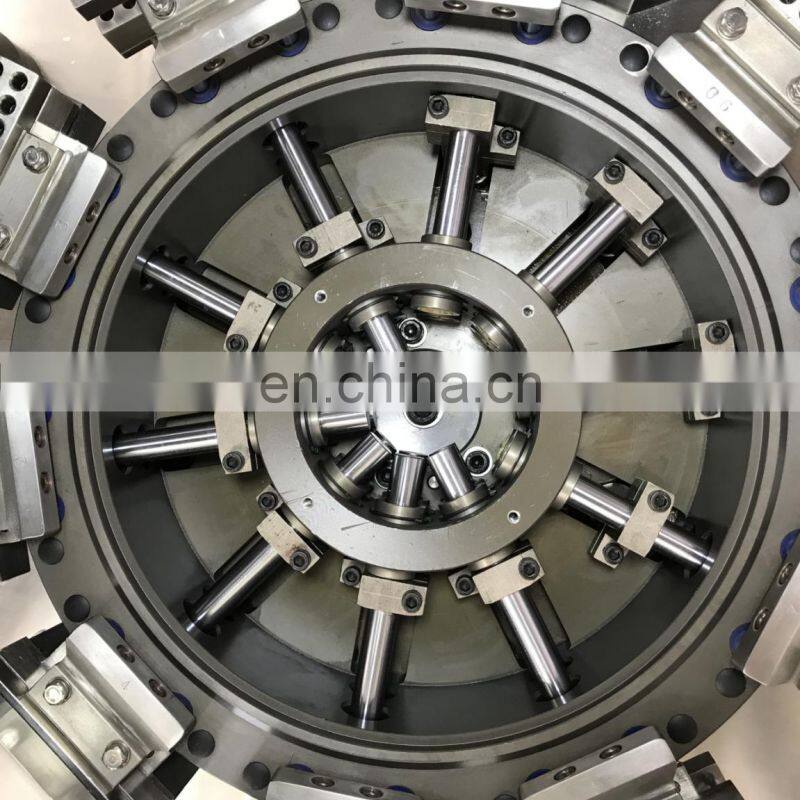

New turntable

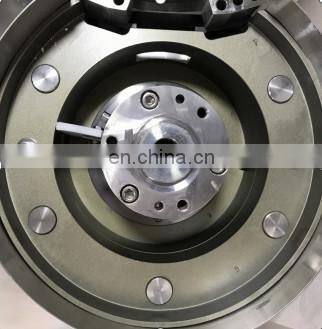

New turntable details

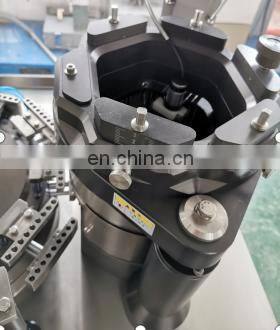

Drug filling unit

Base of filling station

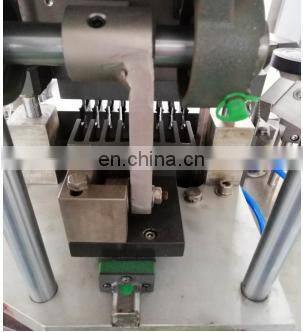

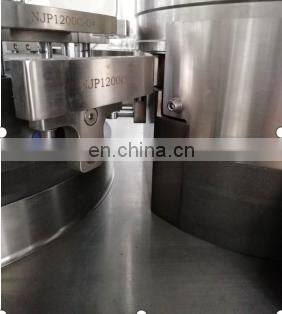

Capsule locking machine

Die hole cleaning device

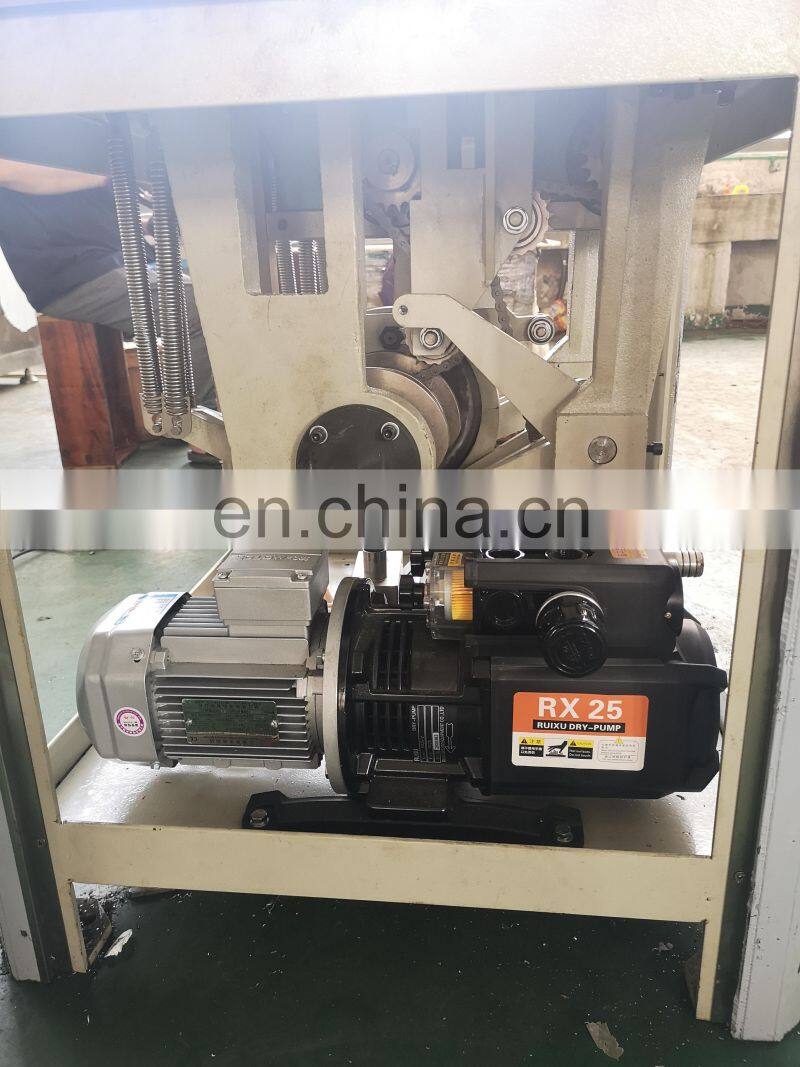

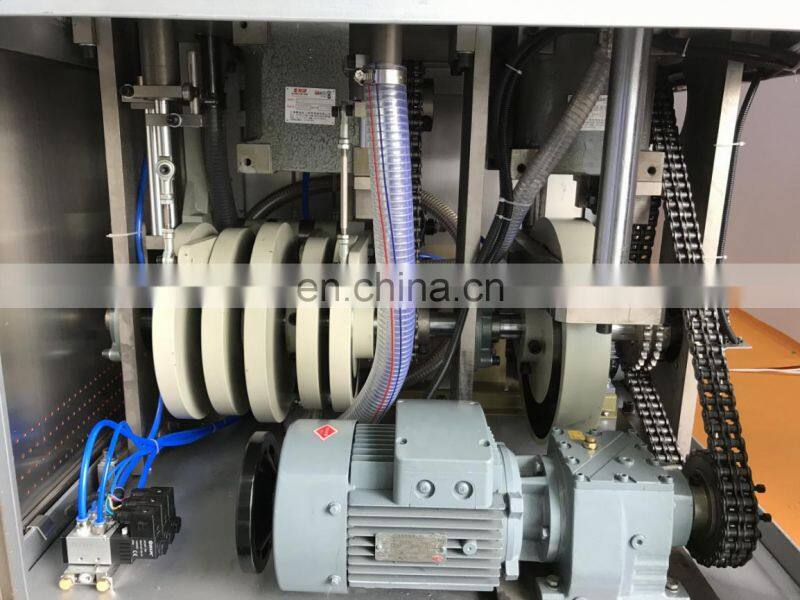

New transmission system

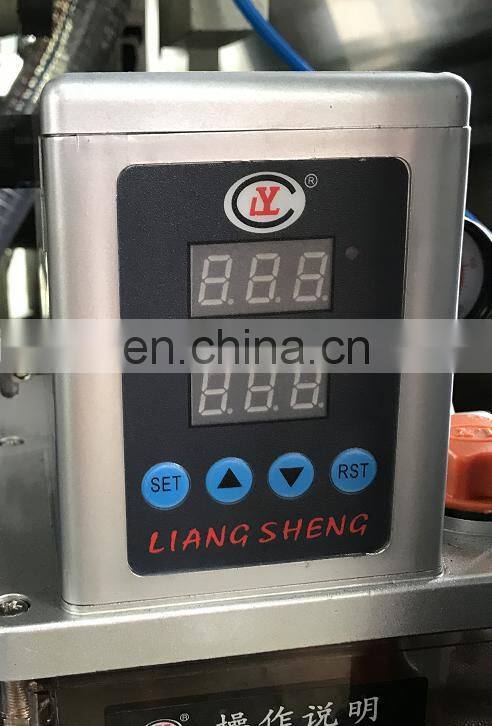

Automatic Fuel Supply System

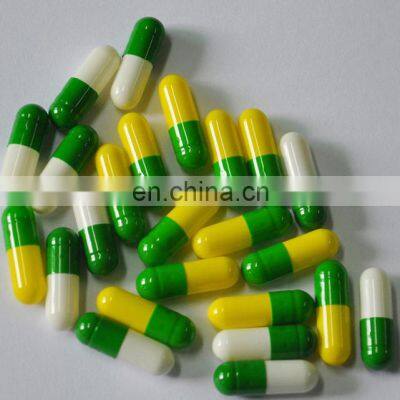

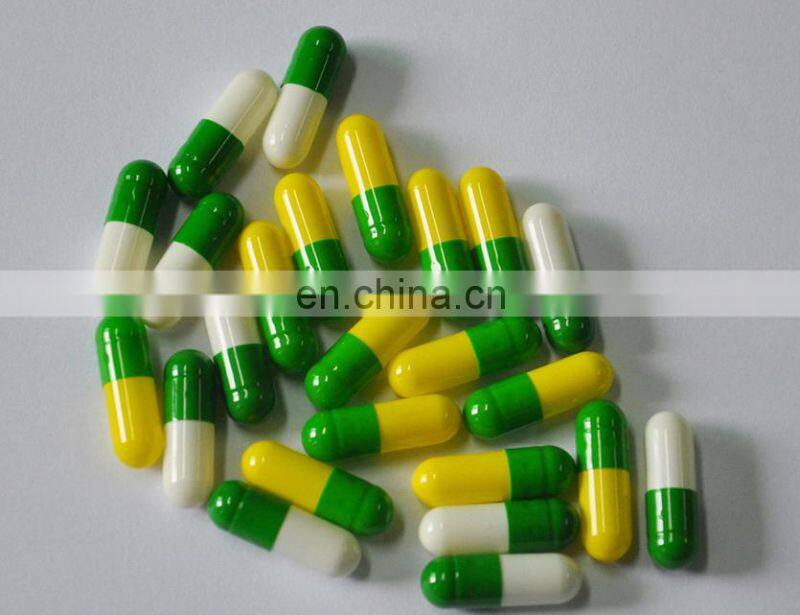

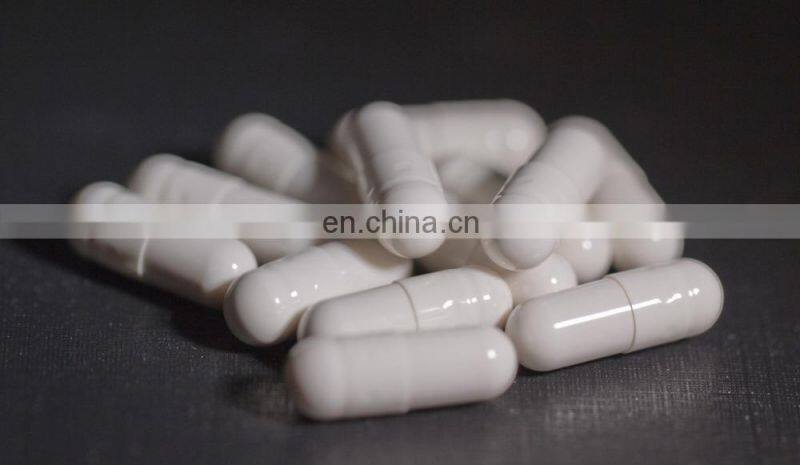

Samples of capsule filling machine :
Related products
Some samples

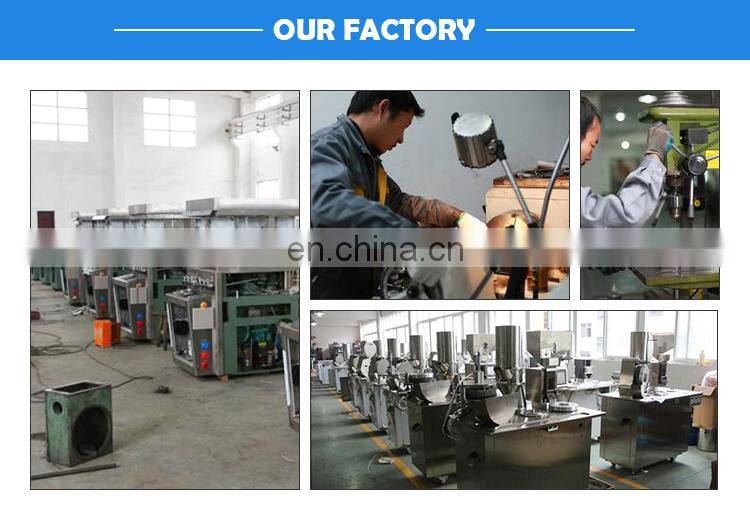

Company Profile
Shanghai Universal pharmaceutical machinery . is a professional manufacturer and supplier for pharmaceutical machinery, packing machinery and also production lines.

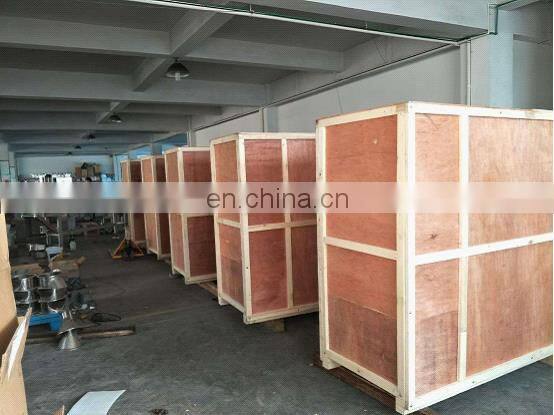

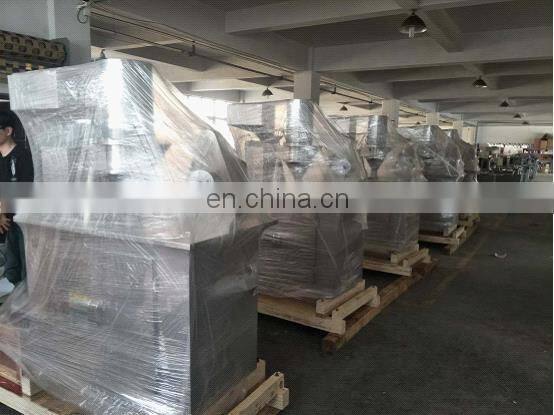

Packing and delivery
Recommend Products
Warranty
1.12 months Warranty of High Quality Fully Auto Capsule Filler Filling Machine.
2. Detail instruction and manual will be delivered with the machine.
3.Supply on line video and instruction
4.Send technicians to test the machine in customers' country if necessary.
5. Customers can send their technicians to learn in our factory.
