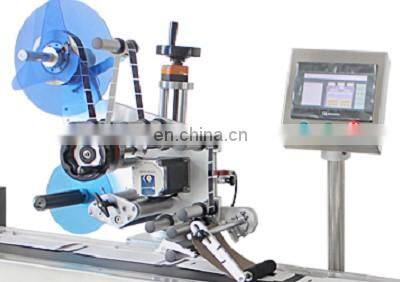

Sinoped Automatic Flat Top Sticker Labeling Machine for Carton Box

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

The carton sealing & labeling machine is specially used to label on the corners of carton's top surface & the side surface, and is used to warn not to open the cases. It is mainly used for the packaging of poker, electric products and medicine, and can also be used together with the flat labeling machine to have the continuous labeling, so ensure that the labeling of the sealing is complete. The machine can also be used together with the encasing machine.
For the small box labeling machine, the pasting is strong, and labels will not fall off. If labels are on the top surface, roller
is used to press, and if on the sides, brush is used to paste firmly. The labeling is beautiful. There is a top pressing
mechanism. The box feeding is stable, and the labeling effect is excellent. The labeling speed for poker package's corner gets to 180boxes/min.

1.HMI	Parameters can be displayed or controlled here.
2.Conveying device	Convey bags to the labeling station. After the labeling, bags are sent to the collecting station.
3.Collecting device	After the labeling, a certain amount of bags are collected here.
4.Motor	Supply power for the machine.
5.Electric control cabinet	It's the electric control center, and all controllers & the PLC are arranged here.
6.Regulating device	By the forward/ backward, the up/ down, the left/ down and the inclination adjusting
7.Labeling head	Adhesive-sticker labels are placed here, and then are sent out. It's the key part of the
8.Bags separating device	By the motor & the mechanical principles, piled cards can be separated homogeneously, and be conveyed to the feeder.

Detailed Images

This machine includes automatic card sorting machine (also called sorting machine), including automatic conveyor belt, which can automatically separate the products to a certain distance and send them to the labeling machine conveyor belt to automatically transport the products. (According to the needs of the product, the automatic receiving device can be selected to collect the products neatly and facilitate the workers to take away).
According to the characteristics of the product itself, the lifting platform + mechanical hand-feeding method can be used to prevent scratching products, or the suction type conveyor belt can be selected to prevent the light/thin product from being deflected during transportation.
The method of rolling is adopted, and the label is sent by the labeling head to the product during the conveying process, and the labeling and labeling are completed. Adjustable within the labeling range, the labeling head can be up and down, left and right, front and rear, and the tilt is adjustable, which is very convenient.

Operation process:

Put the product (automatic feeding of the product) -> product delivery -> labeling (automatic realization of the equipment) -> collect the labeled products.

Title goes here.

1. Roller self-adhesive label, inner core diameter 76mm, outer diameter 250mm;
2. The interval between the label and the label is 2~4mm, and the edge of the label bottom paper is 2~4mm;
3. The bottom paper of the label is made of the bottom paper of Glassine, and the bottom paper cannot be cut;
4, the label is arranged in a single row;
5.The direction of bidding corresponds to the direction of product delivery.

Specification

Technical parameters
Labeling accuracy	±1mm (excluding product, label error)
Labeling speed	20~100 pieces/minute (related to product and label size)
Applicable product size	customized according to the requirements of the purchaser
Applicable bag size	Length:unlimited, Width:<200mm
Applicable label size	label length: 6mm ~ 250mm
Applicable label size		Width (backing paper width): 20mm ~ 160mm
Overall size	about 2500mm × 700mm × 1400mmmm (length × width × height)
Applicable power supply	220V/50HZ

Company Profile

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group. We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, blister packing machines, capsule filling machines, cartoners . In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how. In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.

FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by
yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
