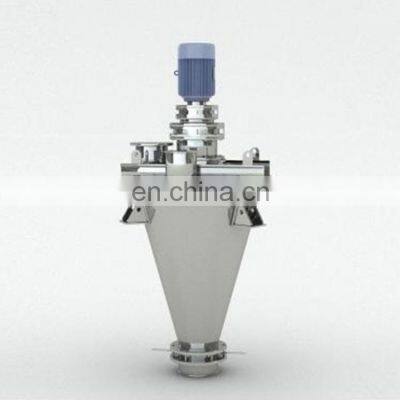

Special Double Helix Cone Mixer for Mass Production
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NJP1200 Automatic Capsule Fillers Machinery Fully Automatic 000 - 5 Pellet Granule Powder Capsule Filling MachineNegotiableMOQ: 1 -
Dry Milk Powder Food Pharmaceutical Mixing MachineryNegotiableMOQ: 1
-
Milk Dry Powder Granule Mixing MachineNegotiableMOQ: 1
-
Wholesale Price Emulsion Granule MixerNegotiableMOQ: 1
-
VH5 Small Mini Lab Use Pharmaceutical Use Medical Use Nutrution Supplement Health Care Powder Mixer Power Mixing MachineNegotiableMOQ: 1
Product Description
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws.The effected motions include:
1.The revolution of the screw along the wall making the material conduct a circumferential motion;
2.The rotation of the screw making the material rise along the screw from the cone bottom;
3.The compound motion of the rotation and revolution of the screws making partial,material can be absorbed into the screw cylindroid meanwhile,under the action of centrifugal force,the partial material in the screw cylindroid discharges radially.
4.The rised material drops under its sole weight.the four kinds of motions effect convection,shearing,diffusion in the cone ,thus quick and even mixing can be achieved.
Type |
Total
volume(m³)
|
Load
factor
|
Equipped
power(Kw)
|
Operating
conditions
|
dimensions
(mm)
|
Weight
(kg)
|
DSH-0.1 |
0.1 |
≤0.6 |
1.5 |
Normal temperature pressure powder dust seal |
1569φ702 |
250 |
DSH-0.3 |
0.3 |
≤0.6 |
2.2 |
Normal temperature pressure powder dust seal |
1929φ920 |
550 |
DSH-0.5 |
0.5 |
≤0.6 |
3 |
Normal temperature pressure powder dust seal |
2322φ1124 |
660 |
DSH-1.0 |
1.0 |
≤0.6 |
4 |
Normal temperature pressure powder dust seal |
2869φ1480 |
1200 |
DSH-1.5 |
1.5 |
≤0.6 |
5.5 |
Normal temperature pressure powder dust seal |
3140φ1633 |
1350 |
DSH-2.0 |
2.0 |
≤0.6 |
5.5 |
Normal temperature pressure powder dust seal |
3489φ1816 |
1500 |
DSH-3.0 |
3.0 |
≤0.6 |
7.5 |
Normal temperature pressure powder dust seal |
3747φ2210 |
2300 |
DSH-4.0 |
4.0 |
≤0.6 |
11 |
Normal temperature pressure powder dust seal |
4362φ2280 |
2520 |
DSH-5.0 |
5.0 |
≤0.6 |
15 |
Normal temperature pressure powder dust seal |
4576φ2402 |
3000 |
DSH-6.0 |
6.0 |
≤0.6 |
15 |
Normal temperature pressure powder dust seal |
4900φ2582 |
3150 |
DSH-8.0 |
8.0 |
≤0.6 |
18.5 |
Normal temperature pressure powder dust seal |
5405φ2805 |
4500 |
DSH-10 |
10 |
≤0.6 |
20.7 |
Normal temperature pressure powder dust seal |
5795φ3018 |
5500 |
DSH-15 |
15 |
≤0.6 |
24.2 |
Normal temperature pressure powder dust seal |
6475φ3450 |
6600 |
DSH-20 |
20 |
≤0.6 |
41 |
Normal temperature pressure powder dust seal |
7535φ3805 |
7000 |
DSH-25 |
25 |
≤0.6 |
41 |
Normal temperature pressure powder dust seal |
7995φ4078 |
8500 |
DSH-30 |
30 |
≤0.6 |
52.5 |
Normal temperature pressure powder dust seal |
8385φ4330 |
9200 |
