Fine Ampoule Plastic Bottle Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality Softgel Capsule Encapsulation Capsule Filling Machine PriceNegotiableMOQ: 1 -
Soft Gel Encapsulation Pharmaceutical Automatic Soft Gel Gelatin Capsule Encapsulation Filling MachineNegotiableMOQ: 1
-
Encapsulation Hard Gel Capsule Making Machine Factory Price Small Softgel Machine Latest PopularNegotiableMOQ: 1
-
Factory Good Price Fish Coconut Oil Softgel / Gel Capsule Making Filling Machine Softgel Encapsulation MachineNegotiableMOQ: 1
-
Automatic Softgel Encapsulation Machine Line/Soft Gelatin Capsule Machine For SaleNegotiableMOQ: 1
Product Description

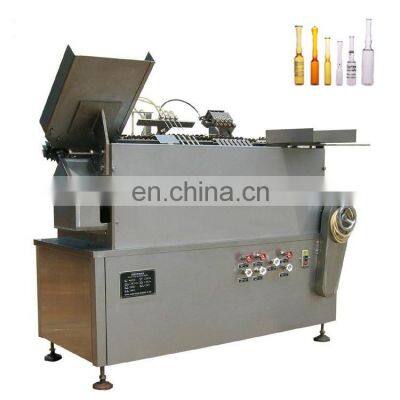

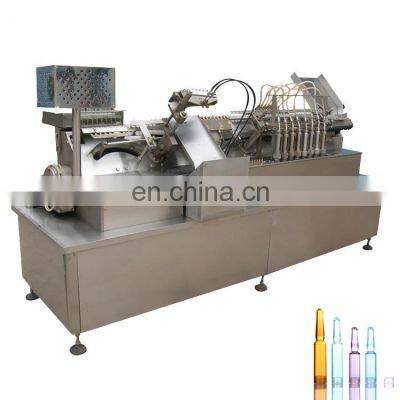

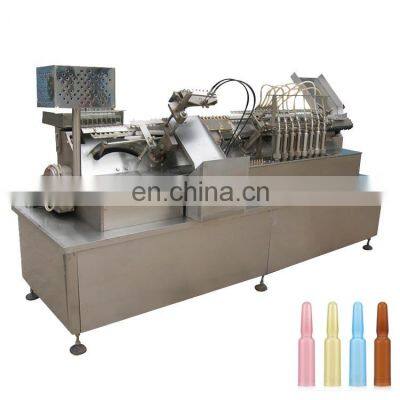

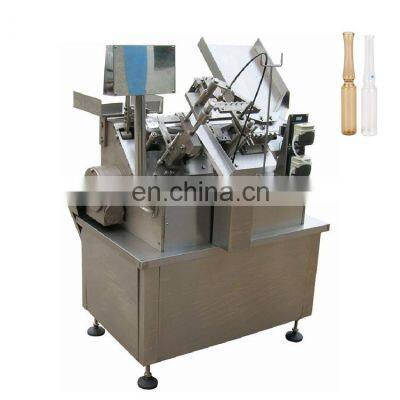

The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .It adopts therectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy brokenampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously.
Main Features:
1.The ampoule bottle's feeding can be stopped while the machine is not stopped.
2.The filling can be stopped mechanically when lack of ampoule bottle.
3.There is the adjusting and displaying function for the rotating speed.
4.There are many filling heads in the filling stations.
5.Besides liquid, compressed air or nitrogen can be simultaneously filled from the front and the back.
6.Ampoule bottles' moving in/out is smooth and steady during the production.
Technical Parameters | ||||||||

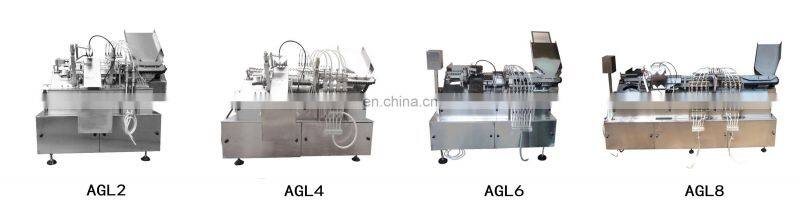

Model | AGL2 | AGL4 | AGL6 | AGL8 | ||||
Filling Needles | 2 | 4 | 6 | 8 | ||||
Specification (ml) | 1-5/5-10 | |||||||
Output (Pieces/min) | 45-60 | 90-130 | 135-200 | 180-260 | ||||
Power (Kw) | 0.37 | 0.55 | 0.75-1.5 | |||||
Consumption of oxygen (Kg/h) | 7 | 7 | 10 | 12 | ||||
External dimensions (mm) | 1100*720*1500 | 1540*980*1500 | 1980*1000*1500 | 2400*1000*1500 | ||||
Weight (Kg) | 250 | 330 | 470 | 680 | ||||
Power supply | 220V/380V;50HZ | |||||||
Every factory machine is precisely debugged by engineers to ensure that it is ready for use after delivery
Detailed Images
We can provide a series of detailed materials for mask production pictures, production process videos, drawings, etc.
Professional we can provide sterilizers and packaging machines. Can meet your mass production.
We can customize high, medium and low three levels of equipment according to customer requirements
The price is different because of different customization requirements
Export Market Distribution:
Other Products
Sample
You can click here for more information about this product!!!
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
