Automatic Noodle Making Machine Noodle Maker Machine for Vegetable Noodle Factory Price1.Automatic Noodle Making Machine Product introduction:

This noodle making machine is widely used to make rice, wheat and other kinds of noodles. It can make different shape noodle by changing the molds. Built from stainless steel and galvanized iron which ensures a trouble free services. Noodles making machine is designed according to the construction feature of fresh noodle. Vacuum flour mix improves the quality of dough. Curing system is designed as the "first in, first out" principle. Rollers with ripple improves the gluten net structure which makes the noodle more delicious. It is suitable for fresh and fine dried noodles manufacturers.

Features Noodle Making Machine:

1.The noodle making machine can make many kinds of noodles, such as pancake, roundness.

2.Small volume, compact structure, simple operation, convenient maintenance.

3.Flexible operation, stable performance, high production efficiency.

4.It is absolutely the first choice of the noodle making machine.

Noodle Making Machine Working Principe:

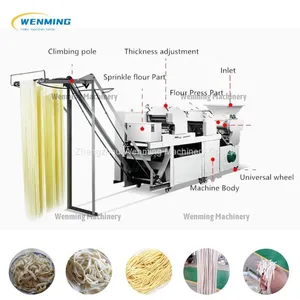

By the power, the retarding mechanism, through the sprocket chain unit is passed to each roll straight knife section, on the pole.putting the mixed surface into the surface bucket, use the conveyor to send main roll forming to wrapper, and solid, sequential analogy, rolling solid, rolling thin, calendering into the cutting knife after the panel cut into noodles, then to the pole automatic.

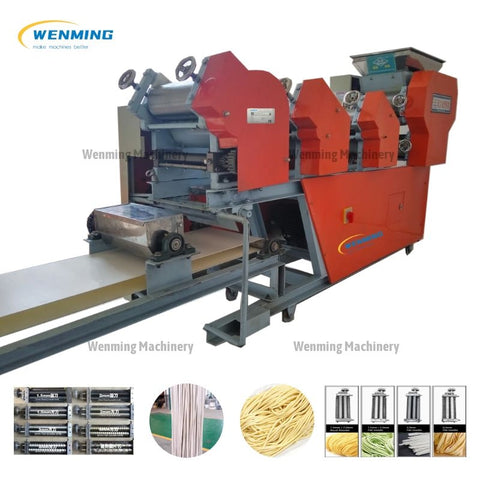

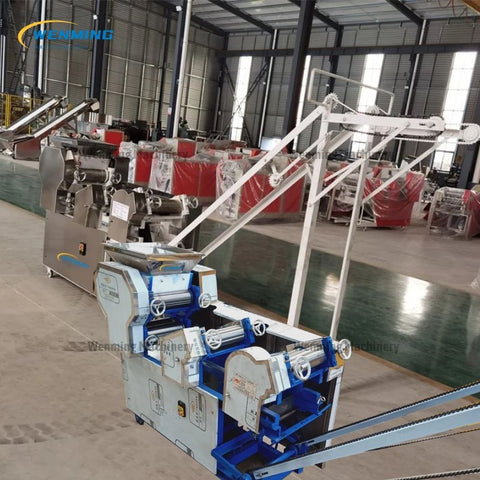

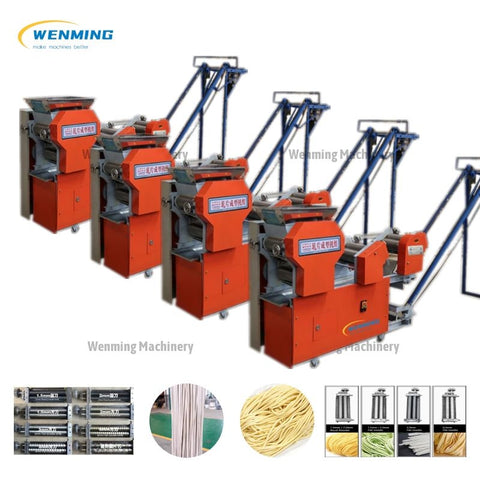

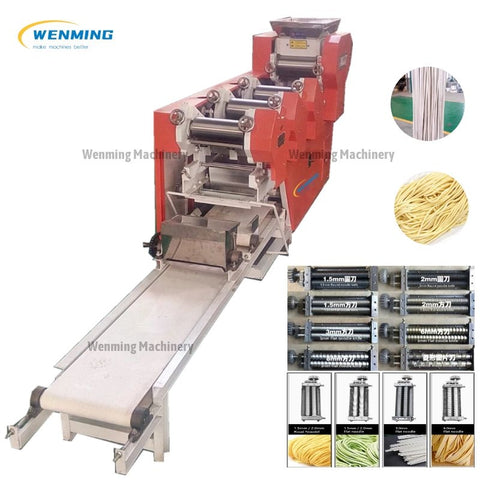

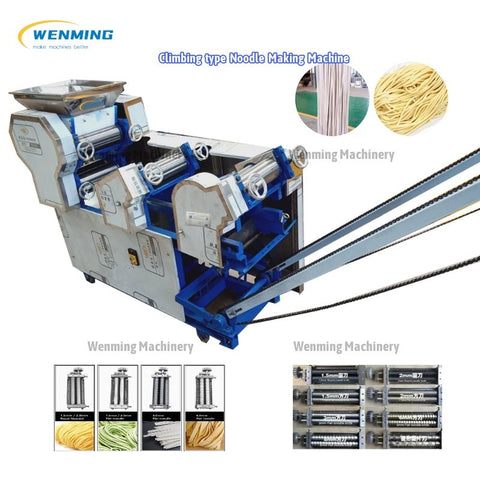

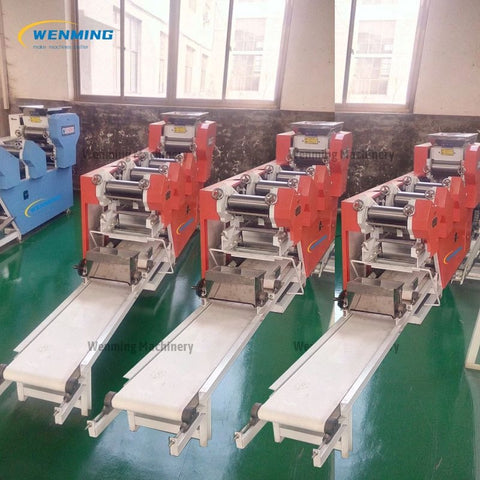

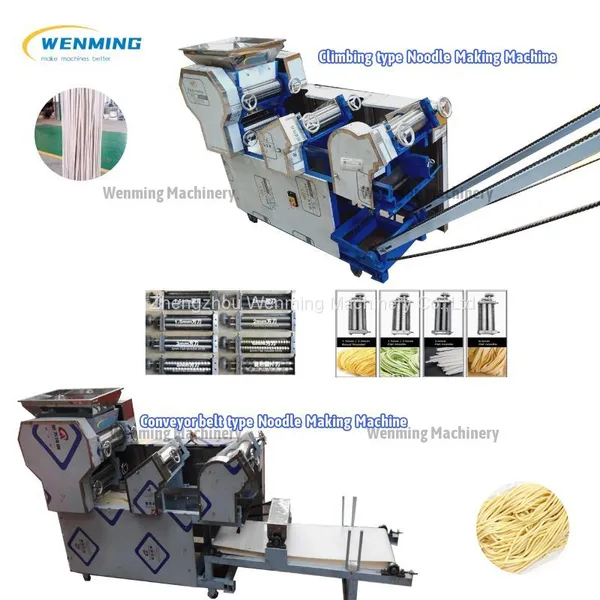

The Noodle Making Machine Out let Method have two options： Climbing pole collecting Noodle Making Machine Convery belt collecting Noodle Making Machine2.Automatic Noodle Making Machine Technical parameters

Model	WM-MTJ250-5	WM-MTJ260-5	WM-MTJ300-5
Rollers	5	5	5
Capacity	150-170kg/h	170-200kg/h	200-230kg/h
Power	3kw	3kw	3kw
Weight	380kg	510kg	580kg
Main roller size	96*250mm	140*260mm	140*300mm
Dimension	1600*570*1225mm	1600*580*1250mm	1800*530*1370mm



Model	WM-MTJ250-6	WM-MTJ260-6	WM-MTJ300-6	WM-MTJ330-6	WM-MTJ360-6
Rollers	6	6	6	6	6
Capacity	180-210kg/h	240-260kg/h	240-280kg/h	280-300kg/h	260-330kg/h
Power	4kw	4kw	4kw	4kw	5.5kw
Weight	520kg	620kg	820kg	900kg	960kg
Main roller size	96*250mm	140*260mm	140*300mm	140*330mm	140*360mm
Dimension	2000*650*1225mm	2300*600*1370mm	2300*650*1370mm	2300*633*1370mm	2300*660*1370mm



Model	WM-MTJ300-7	WM-MTJ330-7	WM-MTJ360-7
Rollers	7	7	7
Capacity	260-300kg/h	280-320kg/h	300-360kg/h
Power	5.5kw	5.5kw	5.5kw
Weight	1000kg	1200kg	1350kg
Main roller size	140*300mm	140*330mm	140*360mm
Dimension	3400*720*1350mm	3000*680*1420mm	3000*760*1500mm

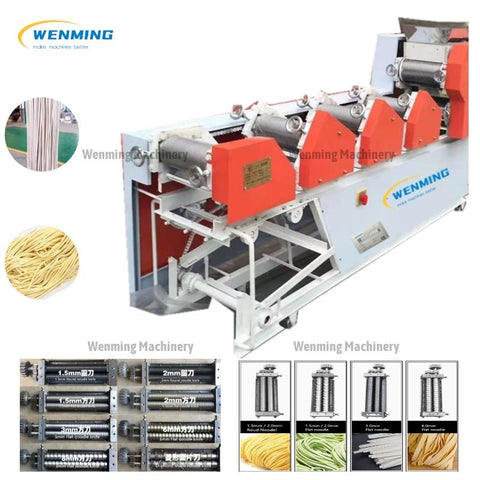

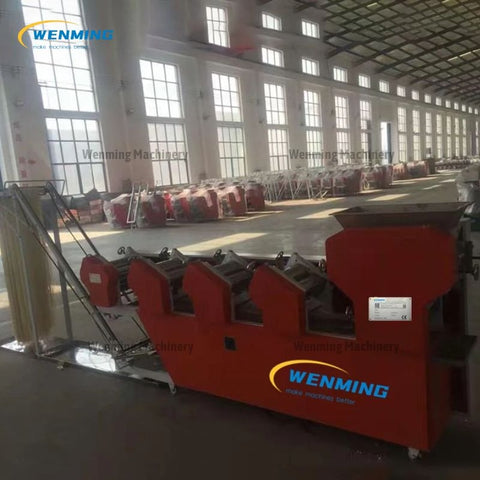

3.Automatic Noodle Making Machine Videos & Pictures :

•
