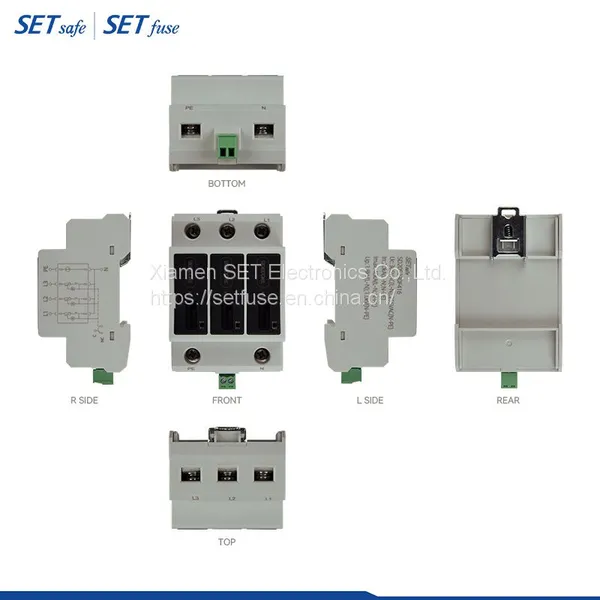

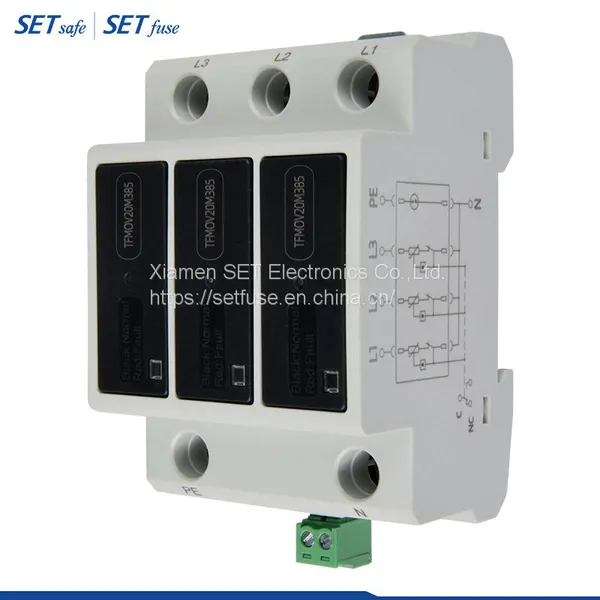

SD20s 3+1 Series DIN Rail Surge Protective Device Surge Protector SPD with RoHS & Reach Compliant

Xiamen SET Electronics Co., Ltd.

● For Three-Phase System

● MOV Module Tripping Ability: 800 V, 100 A

● High Environmental Adaptability

● Compact Structure with Height Only 49 mm

● With Remote Signaling and Failure Indicator

● RoHS & REACH Compliant

Din-Rail

Screw

● AC / DC Power System

● New Energy

● Residential Building

● Telecommunications

● Internet Data Center (IDC)

● Distribution System

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

CQC (China):

Standards: GB/T 18802.11

File NO.: Ongoing

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Agency (Safety Certificate) Annual, Quarterly Audits.

Quality Management System (TUV Approved and issued certificate).

SETsafe | SETfuse

SETsafe

SPD SD20S 3+1_SETsafe & SETfuse.pdf

Din-rail Surge Protective Device

Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.

SD20S series, T2
