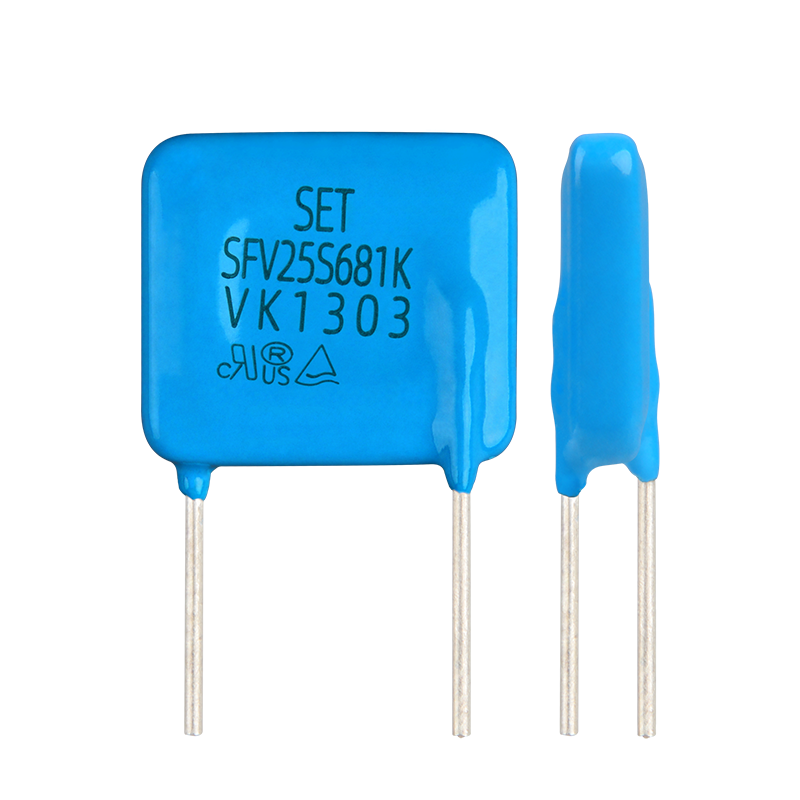

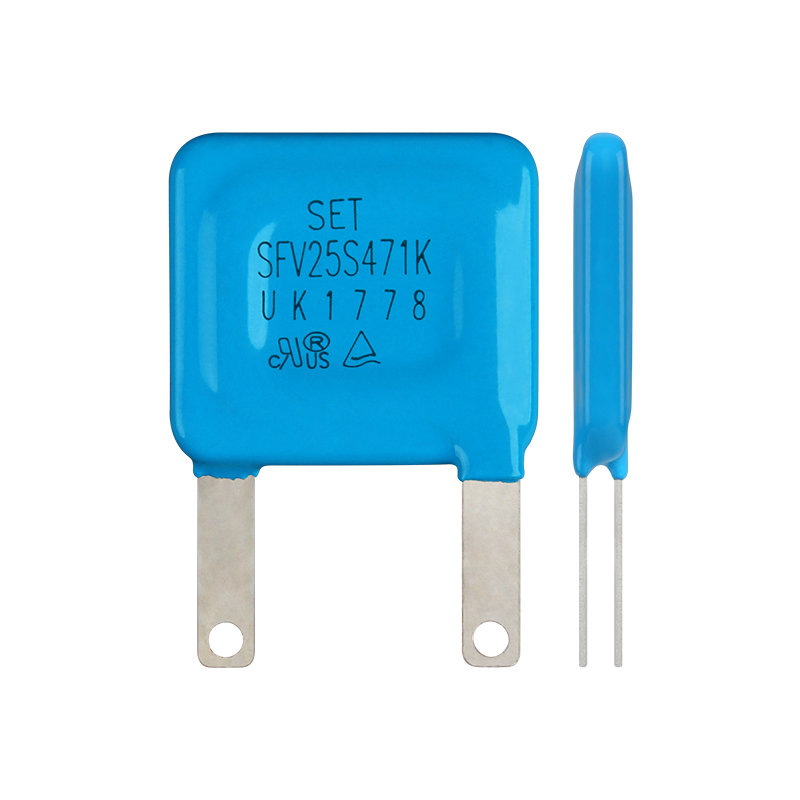

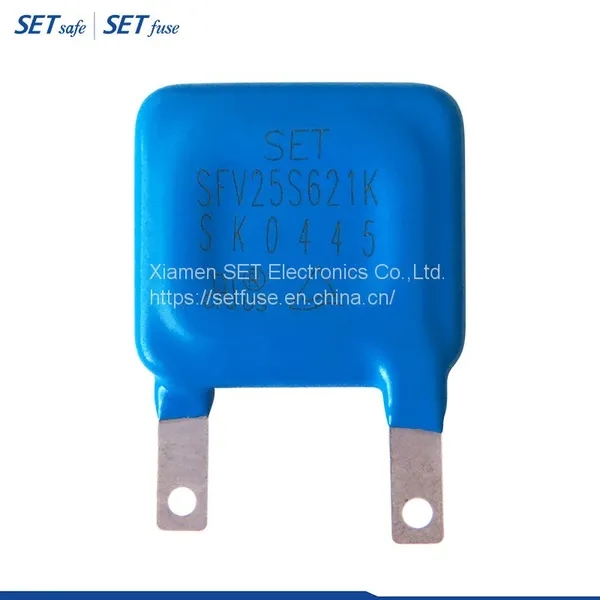

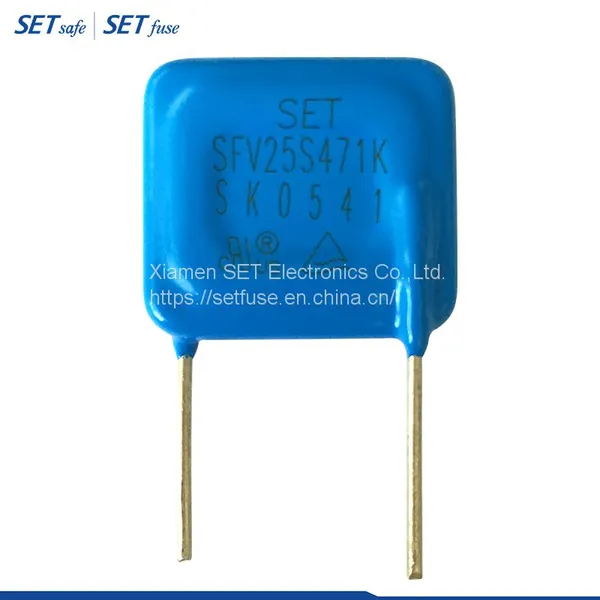

SFV25S series
Max. Continuous a.c. Voltage (vac): 14 ~ 750 V
Max. Peak Current (Imax): 3 ~ 25 kA
Upper Category Temp. (UCT): 85 °C
● Epoxy Resin Coating
● Silicone Resin Coating
● Low Leakage Current
● Bidirectional and Symmetrical V/I Characteristics
● Operating Temperature Range: Low Temperature: -40 °C, High Temperature: 85 °C / 105 °C
● RoHS & REACH Compliant
Through Hole
Radial
● Power Supplies
● Home Electrical Appliances
● Industrial Devices
● Surge Protectors
● Telecom Devices
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Agency (Safety Certificate) Annual, Quarterly Audits.
Quality Management System (TUV Approved and issued certificate).
SETsafe | SETfuse
SET
MOV 25S_SETsafe & SETfuse.pdf
Metal Oxide Varistor (MOV) as one nonlinear resistance element is mainly made of zinc oxide (ZnO), which has very high surge capacity and big nonlinear coefficient. Below the threshold voltage, its resistance is very high, nearly no current flows through, but above the threshold voltage, the resistance reduces sharply, huge current can be discharged. Due to this characteristic, varistor as a protection component in electronic and electrical equipment can absorb abnormal over-voltage and lightning surge.
SETsafe | SETfuse varistor is with High Surge Current Density, Low Clamping Voltage, and Good Surge Capacity. It can also be customized as required.
SFV25S series
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
UL (America):
Standards: UL 1449
File NO.: E322662
cUL (Canada):
Standards: CSA C22.2 NO.269.5-17
File NO.: E322662
TUV (Germany):
Standards: EN 61051-1:2008 / IEC 61051-1:2007 / IEC 61051-2: 1991+A1 / IEC 61051-2-2:1991 / Annex Q of IEC 60950-1:2005+A1+A2
File NO.: J50401611
