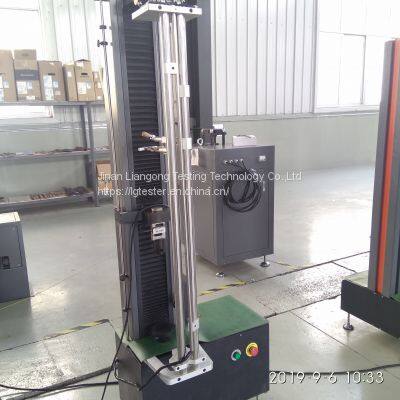

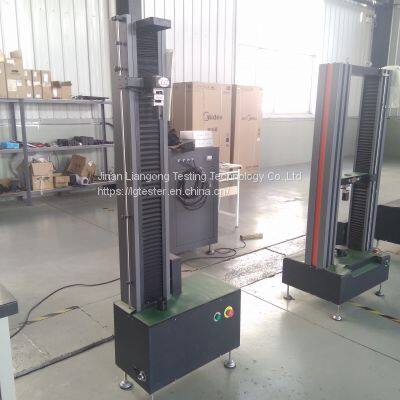

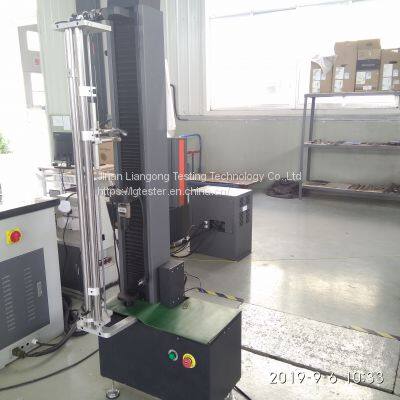

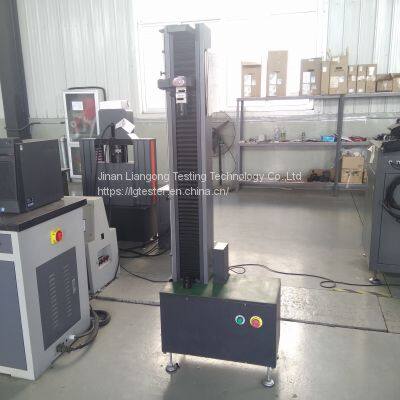

CMT-5L Tensile Testing Machine for Knitted Strip Tensile Test
US$ 5000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Liangong
Place of Origin:
China
Model Number:
CMT-5L
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Related Products
-
Electronic Universal Testing Machine CMT-5L of Computer ControlUS$ 5000 - 9000MOQ: 1 Set -
China Factory Directly Supply 200kN 300kN UTM Electronic Tensile Testing Machine CMT-200/300US$ 20000 - 30000MOQ: 1 Set
-
200kN Electronic Power Metal Material Computer Control Universal Tensile Compression Bending and Shearing Testing MachineUS$ 20000 - 30000MOQ: 1 Set
-
UTM / TTM / Tensile Test Equipment / Tensile Testing Machine Price 30 Ton CMT-300US$ 20000 - 30000MOQ: 1 Set
-
Materials Physicals Testing Equipment Usage Fastener Tensile Compression Bending Tester CMT-200/300US$ 20000 - 30000MOQ: 1 Set
Brand Name
Liangong
Place of Origin
China
Model Number
CMT-5L
Power
Electronic
Usage
Tensile Testing Machine
Application of equipment
This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material).
It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.
CMT Computer control tensile testing Series
| Model | CMT-01L. 02L. 05L. 1L. 2L. 5L | CMT-10. 20. 30. 50 | CMT-100 | CMT-200. 300 |
| Measurement parameters | ||||
| Max.Test force (kN) | 0.1 0.2 0.5 1 2 5 | 10. 20. 30. 50 | 100 | 200. 300 |
| Accuracy class | 0.5 Class | |||
| Measuring range of test force | 0.2%~100%FS (full scale) | |||
| Indicating error of test force | within ±0.5% of indicating value | |||
| Resolution of test force | ±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process | |||
| Deformation measuring range | 0.2%~100%FS | |||
| Deformation indicating error | within ±0.5% of indicating value | |||
| Resolution of deformation | 1/200000 of maximum deformation, up to 1/300000 | |||
| Large deformation measurement range | 10-800mm | |||
| Large deformation indicating error | within ±1% of indicating value | |||
Large deformation Resolution | 0.008mm | |||
| Displacement indicating error | within ±0.5% of indicating value | |||
| Resolution of displacement | 0.025μm | |||
| Control parameters | ||||
| Tuning range of force control rate | 0.005~5%FS/s | |||
| Control accuracy of force control rate | When rate is less than 0.05%FS/s, within ±2% of setting value | |||
| When rate is no less than 0.05%FS/s, within ±0.5% of setting value | ||||
| Tuning range of resolution rate | 0.2~100%FS | |||
| Control accuracy of resolution rate | When rate is less than 0.05%FS/s, within ±2% of setting value | |||
| When rate is no less than 0.05%FS/s, within ±0.5% of setting value | ||||
| Tuning range of replacement rate | 0.001~500mm/min | |||
| Control accuracy of movement rate | When rate is less than 0.5mm/min, within ±1% of setting value | |||
| When rate is no less than 0.5mm/min, within ±0.2% of setting value | ||||
| Constant force,constant strain(deformation),constant displacement control range | 0.2~100%FS | |||
| Other parameters | ||||
| Effective tensile stroke | 800mm | 700mm | 700mm | 600mm |
| Effective compression stroke | 800mm | 700mm | 700mm | 600mm |
| Effective width space | / | 400mm | 550mm | |
| Power | 220V,50Hz 0.5kW~0.75kW | 220V,50Hz 0.75kW~1kW | 380V,50Hz 2kW~5kW | |
| Work environment | Room temperature ~ +35°C Relative humidity less than 80% | |||
| Host size (mm) | 650*330*1730 | 760*460*1900 | 1050*750*2100 | 1050*900*2400 |
| Weight | 150kg | 350kg | 1000kg | 1500kg |
| Remark | 1.Equipped fixture can be based on users needs or customer made 2.Alternative transducer is available to extend the measuring range 3.The tensile space can be heighten on users requirement | |||
