OCIMF Standards Petal Type Marine Breakaway Coupling Manufacturer For Prevent Oil Spills

Name: OCIMF Standards Petal Type Marine Breakaway Coupling Manufacturer For Prevent Oil Spills
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Marine Breakaway Coupling

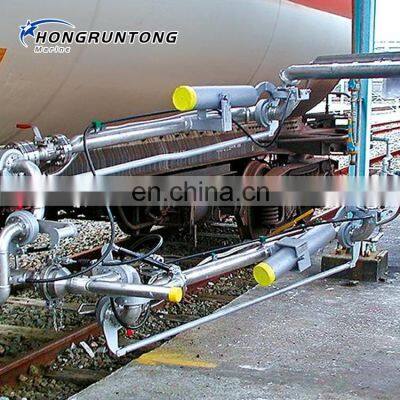

Hongruntong Marine Breakaway Coupling, suitable for bottom loading and unloading trucks with inflammable and explosive media. Prevent trucks, rail cars, and ships from accidentally driving away when the loading arms are not separated and causing leakage accidents. At the same time, it prevents damage to the equipment of the vehicle, ship and loading arm, so that when the marine breakaway coupling is unexpectedly pulled by external force, disconnect the loading arm from the vehicle, and make the media at both ends be blocked by the marine breakaway coupling. Leak out. And it's easy to recover afterwards. Marine Breakaway Coupling: Suitable for use when loading and unloading fluids on ocean and river trough ships.

Product Description

Specification

Model Laying	Nominal Diameter	Rate of Flow	Flange Standard	Structural Style	Applicable Medium
HM-MB125	DN125	320 m³/h	HG/T20592-2009 HG/T20615-2009	_	Liquid nitrogen, liquid oxygen, LNG, CNG, LPG, liquid ammonia, ethylene, carbon dioxide, liquid chlorine, liquid argon, gasoline, diesel, benzene, methane, methanol, crude oil, etc.
HM-MB150	DN150	500 m³/h	HG/T20592-2009 HG/T20615-2009	Flap
HM-MB200	DN200	800 m³/h	HG/T20592-2009 HG/T20615-2009	Flap
HM-MB250	DN250	1300 m³/h	HG/T20592-2009 HG/T20615-2009	Flap
HM-MB300	DN300	2000 m³/h	HG/T20592-2009 HG/T20615-2009	Flap
HM-MB350	DN350	2600 m³/h	HG/T20592-2009 HG/T20615-2009	Flap
HM-MB400	DN400	3200 m³/h	HG/T20592-2009 HG/T20615-2009	Flap
Note: Working Pressure:* 4.0mPa, Sealing Material: PTFE, Temperature Range: -196°C to +250°C, Body Material: SS304-SS316L, Opening Mode: Pulling-rope, breakaway bolt.
