Product Description

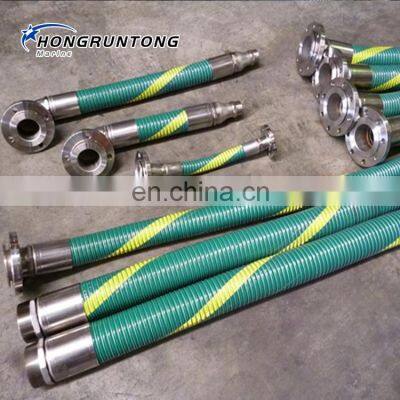

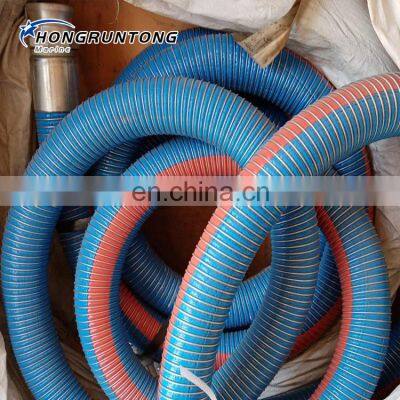

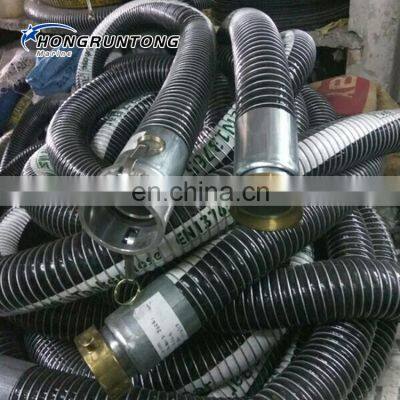

Composite Hose

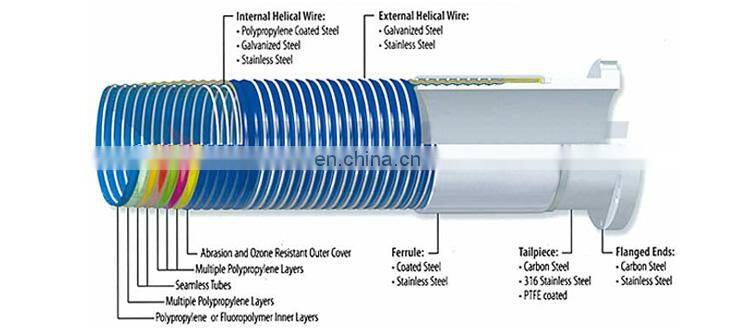

Exclusive construction allows for excellent flexibility. Rugged cover is resistant to oil, cuts, scuffs and ozone attack. The Hongruntong composite hose is designed with the combination of multilayer of different polymers and spirals in stainless steel 316L with the latest manufacturing technology that makes it an excellent and safe solution to support cryogenic products at extreme temperatures up to -196ºC and working pressures up to 10,5Bar.In typical applications such as liquefied natural gas discharge loading both on trucks, wagons and even Marine applications. Included bunkering operations ship to ship.
Product Description
Specification
Model | Dimensions | Working Pressure | Safety Factor | Bending Radius | Weight | Length | ||||||||||
[mm] | [inch] | [bar] | [psi] | [kg] | [m] | |||||||||||
HM-CH20 | 20 | 3/4" | 16 | 230 | 8:1 | 80 | 0.8 | 40 | ||||||||
HM-CH25 | 25 | 1" | 16 | 230 | 8:1 | 100 | 1.0 | 40 | ||||||||
HM-CH32 | 32 | 11/4" | 16 | 230 | 8:1 | 125 | 1.3 | 40 | ||||||||
HM-CH40 | 40 | 11/2" | 16 | 230 | 8:1 | 140 | 1.5 | 40 | ||||||||
HM-CH50
| 50 | 2" | 16 | 230 | 8:1 | 180 | 2.5 | 40 | ||||||||
HM-CH65 | 65 | 21/2" | 16 | 230 | 8:1 | 200 | 3.3 | 40 | ||||||||
HM-CH80 | 80 | 3" | 16 | 230 | 8:1 | 260 | 4.0 | 40 | ||||||||
HM-CH100
| 100 | 4" | 16 | 230 | 8:1 | 380 | 6.8 | 40 | ||||||||
HM-CH125 | 125 | 5" | 16 | 230 | 8:1 | 440 | 9.2 | 40 | ||||||||
HM-CH150 | 150 | 6" | 16 | 230 | 8:1 | 500 | 13.2 | 40 | ||||||||
HM-CH200 | 200 | 8" | 16 | 230 | 8:1 | 750 | 18.0 | 40 | ||||||||
HM-CH250
| 250 | 10" | 16 | 230 | 8:1 | 900 | 26.0 | 25 | ||||||||
*Note: Various sizes can be customized according to the requirements. | ||||||||||||||||
