BV Certificate Customized ISO Standard Anchor Maker Pick-up Buoy Mooring At Sea

Name: BV Certificate Customized ISO Standard Anchor Maker Pick-up Buoy Mooring At Sea
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

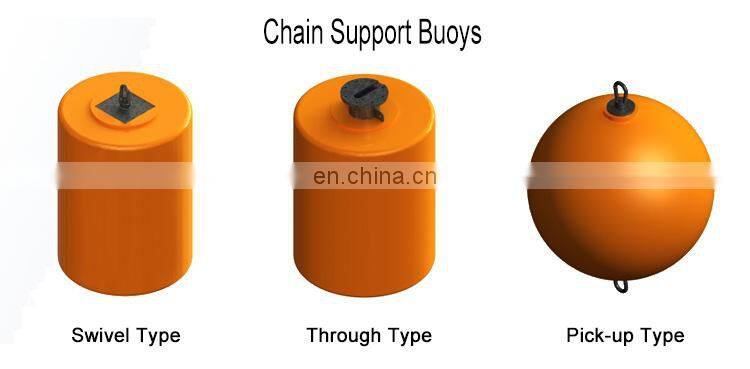

Chain Support Buoys

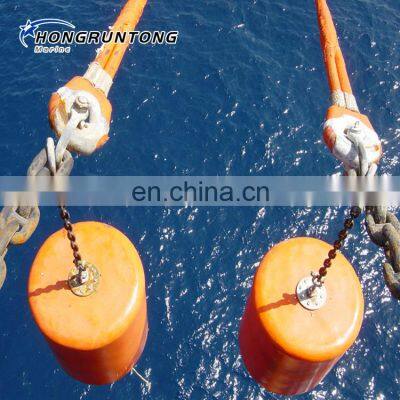

When the berth is unoccupied, each chafe chain may be supported by flotation devices. Hongruntong Marine offers a range of chain support buoys with a typical reserve buoyancy of 900-5000kg, in addition, our flexible manufacturing process allows us to produce products to suit our customers exact buoyancy requirements. The buoys can be supplied with swivel eyes top and bottom for connection by a short length of chain to the end link of the chafe chain, adjacent to the hawser. HONGRUNTONG-CHAIN SUPPORTING BUOY have been designed to withstand the severe operating conditions associated with offshore operations.

Product Description

Specification

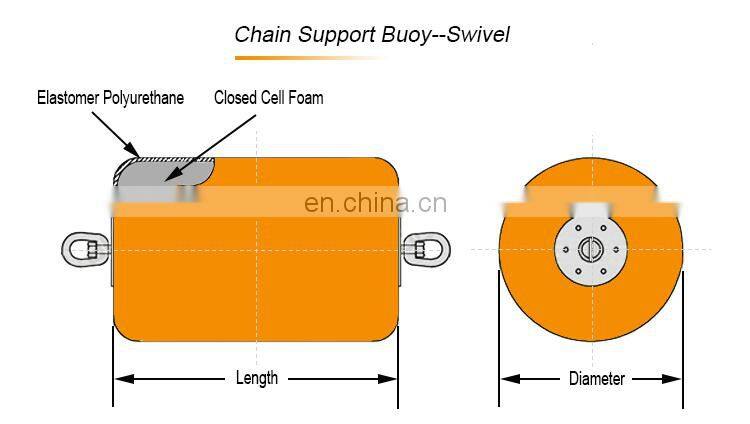

Model	Buoyancy	Diameter	Length	Weight
Swivel	[kg]	[mm]	[mm]	[kg]
HM-BS1000	1,000	1,080	1,550	375
HM-BS1250	1,250	1,160	1,550	380
HM-BS1500	1,500	1,130	2,000	445
HM-BS1700	1,700	1,180	2,000	455
HM-BS1750	1,750	1,190	2,000	460
HM-BS1850	1,850	1,230	2,000	470
HM-BS2000	2,000	1,290	2,000	490
HM-BS2250	2,250	1,340	2,000	500
HM-BS2500	2,500	1,400	2,000	515
HM-BS2800	2,800	1,510	2,000	535
HM-BS3000	3,000	1,520	2,000	550
HM-BS3200	3,200	1,560	2,000	560
HM-BS3500	3,500	1,630	2,000	580
HM-BS3900	3,900	1,710	2,000	610
*Note: Various sizes can be customized according to the requirements.

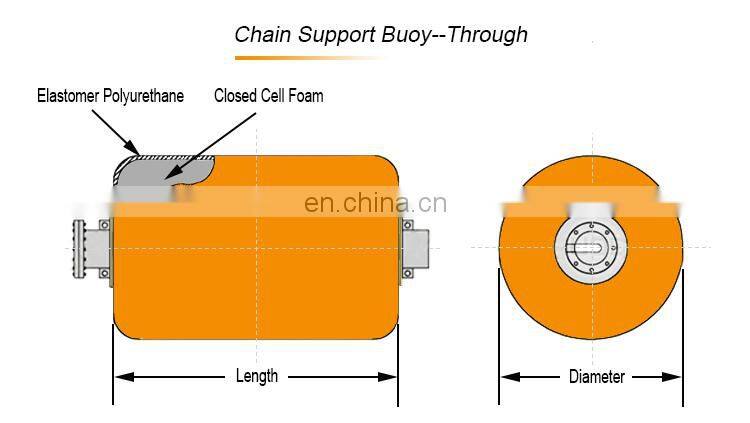

Model	Buoyancy	Diameter	Length	Weight
Through	[kg]	[mm]	[mm]	[kg]
HM-BT1500	1,500	1,195	2,000	520
HM-BT1700	1,700	1,260	2,000	545
HM-BT2000	2,000	1,325	2,000	560
HM-BT2250	2,250	1,395	2,000	580
HM-BT2500	2,500	1,450	2,000	610
HM-BT2750	2,750	1,505	2,000	630
HM-BT3000	3,000	1,565	2,000	658
HM-BT3500	3,500	1,680	2,000	750
HM-BT4500	4,500	1,900	2,000	880
*Note: Various sizes can be customized according to the requirements.

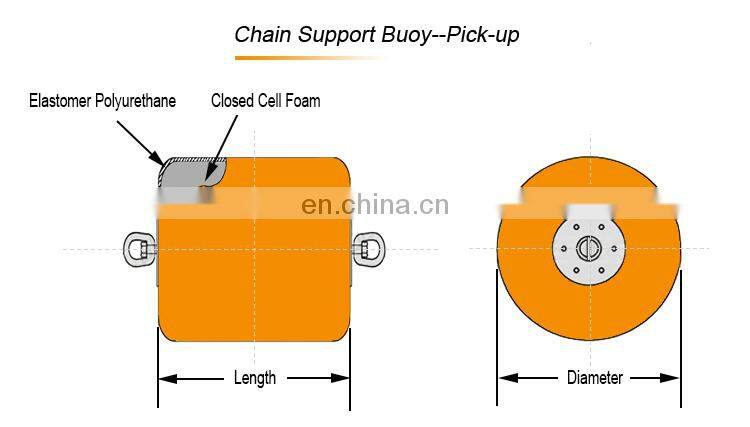

Model	Buoyancy	Diameter	Length	Weight
Pick-up	[kg]	[mm]	[mm]	[kg]
HM-BP90	90	515	660	42
HM-BP225	225	690	910	120
HM-BP400	400	900	910	155
HM-BP800	800	1,150	910	180
*Note: Various sizes can be customized according to the requirements.
