Product Description
Marine Salvage Airbags

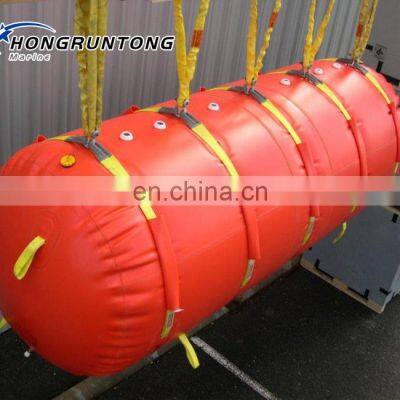

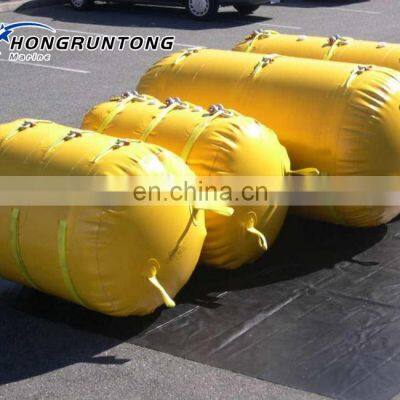

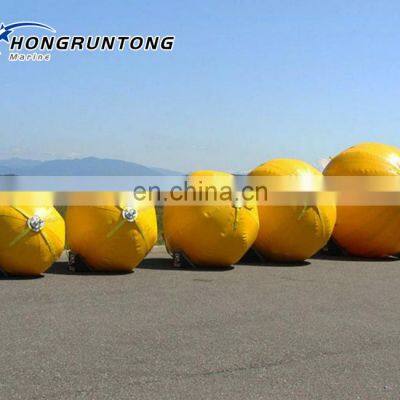

There are two types of PVC lifting airbags, Water Drop type and Cylindrical type.
The lifting airbag has the advantages of light weight, strong air tightness, deep water pressure resistance and convenient transportation. So it is widely used in wreck salvage, stranded ships, floating bridges, caissons and other floating salvage projects. Each airbags can lift more than 200 tons in the water.
Product Description
Specification
Water Drop Type
Model | Airbag Diameter | Buoyancy | Working Pressure | Thickness | Unit Weight | |||||
Water Drop | [mm] | [ton] | [kPa] | [mm] | [kg] | |||||
HM-WD01 | 800 | 0.2 | 50 | 0.9 | 5 | |||||
HM-WD02 | 1,000 | 0.5 | 50 | 1.2 | 8 | |||||
HM-WD03 | 1,300 | 1 | 50 | 1.2 | 11 | |||||
HM-WD04 | 1,600 | 2 | 50 | 1.2 | 20 | |||||
HM-WD05 | 2,000 | 4 | 70 | 1.2 | 50 | |||||
HM-WD06 | 2,300 | 6 | 70 | 1.2 | 66 | |||||
HM-WD07 | 2,500 | 8 | 70 | 1.2 | 75 | |||||
HM-WD08 | 2,700 | 10 | 70 | 1.2 | 80 | |||||
HM-WD09 | 3,100 | 15 | 80 | 1.4 | 110 | |||||
HM-WD10 | 3,400 | 20 | 80 | 1.4 | 130 | |||||
HM-WD11 | 3,900 | 30 | 80 | 1.4 | 170 | |||||
HM-WD12 | 4,600 | 50 | 80 | 1.4 | 220 | |||||
HM-WD13 | 5,200 | 70 | 80 | 1.4 | 310 | |||||
HM-WD14 | 5,800 | 100 | 80 | 1.4 | 450 | |||||
HM-WD15 | 6,600 | 150 | 100 | 1.4 | 660 | |||||
HM-WD16 | 7,300 | 200 | 100 | 1.4 | 900 | |||||
*Note: Other sizes can be customized according to the requirements. | ||||||||||
Cylindrical Type
Model | Airbag Diameter | Airbag Length | Buoyancy | Working Pressure | Thickness | Unit Weight | ||||||
Cylindrical | [mm] | [mm] | [ton] | [kPa] | [mm] | [kg] | ||||||
HM-C01 | 500 | 1000 | 0.2 | 50 | 0.9 | 5 | ||||||
HM-C02 | 800 | 1,000 | 0.5 | 50 | 1.2 | 8 | ||||||
HM-C03 | 1,000 | 1,500 | 1 | 50 | 1.2 | 11 | ||||||
HM-C04 | 1,300 | 1,500 | 2 | 50 | 1.2 | 20 | ||||||
HM-C05 | 1,600 | 2,000 | 4 | 70 | 1.2 | 50 | ||||||
HM-C06 | 2,000 | 2,000 | 6 | 70 | 1.2 | 66 | ||||||
HM-C07 | 2,000 | 2,600 | 8 | 70 | 1.2 | 75 | ||||||
HM-C08 | 2,400 | 2,400 | 10 | 70 | 1.2 | 80 | ||||||
HM-C09 | 2,600 | 3,000 | 15 | 80 | 1.4 | 110 | ||||||
HM-C10 | 3,000 | 3,000 | 20 | 80 | 1.4 | 130 | ||||||
HM-C11 | 3,000 | 4,500 | 30 | 80 | 1.4 | 170 | ||||||
HM-C12 | 4,000 | 4,000 | 50 | 80 | 1.4 | 220 | ||||||
HM-C13 | 4,000 | 5,700 | 70 | 80 | 1.4 | 310 | ||||||
HM-C14 | 4,000 | 8,000 | 100 | 80 | 1.4 | 450 | ||||||
HM-C15 | 5,000 | 8,000 | 150 | 100 | 1.4 | 660 | ||||||
HM-C16 | 5,000 | 10,000 | 200 | 100 | 1.4 | 900 | ||||||
*Note: Other sizes can be customized according to the requirements. | ||||||||||||
