Factory Direct Supply OCIMF Specifications 20IN Mainline Full Floating Oil Hose

Name: Factory Direct Supply OCIMF Specifications 20IN Mainline Full Floating Oil Hose
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

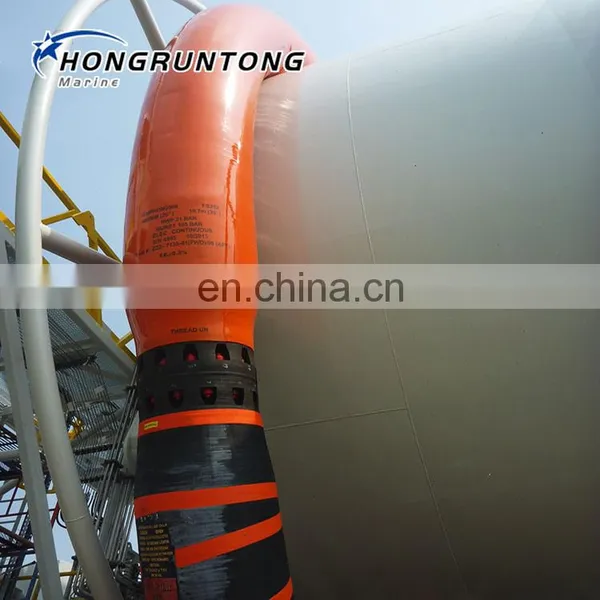

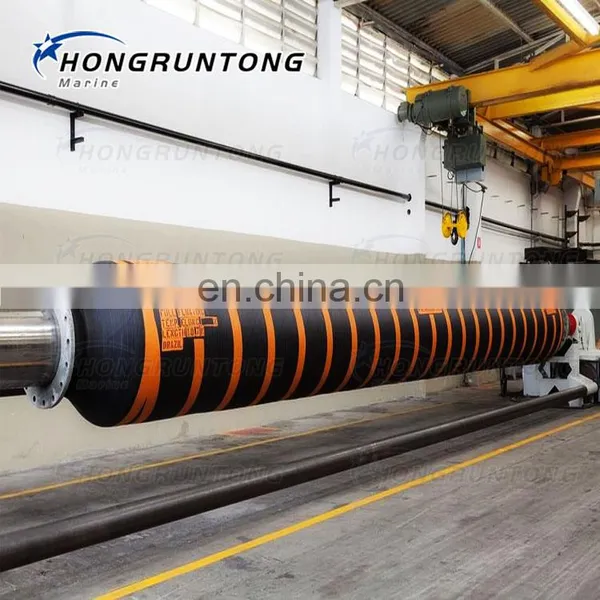

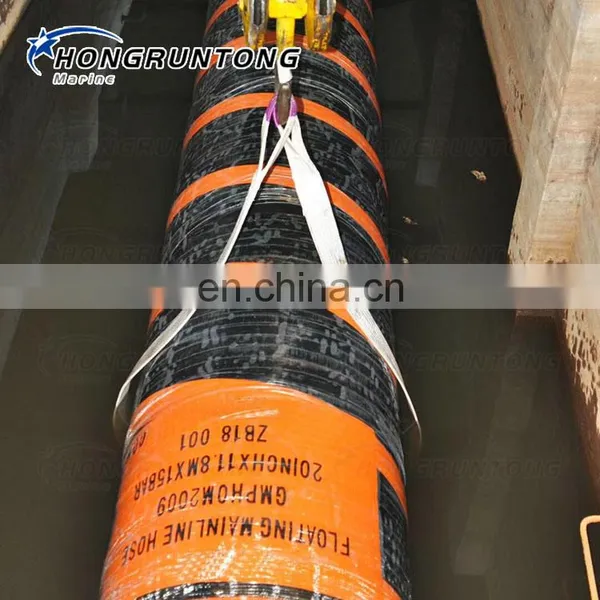

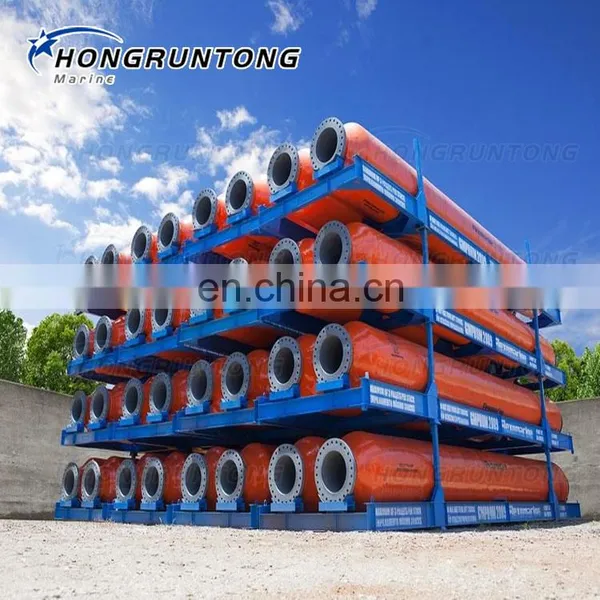

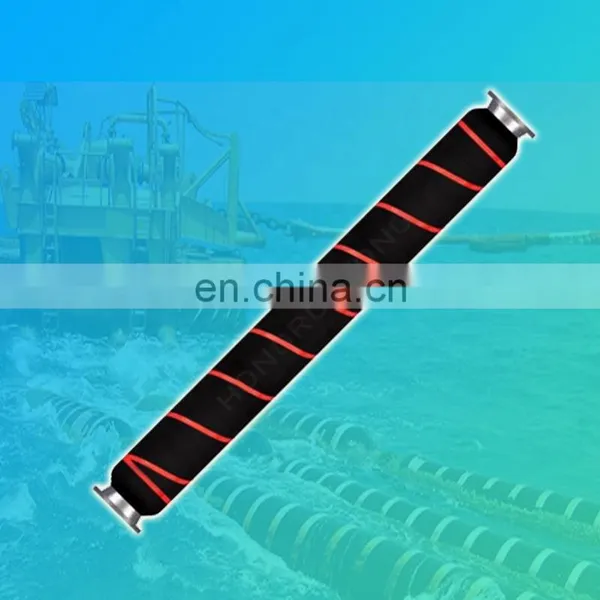

Mainline Full Floating Hose

Floating transfer hoses for Oil & Gas offshore applications, as well as dock lpg hoses. Floating hoses include layers of foam material under the cover to provide the minimum buoyancy required by the OCIMF specification. Hongruntong hose offers solutions for the offshore transport of crude oil and petroleum products up to 50% aromatics on marine docks, ships and barges in normal pressure for terminals worldwide.

Product Description

Specification

Oil Resistant Liner	NBR
Main Reinforcement	Steel wire cord skimmed with rubber
Wire Helix	Embedded in synthetic rubber
Reinforcing Fabric Plies	Nylon
Cover	Abrasion resistant rubber in Chloroprene
Fitting	Built-in
Working Pressure	Psi 275
Min.Burst Pressure	Psi 1375
Minimum Bending Radius	6 x id
Max.Temp Elong	% 2,5
Max.Perm Elong	% 0,7
Aromatic Resistance Up to	% 50
Fluid Temp Range	℃ -20; +82
Ambient Temp Range	℃ -29; +52
Flow Velocity Up to	m/s 21
Electrically as Reuqest	Continuous / Discontinuous
Reserve Buoancy min.	% 20
