Home > Products > Fenders > Manufactory Wholesale 50kpa Yokohama Dock Pneumatic Rubber Fender Inflatable

Share|

Manufactory Wholesale 50kpa Yokohama Dock Pneumatic Rubber Fender Inflatable

Name: Manufactory Wholesale 50kpa Yokohama Dock Pneumatic Rubber Fender Inflatable
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

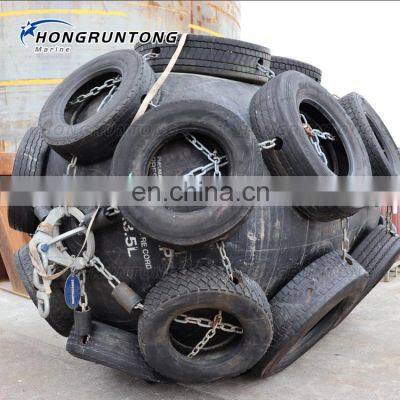

Yokohama Pneumatic Fenders

Pneumatic Fenders are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. They are manufactured according to ISO 17357-1:2014. Fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 9,000 mm, as well as special sizes.

Product Description

Specification

Fender Size			Initial Pressure 0.5 kg/ cm2					Initial Pressure 0.8 kg/ cm2
D x L			Reaction force	Energy absorption	Hull absorption	Reaction force	Energy absorption	Hull absorption
[mm]	[mm]	[kN]	[kNm]	[kN/m2 ]	[kN]	[kNm]	[kN/m2 ]
500	1000	64	6	132	85	8	174
600	1000	74	8	126	98	11	166
700	1500	137	17	135	180	24	177
1000	1500	182	32	122	239	45	160
1000	2000	257	45	132	338	63	174
1200	2000	297	63	126	390	88	166
1350	2500	427	102	130	561	142	170
1500	3000	579	152	132	731	214	174
1700	3000	639	191	128	840	267	168
2000	3500	875	308	128	1150	430	168
2500	4000	1381	663	137	1815	925	180
2500	5500	2019	943	148	2653	1317	195
3300	4500	1884	1175	130	2476	1640	171
3300	6500	3015	1814	146	3961	2532	191
3300	10600	5121	3090	171	6612	4294	220
4500	7000	4660	3816	186	5866	4945	233
4500	9000	5747	4752	146	7551	6633	192
4500	12000	7984	6473	154	10490	9037	202
*Other sizes can be customized according to the requirements.
