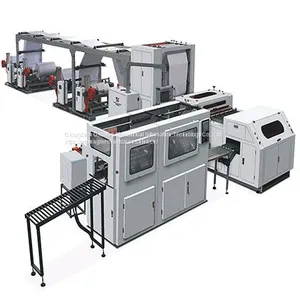

Full Automatic Trimming High-precision Crosscutting Machine ( Four Frame )
This high precision cutting machine is suitable for cutting big rolling packaging materials such as office, paper-plastic, photo paper material, etc.
Features of Full Automatic Trimming High-precision Crosscutting Machine ( Four Frame )
Loading Systerm
This high precision plasma cutter can be with 1 roll. 2roll. 4roll loading system.
PLC Touch Screen Control
The high precision cutting machine adopts PLC touch screen control, servo motor for controlling constant-length cutting.
Controlling Transminssion System
The high precision cutting machine adopts a pneumatic, a photoelectric sensor for controlling transmission system, with photo, electric and gas together. It has the functions of easy operation, high precision, good stability and low noise.
Frequency Converter Timing Device
This high precision cutting machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, which can be cut vertically, adopts blower to get rid of waste.
Specification of Full Automatic Trimming High-precision Crosscutting Machine
Model |
YSH-1100A4 |
YSH-1400A4 |
Max. width of cutting |
1100mm |
1400mm |
Max diameter of the material |
1400mm |
1400mm |
Min. width of cutting |
50mm |
50mm |
Length of cutting |
200-1500mm |
200-1500mm |
Speed |
s200times/min |
≤200times/min |
Precision |
±0.2mm |
±0.2mm |
Total Power |
16kw |
18kw |
weight |
8000kg |
10000kg |
Overall dimension (LxWxH) |
19000x2200x2200(mm) |
19000x2500x2200(mm) |
As one of packaging machinery manufacturers, we have types of products for sale, anything you need, please contact us.
