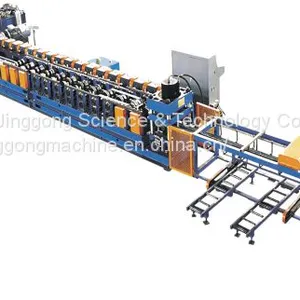

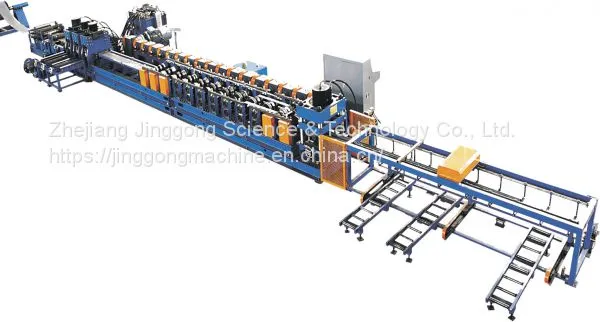

Guardrail Forming Machine is the special forming equipment for producing the speedway guide rail. One shift every month can produce 600 tons (max). The common thickness for the coil is normally 3-4mm for low yield strength. The rough weight of total highway guardrail roll forming machine is about 55000Kg for reference.
guardrail machine for sale and other roll forming machines for sale on jinggong, RFQ now!
Parameter Of Highway Guardrail Roll Forming Machine
Item | Parameter | |
Profile | Two ribs and three ribs guard rail | |
Material | Type | Steel strip |
Thickness | 3-4 | |
Yield stress | 230-300 | |
Max. Forming speed | 20 | |
Roller material | D2 | |
Roller driven type | Universal joint shaft transmission | |
Controller | PLC | |
Operation | Touch screen+button | |
Hydraulic system pressure | 25 | |
Total weight | About 55000 | |
Technical flow Of Highway Guardrail Machine
Loading steel coil →decoiling→feeding and leveling→side shearing→punching to length→roll forming →cutting →product stacking→moving out the product
Want to know the types of auxiliary equipment or buy sandwich panel machinery, contact us now.
