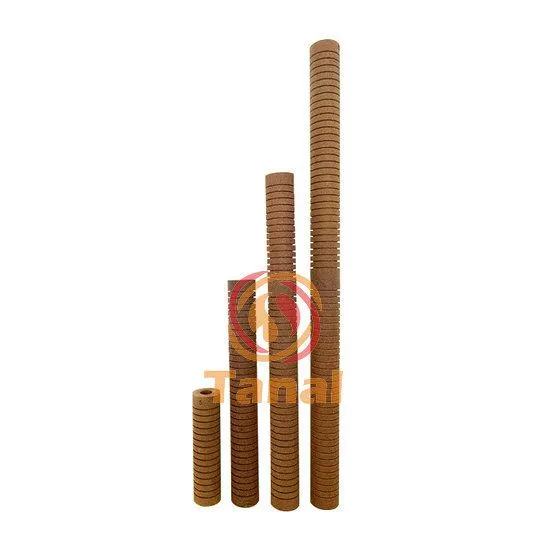

Phenolic Resin Bonded Filter Cartridge

Phenolic Resin Bonded Filter Cartridge thumbnail-1
Phenolic Resin Bonded Filter Cartridge photo-1
US$ 4.9 - 4.98 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Tanal
Place of Origin:
China
Model Number:
FCRPPR305
Contact Supplier Request Quote Chat Now
Wuhan Tanal Industrial Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin, Qingdao, Shanghai, Ningbo, Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Tanal
Place of Origin China
Model Number FCRPPR305
Replacement (equivalent, alternative, analog, retrofit, analogue): Parker Fulflo ProBond, 3M Cuno Micro-Klean RB

DescriptionRexPure resin bonded filter cartridge is for Parker, 3M, Pall, Cuno Micro Klean RB resin bonded cartridge and filters equivalent, replacement, alternative, analog, retrofit and analogue.
TaRex series phenolic resin bonded filter cartridges, also known as phenolic resin fiber filter cartridges, are filter cartridges that use high-pressure resin fiber for processing and synthesis. The surface of the filter cartridge is formed with a layer of resin fiber filaments, and the internal compression structure is strong and durable.

TaRex series phenolic resin composite filter cartridge has a unique and patented two-layer structure filter design to ensure the maximum particle removal effect and the life of viscous fluid filtration, adapting to high-temperature, high-viscosity fluid filtration containing phenolic or resin raw materials.

RexPure filter cartridges are offered with industry standard adaptor to fit in existing filter housings.

Features

• High quality raw material
• High thermal and chemical resistance
• Simple and economical cartridge replacement
• Expanded removal ratings

Benefits

  • The external spiral structure increases the surface area while reducing the loose debris and pollution of machine-made products.

  • The extremely long acrylic fiber increases the fiber length and can resist the damage and fiber movement of the phenolic resin filter cartridge.

  • The injection of phenolic resin enhances the viscosity of the filter cartridge which can be used for fluids up to 15,000 SSU (3200 cks).

  • Optimized structure ensures no medium pollution.

  • Flow rate up to 5 gpm (about 2.3 m3/h) per 10 inch long filter cartridge.

Applications• Paints
• Printing inks
• Adhesives
• Resins
• Emulsions
• Chemical coatings
• Organic solvents
• Petroleum products
• Process water
• Oilfield fluids
• Animal oils
• Waxes
• Plasticizers etc.

Specifications

Materials of Structure:• Filtration Media: Acrylic Fiber + Phenolic Resin
Size:• FCRP: Outer Diameter: 65 mm, Inner Diameter: 28.6 mm
• FCRE: Outer Diameter: 65.9 mm, Inner Diameter: 26.9 mm
• Length: 9.75″, 10″, 19.5″, 20″, 29.25″, 30″, 39″, 40″

Removal Ratings:• 1 μm, 2 μm, 3 μm, 5 μm, 10 μm, 20 μm, 50 μm, 75 μm, 100 μm, 125 μm, 150 μm, 200 μm, 250 μm

Operating Conditions

  • Recommended change-out differential pressure: 2.4 bar (35 psi)

  • Maximum differential pressure:

4.8 bar (70 psi) @ 20°C (68°F)2.8 bar (40 psi) @ 65°C (150°F)

  • Maximum operating temperature: 149°C (300°F)

Ordering Guide

Cartridge

Material

Nominal Length

Removal Rating

Adaptor

Sealing

FCRP

FCRE

 PR

=Phenolic Resin

 09
10
19
20
29
30
39
40

=9.75"
=10"
=19.5"
=20"
=29.25"
=30"
=39"
=40"

1
 2
3
5
10
20
50
75
100
125
150
200
250

=1 μm
=2 μm
=3 μm
=5 μm
=10 μm
=20 μm
=50 μm
=75 μm
=100 μm
=125 μm
=150 μm
=200 μm
=250 μm

 Omit
C
D
F

=DOE
=226+Fin
=222+Flat
=222+ Fin

  Omit
S
E
N
V
P









 =None
=Silicone
=EPDM
=NBR
=Viton
=PFA Encapsulated
Viton

*Example part number: FCRPPR30150 means RexPure Phenolic Resin Filter Cartridge, 30", 150 μm, DOE, OD 65 mm, ID 28.6 mm.

Product Tags: resin bonded filter cartridge , parker probond , resin bonded filters , micro klean rb , resin bonded cartridge , resin bonded cartridge filter
