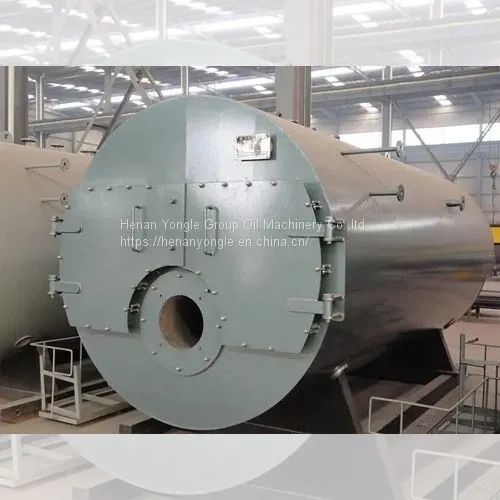

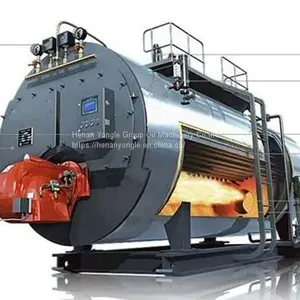

Steam boiler is automatic oil (gas) steam boiler; Adopt horizontal internal micro positive pressure combustion, full wet back design, efficient spiral groove pipe, economizer and reasonable insulation package; The thermal efficiency can reach more than 90%. Its novel design, reasonable structure and good performance achieve perfect quality and good performance.
Steam boiler can be used in textile mills, printing, printing and dyeing, paper making, rubber, pharmaceutical and other products manufacturing process. Heating, bathing, air conditioning and domestic water for government agencies, hotels, schools, restaurants and service industries.
1. Large steam room and high quality steam.
2. Horizontal structure full heating, full heat transfer, boiler load stable operation, high combustion efficiency. Low setting of furnace, large safe water level. The steam evaporation area is large and the steam quality is high.
3. It can greatly improve boiler efficiency, save fuel and reduce operation cost. So as to achieve the purpose of boiler high efficiency, gas saving and safety.
4. Automatic operation, PLC control and display equipment operation parameters and fault sound and light alarm.
5. The unique combustion chamber design increases the area of the radiation heating furnace, reduces the volume of the boiler, and reduces the emission of NOx.
6. After pre-setting, the role of purging is to improve the working conditions of combustion and prolong the service life.
Main technical parameter .
Boiler type |
LNS0.2-0.4-Y(Q) |
LNS0.3-0.7-Y(Q) |
WNS0.5-1.0-Y(Q) |
WNS1-1.0-Y(Q) |
WNS2-1.25-Y(Q) |
WNS3-1.25-Y(Q) |
Rated output (t/h) |
0.2 |
0.3 |
0.5 |
1 |
2 |
3 |
|
Rated working pressure (Mpa) |
0.4 |
0.7 |
1.0 |
1.0 |
1.25 |
1.25 |
Feedwater temperature °C |
20 |
20 |
20 |
20 |
20 |
20 |
steam temperature °C |
151 |
169 |
184 |
184 |
194 |
194 |
Heating surface area (m2) |
6.22 |
9.15 |
14.3 |
28.08 |
59.13 |
87.3 |
Design fuel |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Design efficiency % |
85 |
86 |
86 |
86 |
86 |
88 |
Distribution volume(KW) |
0.25 |
0.25 |
0.55 |
1.11 |
2.2 |
7.5 |
Our Services
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
Packaging & Shipping
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
FAQ
1. who are we?
We are based in Henan, China, start from 2014,sell to Domestic Market(24.00%),North America(22.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(10.00%),Eastern Europe(8.00%),Africa(5.00%),Mid East(5.00%),Oceania(3.00%),Southern Europe(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
We provide a complete set of engineering equipment for plant and animal oil processing, and a complete set of processing equipment such as cooking machines, presses, dryers, crushers, centrifuges, thickeners, evaporators, etc., adopting mature European technology, and provide solutions for construction, installation, commissioning and operation Training.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,French
