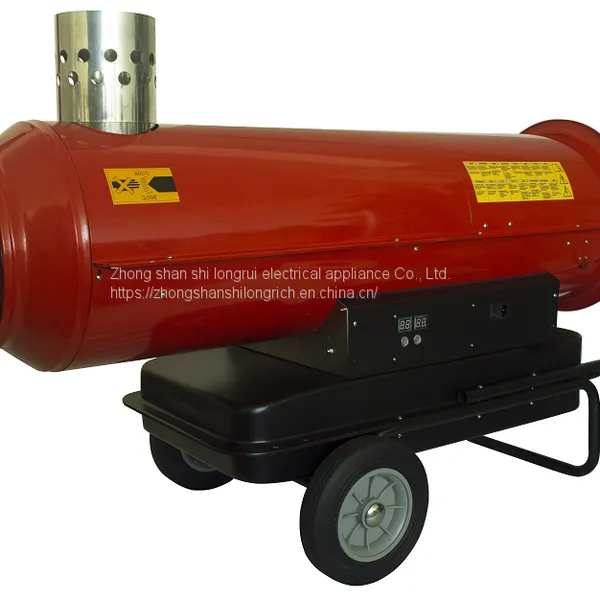

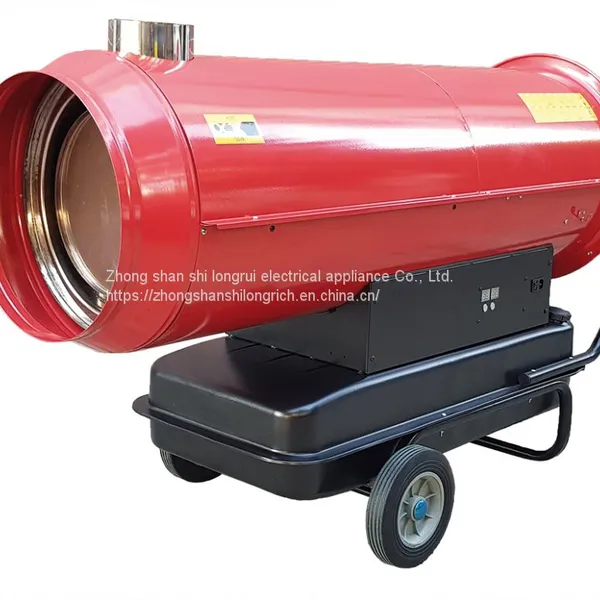

Compact and strong design.
It works on diesel oil or kerosene.
Stainless steel combustion chamber and heat exchanger.
Strong steel tank.
Equipped with oil level indicator.
Equipped with room thermostat to set up desired temperature.
Cut-off protection by photocell and safety thermostat.
Danfoss high pressure pump and nozzle.
Waterproof class IPX4.
Robust wheels and handle make it easy to move.
Post-ventilation phase to recover accumulated heat from combustion chamber.
Oil filter.
Ventilation mode function.
Thermostat and cable for remote control available upon request.

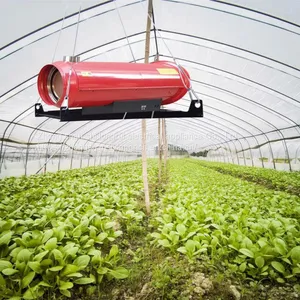

DH2-I-85 is available in the hanging version
Model | DH2-I-30 | DH2-I-55 | DH2-I-85 |
Heat Input* [kW] [Hs] | 30.7 | 52.5 | 82.9 |
Air Flow Rating [m³/h] | 1100 | 2500 | 3900 |
Fuel Type | Diesel - Kerosene | Diesel - Kerosene | Diesel - Kerosene |
Fuel consumption [l/h] | 2.8 | 4.8 | 7.7 |
Fuel Nozzle size [gph] | 0.85 | 1.00 | 1.50 |
Voltage [V/Hz] | 230/50 | 230/50 | 230/50 |
Current Rating [A] | 1.8 | 3.2 | 3.9 |
Electricl power Rating [W] | 370 | 720 | 900 |
Fuse Rating | T3.15A | T6.00A | T10.0A |
Dimensions | |||
Net Weight (kg) | 35.0 | 58.0 | 78.0 |
Length (mm) | 1095 | 1385 | 1650 |
Width (mm) | 575 | 600 | 690 |
Height (mm) | 675 | 785 | 1040 |
Tank Capacity (l) | 39 | 55 | 110 |
Operating range (h) | ~14 | ~11 | ~14 |
Standard Accessories | |||
Fuel gauge | yes | yes | yes |
Handle | 1 | 1 | 1 |
Ambient thermostat | built-in | built-in | built-in |
Malfunction detection signal | built-in | built-in | built-in |
ACCESSORIES ON DEMAND

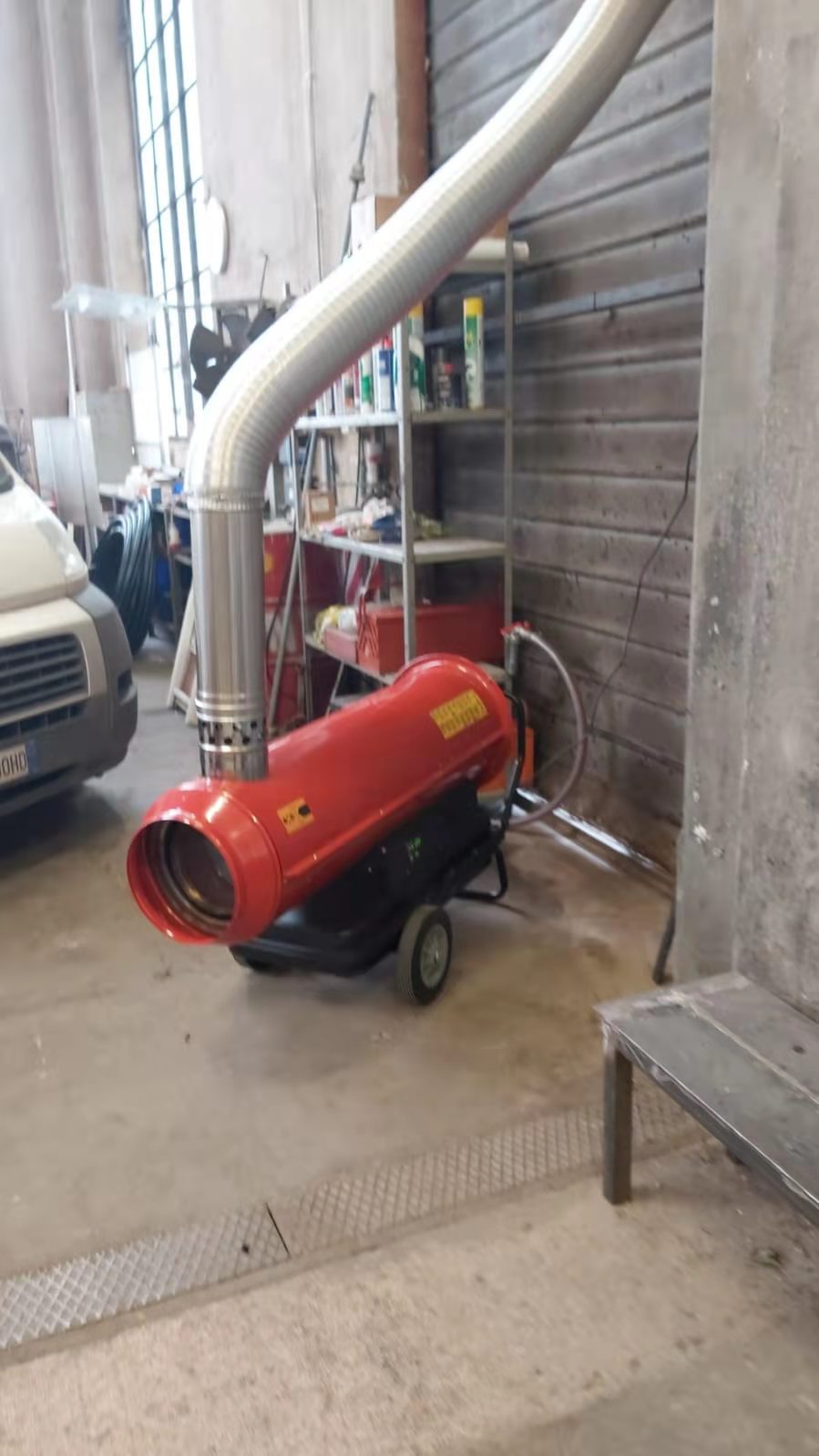

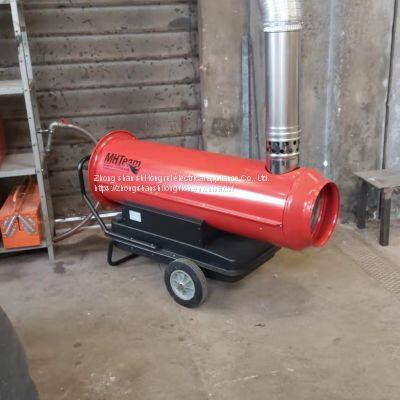

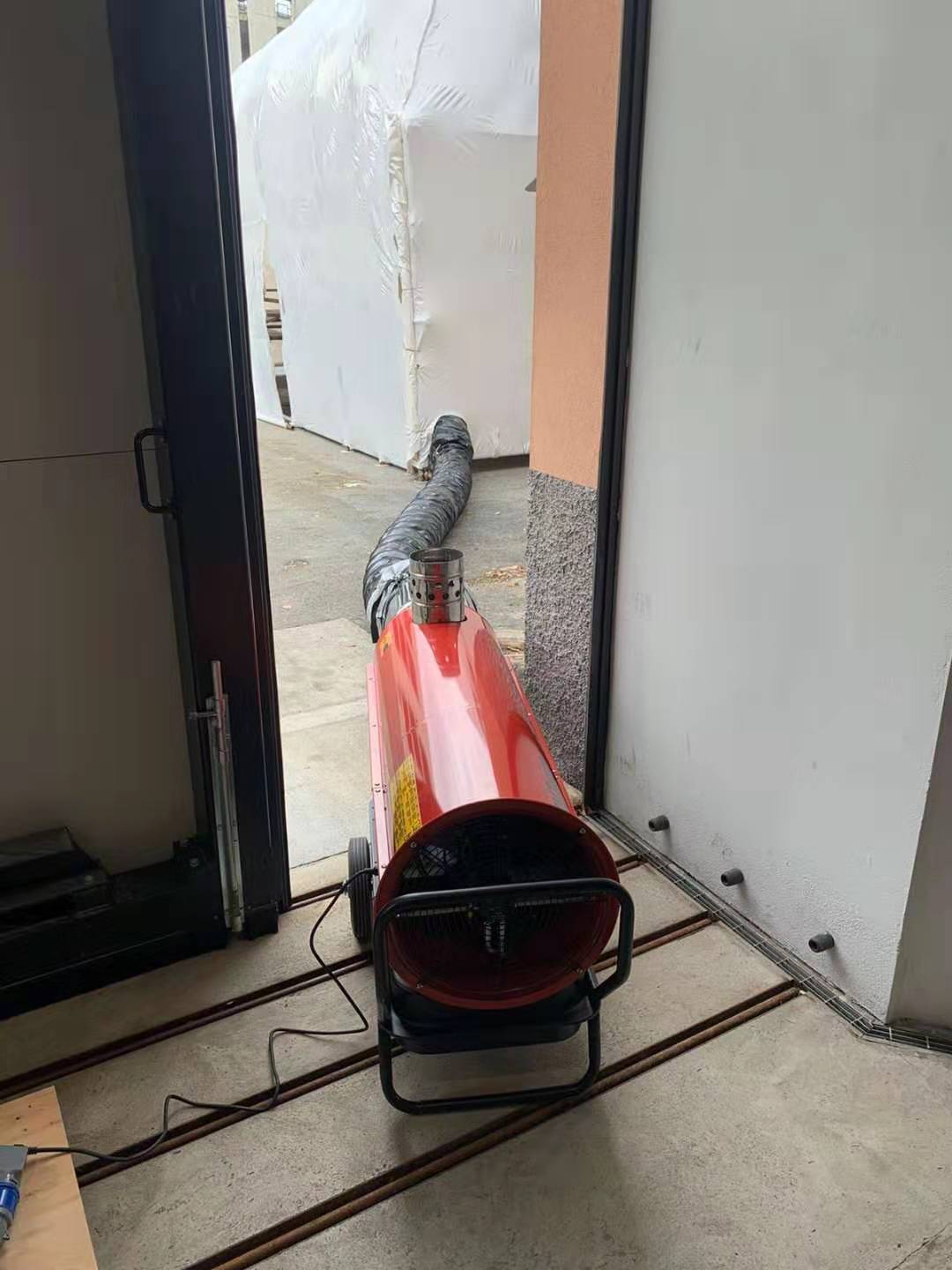

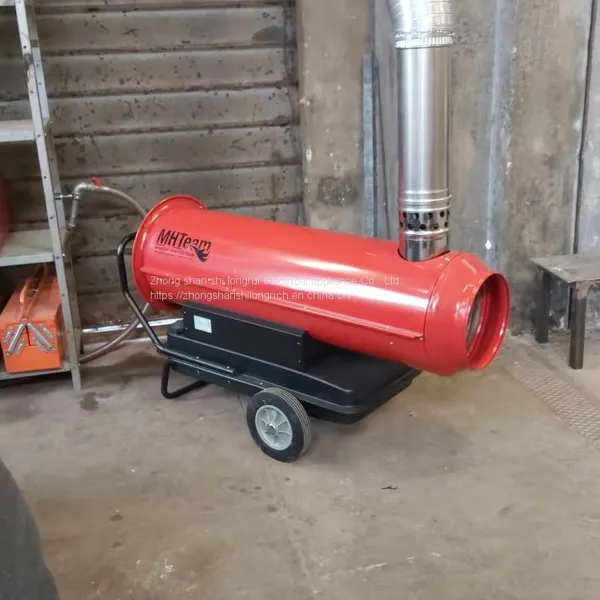

USE CASE
