Hoisting Equipment 161.16.0450.890.11.1503 Cross Roller Bearing Manufacture

Hoisting Equipment 161.16.0450.890.11.1503 Cross Roller Bearing Manufacture thumbnail-1
Hoisting Equipment 161.16.0450.890.11.1503 Cross Roller Bearing Manufacture photo-1
US$ 400 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
161.16.0450.890.11.1503
Contact Supplier Request Quote Chat Now
Luoyang MC Bearing Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai, qingdao, ningbo.
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LYMC
Place of Origin China
Model Number 161.16.0450.890.11.1503
Feature Cross Roller
Seals Type open
Outside Diameter 369, 554
Bore Size 46, 55
Gear Options External Gear Only

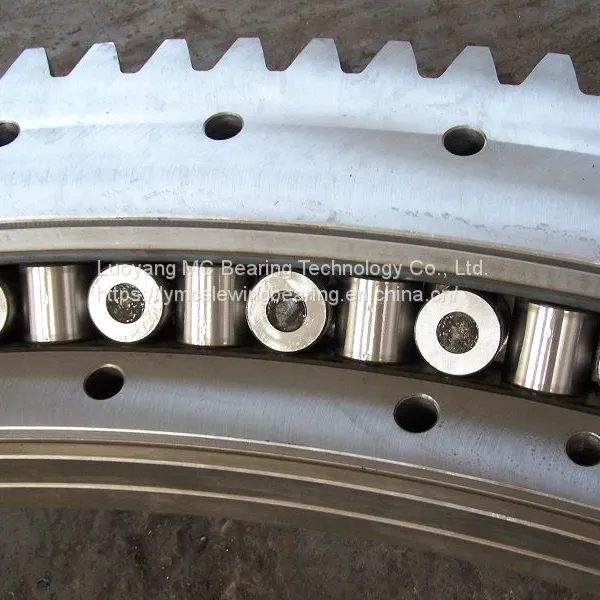

Hoisting equipment 161.16.0450.890.11.1503 cross roller bearing manufacture

Weight:41kgs

Da(Outer diameter):554mm

Di(Inner diameter):369mm

H(Overall height):55mm

La(External bolt circle dia.):500mm

Li(Internal bolt circle dia.):400mm

n(Number of bolts holes per hole circle):16

B(Bolt hole diameter):15,5mm

M(Bolt size):14mm

n1(Number of grease nipples):2

O(Diameter):448mm

U(Diameter):452mm

H1(Ring height):46mm

H2(Ring height):46mm

Hu(Distance at bottom outer ring/inner ring):9mm

Ho(Distance at top outer ring/inner ring):9mm

d(Gear P.C.D.):540mm

M(Module):5mm

z(Number of teeth):108

x.m(Addendum modification):+2,5mm

k.m(Addendum reduction):-0,5mm

b(Tooth width):46mm

permissible tangential forces, normal:14,4kN

permissible tangential forces, maxium:28,8kN

If you are interested in 161.16.0450.890.11.1503 slewing bearing, please contact us freely.
