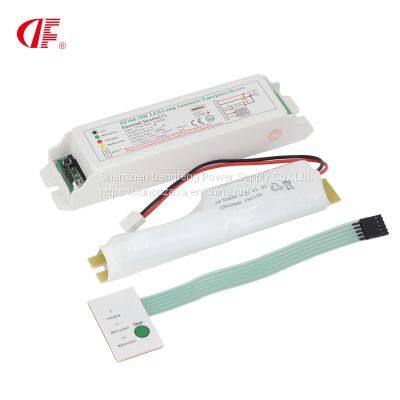

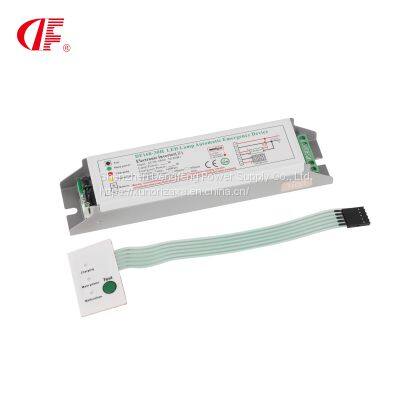

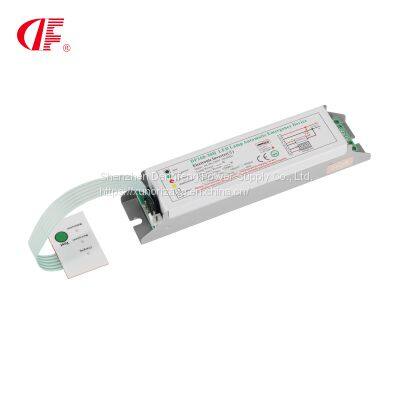

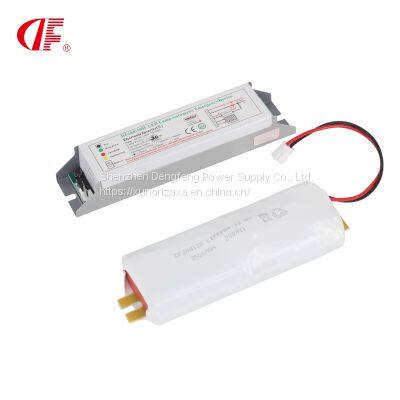

CE RoHS Certificates Led Emergency Driver Emergency Kit for Panel Light

US$ 17.5 - 18.5 MOQ: 10 Pieces

Key Specifications

Material:

Cold Rolled Steel Sheet

Usage:

Other, LED emergency lighting

Battery Type:

Other, Li-ion

Shenzhen Dengfeng Power Supply Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

5 days

Material Cold Rolled Steel Sheet

Usage Other, LED emergency lighting

Battery Type Other, Li-ion

Product parameters

Highlight Features:

Suit maximum 100w light and has max 25w emergency power output.

Support Ni-MH, Ni-Cd and Li-lon battery.

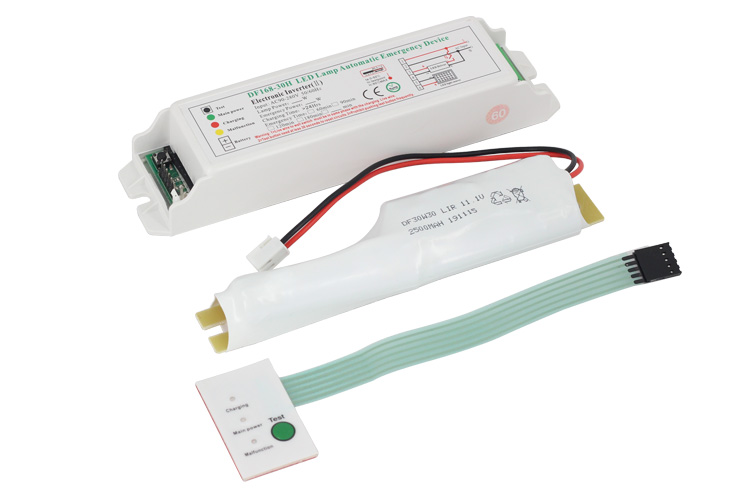

Model	DF168-30H
Support LED power rangement	Max 100w
Emergency Output Power	Max 25W
Input Voltage	90-265VAC, 50/60Hz
Output Voltage	DC18V~80V
Battery Voltage	11.1V
Emergency Operation Duration	>90minutes with Customized
Working Environment	0-55℃, 65+20%RH
Power Factor	>0.85
Charge Time	>24hrs
Inverter Size	1683828mm

Product detail

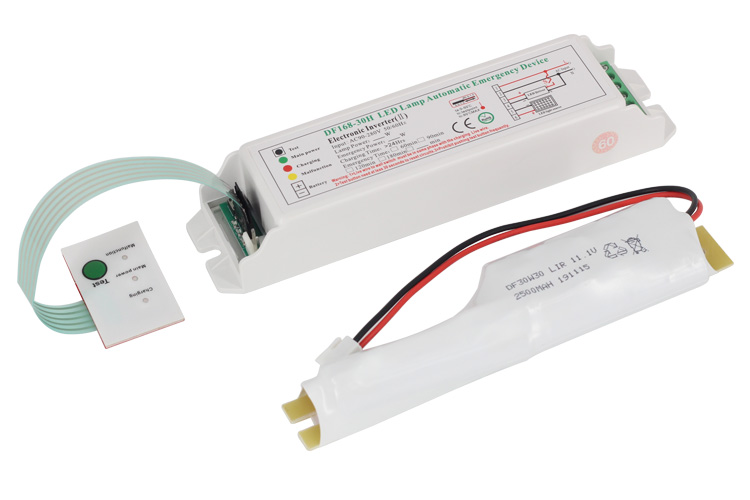

DF168-30H can automatically test light chip's series and adjust the output voltage to best match between the inverter and the load, providing 10w-25w illumination customized.

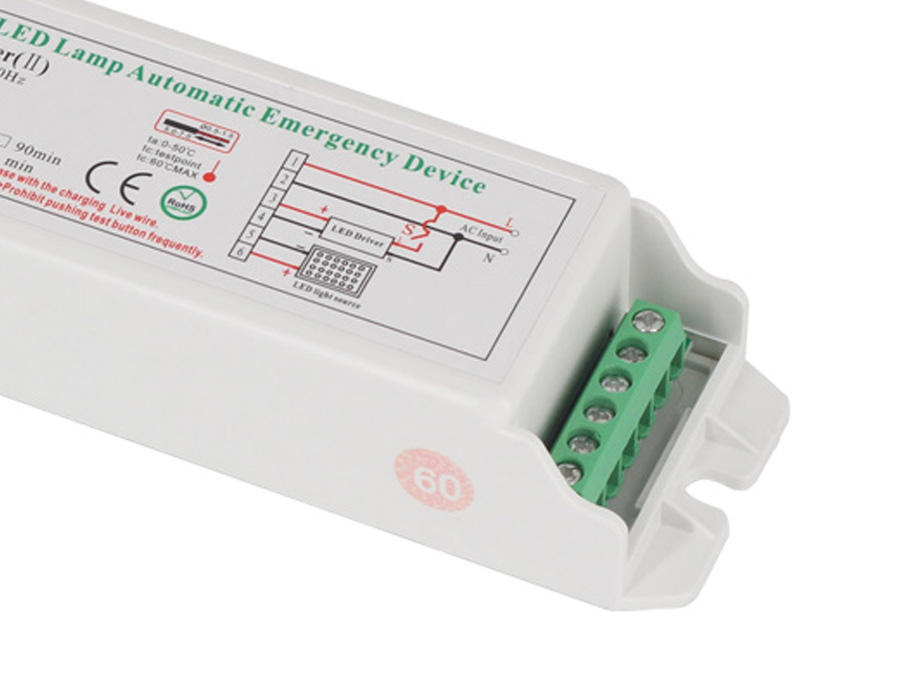

	AC Input L—— connect port 1 & Switch+ Led driver L side input. The wall switch only controls the main power, no function on emergency lighting. AC Input N——connect port 2 & LED driver N side input. Port 3 connect to Earth wire. Port 4 connect LED driver output positive side. Port 5 connect LED driver output negative side & LED light source negative terminal. Port 6 connect to light source positive terminal.

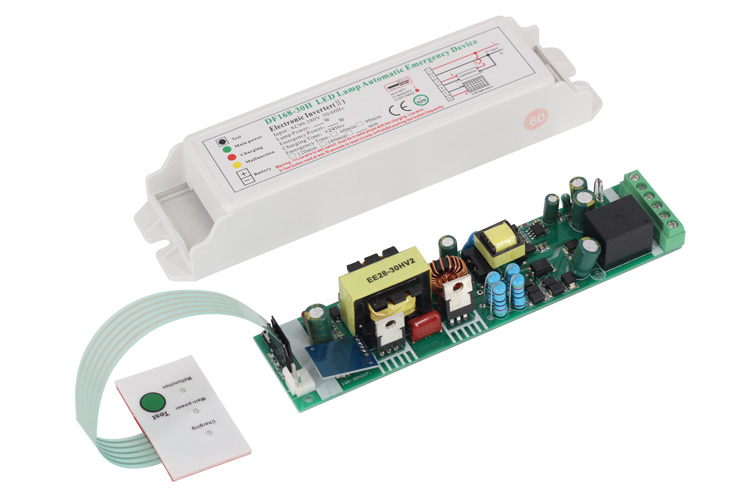

DF168-30H uses IC control circuit, has constant output power, isolation circuit, no-load protection feature. Green indicator: main power; Red indicator: charging; Yellow: fault.
