Hot Sale Portable High-precision Handheld Xrf Metal Alloy Tester Portable Xrf Gold Precious Metal Analyzer Spectrum Analyzer
US$ 13300 - 18500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Zealchon
Place of Origin:
China
Model Number:
TrueX-860
Payment & Shipping
Payment Methods:
Port of Shipment:
xian
Delivery Detail:
2022 days
Related Products
-
Handheld Portable X Ray Spectrometer Mineral Ore Gold Testing Machines Xrf AnalyzerUS$ 13000 - 13300MOQ: 1 Piece -
Truex 900 Xrf Precious Metal Gold Find Scanner Analyzer GunUS$ 13000 - 18000MOQ: 1 Piece
-
Truex 900 Mineral Analyzer Portable Xrf Gun Metal Analyzer PriceUS$ 13000 - 18000MOQ: 1 Piece
-
Portable Manual Precious Metal Analyzer Gold Silver Purity Karat Tester Gold Density Testing MachineUS$ 880 - 1100MOQ: 1 Piece
-
Truex 960 Handheld Mineral Xrf Analyzer Xrf SpectrometerUS$ 23000 - 28000MOQ: 1 Piece
Brand Name
Zealchon
Place of Origin
China
Model Number
TrueX-860
Power
Electronic
Usage
Auto Testing Machine
High Precision Handheld Xrf Metal Alloy Tester Portable Xrf Gold Precious Metal Analyzer
Application Features:
1. Excellent Performance TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way. 2. One-touch operation TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users. 3. Nondestructive testing (NDT) TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process. 4. Zealchon analysis software Zealchon analysis software is a professional analysis software which enables the users to easily configure passwords and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet. 5. Scrap metal recycling and sorting Scrap metal recycling, reuse, and on-site analysis and sorting. TrueX offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site. 6. Application fields, safety and standards TrueX is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials. TrueX is up to standard.

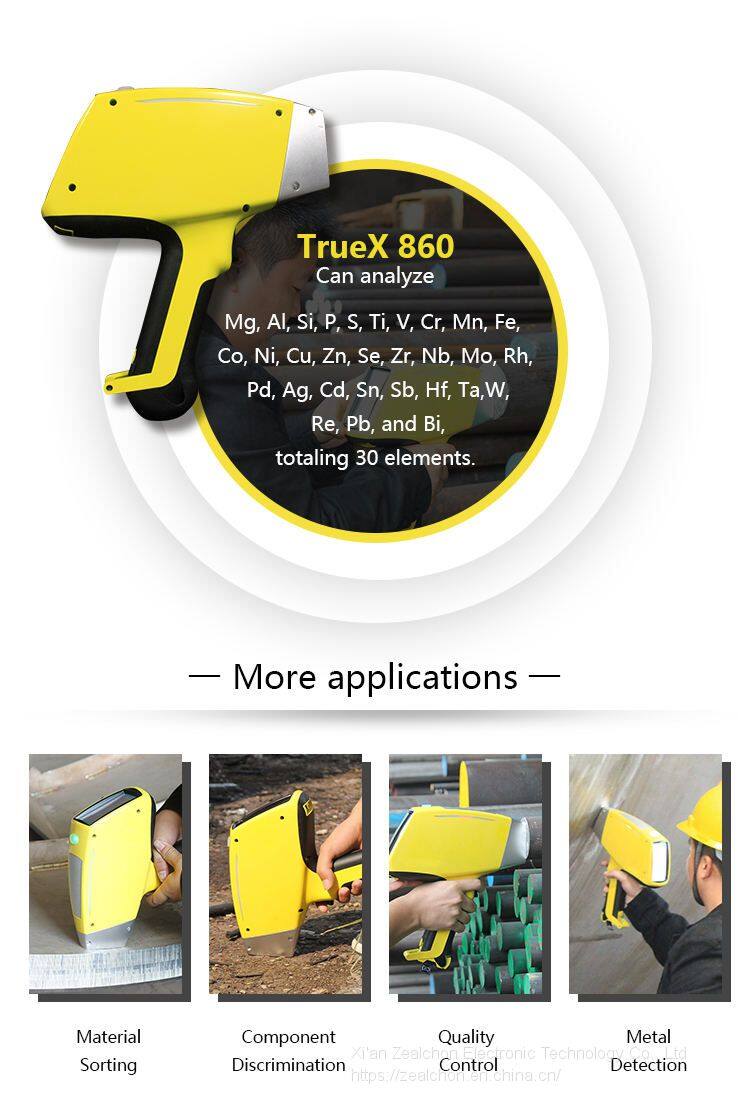

TrueX 860 can analyze Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi,totaling 30 elements.
Test modes of TrueX and elements covered Model Scope of elements in standard test mode can be extended if there is such a need.
Application fields :
- Nondestructive, rapid and accurate analysis of Precious Metals - Precious Metals Grade identification - QA/QC management in metal production, processing, casting, etc- Precious Metals elements and contents analyze - Pawn broking, jewelry industry, banking industry, jewelry testing center, mining industry, precious metal recycling, precious metal materials researching laboratory,etc. - Precious metal. Such as gold, Karat gold, platinum, silver. - Mixed metal or other alloy metal. - Jewelry materials. Such as ring, necklace, bracelet, watchband, belt fastener, gold ingot, gold bar, statue, coin., etc.
- Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.
Specification
| Weight | 1.6Kg(with battery). |
| Dimensions | 254 x 79 x 280 mm(L x W x H). |
| Excitation source | 50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional). |
| Detector |
BOOST Si-PIN detector for TrueX 800. SDD detector for TrueX 860. |
| Range of detection | All elements between Mg and U. |
| Display system |

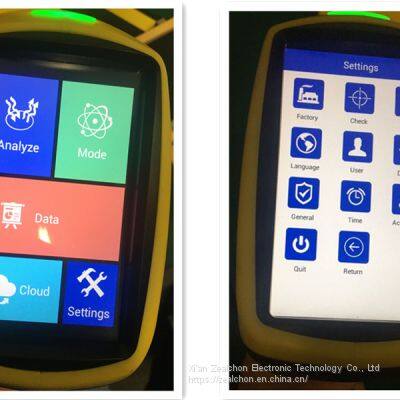

Industrial resistive touch screen with screen size of 4.3". Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |
| Data processing |
32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
| Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat;no need to wait for cooling of detector time again. |
| Safety |
Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase LANScientific Safety Band; |
| Power supply system |
Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours. |
Testing result:
