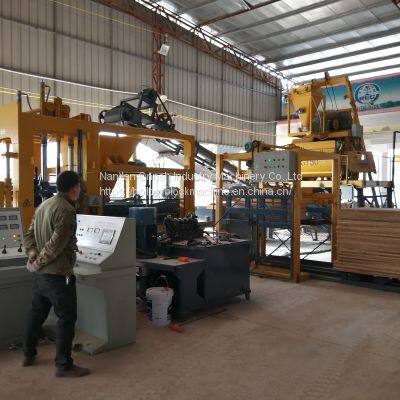

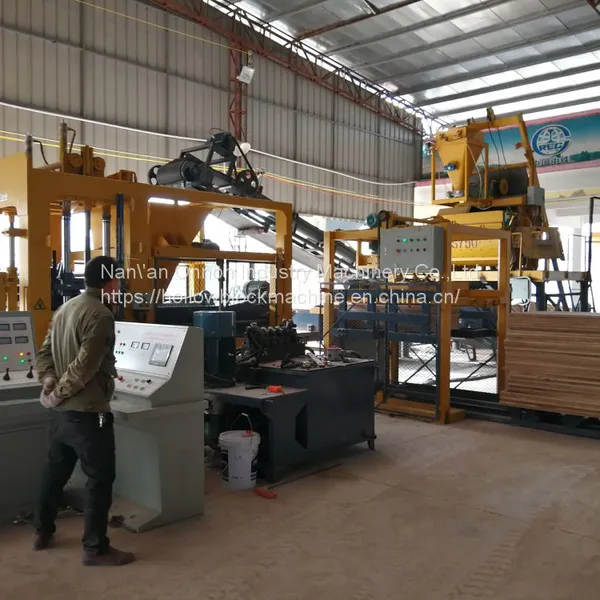

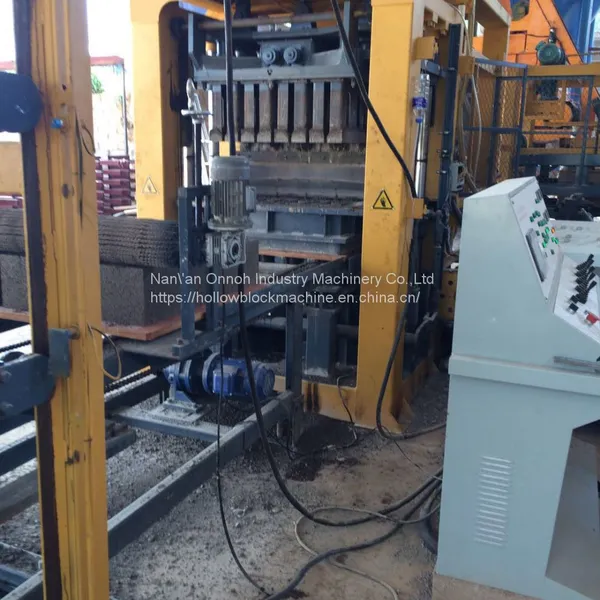

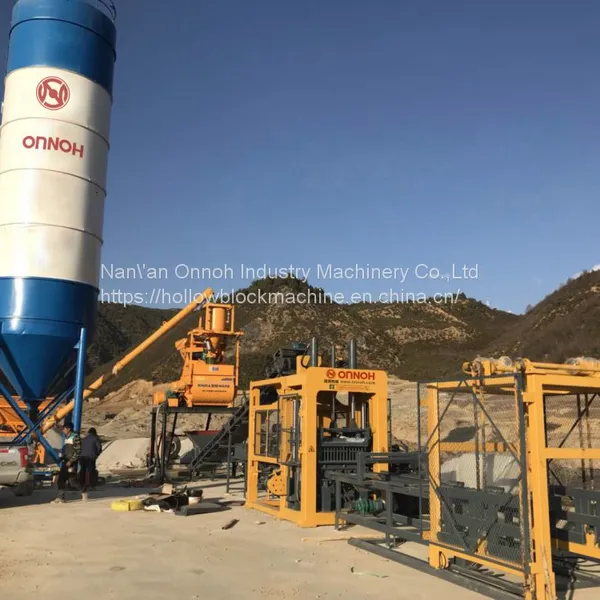

QT9-15 automatic block machine equipment adopts advanced vibration technology, and the automatic feeding forming system uses crutch arm to avoid damaging the green block when lifting the mold base. Advanced vibration technology and different vibration modes are adopted for feeding and forming to ensure the high quality of feeding and forming.
This machine is suitable for large and medium-sized investment customers.
QT9-15 Technical speciafications
Vibration Frequency |
3800-4500r/min |
Main machine weigh |
14500KG |
Dimension |
9800*4050*2800mm |
Capacity |
48.9KW |
Cycle Time |
15-23(S) |
Rated pressure |
31.5mpa |
Vibration force |
105KN |
Pallet size |
1350*680mm |
QT9-15 Block Machine Technical Parameter
Item |
Specification（mm）（L*W*H） |
Quantity per hour |

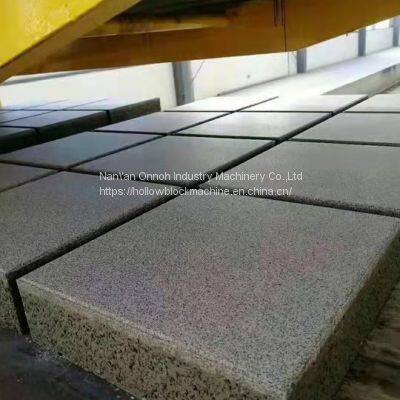

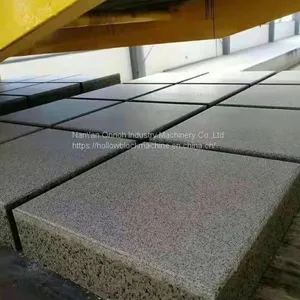

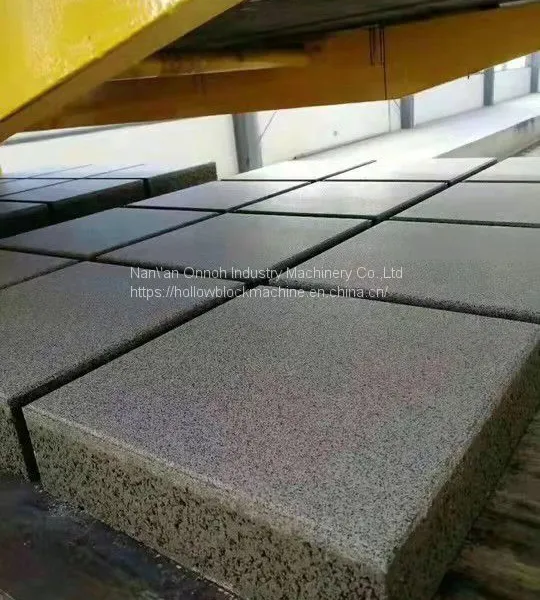

Concrete block |
390*190*190 |
1458-1620 |
Solid block |
240*115*53 |
8100-9000 |
Porous block |
240*115*90 |
4500-5000 |
1. The onnoh automatic brick making machine system can collect and stack the produced concrete bricks. At the same time, it can clean and stack trays.
2. Save 5-6 people and improve production efficiency.
3. As shown in the figure, 360 degree rotating manipulator, stacker, frequency converter and proportional valve control system. Therefore, the stacker can clamp bricks accurately and operate stably.
4. As shown in. Independent intelligent console, using German Siemens PLC component control system and LCD to realize man-machine dialogue.
5. Push and reassemble the brick in a unique way. The brick can be adjusted with the size of a square.
6. German control system and photoelectric switch are used to ensure correct movement of each action.
