Woodworking machinery 1325 1530 2030 2040 multi head atc cnc routers engraving wood carving machine

Name: Woodworking machinery 1325 1530 2030 2040 multi head atc cnc routers engraving wood carving machine
Brand: Mingshi
Availability: InStock

FOB Price

US$ 4599 - 5999 / Set

1 Set(Min. Order)

Port Qingdao/Shanghai/Yiwu/Daian/Guangzhou/Tianjin/Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Mingshi	Place of Origin	China
Model Number	MSW1325 ATC	Certification	ce sgs
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	3 years
Weight	1200KG	Dimension(LWH)	370021001850mm
Voltage	380v	Condition	New
Power(W)	6kw	CNC or Not	CNC

Product Description

/product-detail/3D-Woodwork-Machinery-1325-ATC-CNC_1600439702547.html?spm=a2747.manage.0.0.4d9b71d2qgWtUf

Technical Parameters

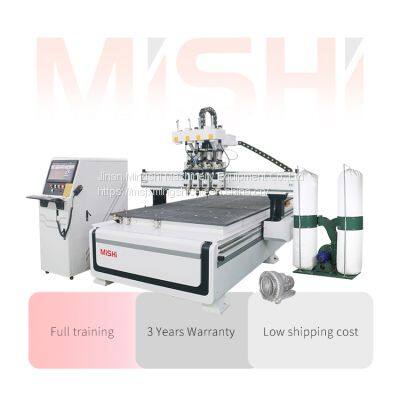

1325 Four Processes Wood Cutting Machine
Machine Type	MSW 1325 Four Processes CNC Router
Operating Voltage	AC380V 50HZ 3HP Three-phase Four-wire
Work Plan	X1250Y2480Z200mm
Maximum Empty Travel Speed	XY50000mm/min Z20000mm/min
Working Speed	15000-30000mm/min
Table Structure Size	Vacuum Adsorption Table 1260*2480 6 Partitions 24 Holes
Bed Structure	Heavy-duty Double-layer Unloading Trapezoidal Bed
Transmission	Rail 25 Square Rail
	Rack High Precision 1.5M Helical Gear
	Reducer Japan's New Treasure
	Screw Taiwan TBI
Frequency Converter	Shenzhen TETRAN 7.5KW
Spindle Power	JST 6KW*4
Spindle Speed	0-18000rmp
Driver and Motor	LEAD SHINE Servo Motor
Run Command	G Code
Control System	Taiwan LNC MW2200 System
Total Weight	1.2T
Plate Fixing	7.5kw Water Circulation Vacuum Pump
Dust Removal	5.5kw High Power Vacuum Cleaner

Detailed Images

/product-detail/3D-Woodwork-Machinery-1325-ATC-CNC_1600439702547.html?spm=a2747.manage.0.0.4d9b71d2qgWtUf

Product Description

(1) Using international technology vacuum adsorption table, equipped with a strong adsorption vacuum pump, six partition design, can be strong adsorption of different areas of the material, greatly improve the work efficiency.
 (2) The XY axis is rack rotation, fast speed, high efficiency, empty line speed up to 60m/min. Servo motor makes machine stable running with low noise, high speed, and high accuracy.
 (3) High-speed drive stepper motor and driver. The Y-axis is driven by double motors, with high precision rack drive, and with the vigorous cutting of the spindle to make carving faster.
 (4) Adopt imported linear and square guide rail, big bearing force, smooth operation, high precision, long life, high precision imported ball screw, accurate cutting.
 (5) Gantry type movement, strengthen the table, can be arbitrary processing of the material on the table, strong and durable.

Technological Process

Application

Four processes CNC Wood Router for MDF cutting wooden furniture cabinet door making

♦ It is mainly used for the woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mold industry, wood panel, wave board processing, MDF sheet carving, screen, calligraphy tablet design, relief, wood furniture, computer tables, panel furniture, office furniture, instrument industry, and so on. ♦ It can also be for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Lightbox mold.

Sample Display

Company Introduction

Jinan Mingshi Machinery Equipment Co., Ltd

Our company was established in 2010, we have 11 years of experience in CNC Router and Industrial laser equipment integrating R&D, design, sales, and production.
We have CE and SGS certification, units that value quality and keep promises.
We have a CNC router, wood router, fiber laser cutting machine, and industrial laser equipment.
Team
We have professional technical and salesman participates in more than 50 large-scale industrial exhibitions at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has a modern workshop. There are about 100 production technical personnel and more than 15 research personnel.
After Sales Services
After Sales Services
We have professional pre-sales and after-sales service Mingshi CNC team
 1. 24/7 online service.
 2. 3 years warranty for the machine.
 3. After-sale office in a different country
 4. Free spare parts with shipping.
 5. Free online technical support and installation train.
Shipping and Packing
Packaging Details
1. Outside package: Standard export plywood case for CNC Router for advertising. 2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
FAQ
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time.
you haven't found the machine you need, don't hesitate to contact us too.  We will do best to give you the best suggestion. We can also supply products related to our machines
