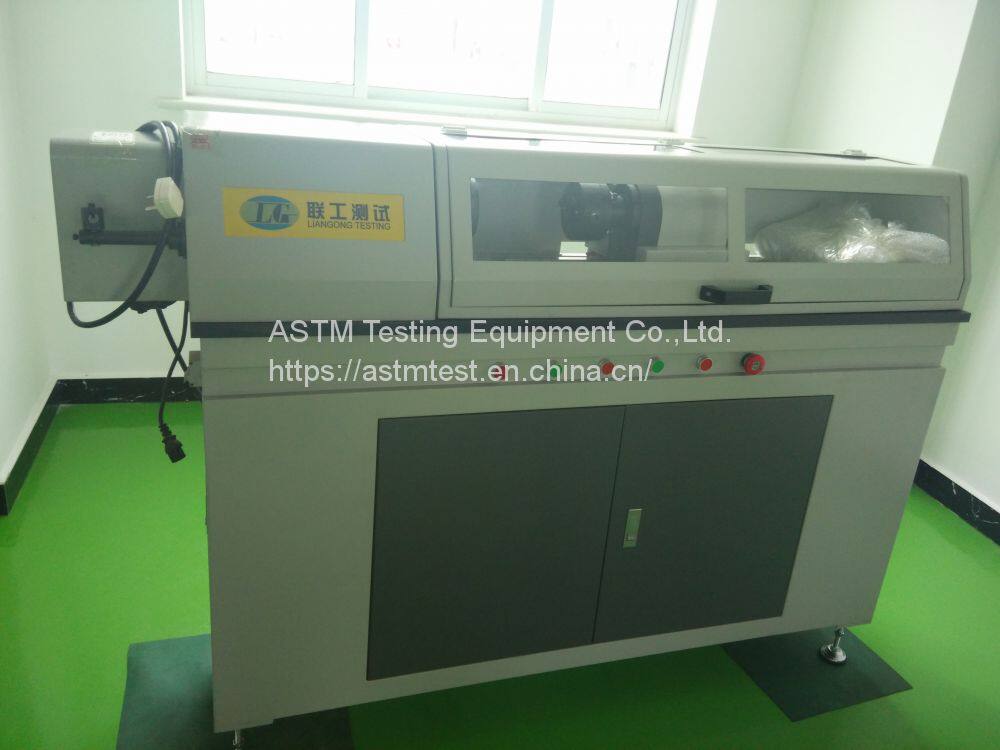

5000N.m Digital Torsion Tester for Steel Bar Aluminum Bar NDS-5000

1.Usage:

This machine is used for metal, non-metallic, composite materials and components torsion performance test. The machine has characteristic of stable and reliable operation, high adaptability to the environment, wide measuring range, high resolution and high precision. Such as torsional failure of materials, torsional shear modulus, multi-step torque loading test. Equip the torsion meter , it can measure the shear modulus, the provisions of non-proportional torsional stress.

Mainly applicable to the measurement of quality inspection; automotive, transmission machinery, bolt fasteners, metallurgical steel, machinery manufacturing, civil aviation, universities, research laboratories, commodity inspection arbitration, technical supervision departments, building ceramics, petrochemical and other industries Mechanical laboratories, is factories, schools and scientific research units ideal experimental equipment.

2.Standards

Test methods meet the standard GB10128-88 "metal room temperature torsion test method", ISO7800: 1984 "metal wire one-way torsion test method", ASTM A938-2004 "metal wire torsion test standard test method", EN, JIS torsion test Requirements. Replace corresponding accessories can also meet the GB943-1988, HB7595-2011, GJB358-1987 for bolts torsion test requirements.

3. Performance Features

3.1. Servo motor drive, ensure the reverse speed constancy.

3.2. Cyclonical reducer drive, ensure driving high efficiency and stability

3.3. Electrical control system has a high stability, operation is stable and reliable, fast response, low noise, adjusting parameters according to different models, making the equipment running in the best state.

3.4. Equipped with overload protection, scram and other safety protection functions.

3.5. Test software of English Windows platform, has a strong data and graphics processing functions, can be printed out complete test reports and test curve immediately.

3.6. Equipped with torque value, the automatic tracking measurement of torsion angle, loading rate indicating, peak holding and other functions.

3.7. Test data can automatic process and display, and print out the test date, number, material quality, reverse, strength and other test report.

3.8. Adopting high precision linear guide, ensure the equipment coaxiality and parallelism.

4.Main Technical Parameters
