Product Description

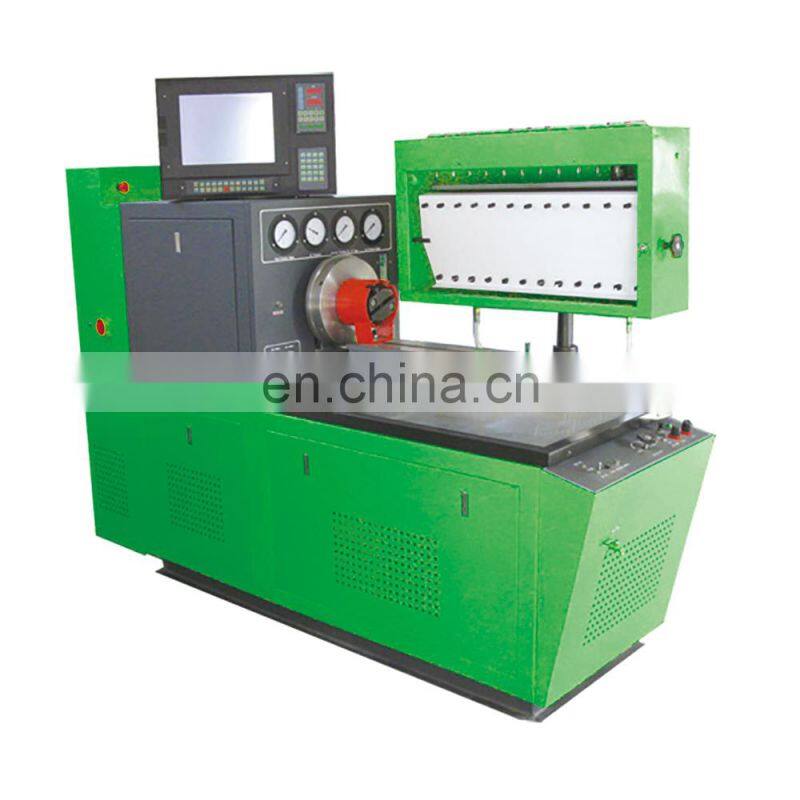

lower price diesel fuel injection pump test
bench COM-EMC fuel pump test bench
COM-EMC, which is measured and controlled by the computer in real time. It is necessary testing equipments of diesel engines, auto and tractors manufacturers, as well as ideal products of pumps repairing.
The test stand includes 5.5KW, 7.5KW, 11KW, 15KW etc. according to its power.
video link : /video/id_XMzUzNzYwNjYwMA==.html?spm=a2h0k.8191407.0.0&from=s1.8-1-1.2&source=
1. Measurement of each cylinders delivery at various rotation speeds;
2. Checking of each cylinders injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors positive pressure performance;
6. Checking of the pneumatic speed governors vacuum performance;
7. Measurement of the reflux delivery of distributor pumps;
8. Measurement of the distributor pumps body internal pressure;
9. Checking of the pressure compensators performance (with LDA);
10. Checking of sealing of fuel injection pump body;
11. Measurement of the advance angle;
12. Measurement of rack travel.
1. Changing frequency changing rotation speed;
2. Low fall of rotation speed and high output torque;
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Seven kinds of rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;
9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are measured and controlled by computers in real time, then displayed by 19'' LCD;
10. Built-in air resource;
11. All data can be made into reports and printed;
12. Having the functions of oil level display and alarm;
13. Automatically generating and displaying speed characteristics curve;
14. The data of the pumps can be saved, modified and obtained pump database;
15. It is very easy to find the data of the pumps in pumps database;
16. Windows operating system.
|
Adjustable rotation speed range |
0~4000RPM |
|
Double series of graduates |
45CC, 150CC |
|
Volume of oil tank |
60L |
|
Temperature stabilization |
40±2 |
|
Test oil filtering unit |
5μ |
|
DC. Supply |
12/24V |
|
Feed pressure |
0~0.4MPa (low), 0~4MPa (high) |
|
Air pressure (MPa) |
-0.03~0.3 |
|
Rack travel range |
0~25mm |
|
3-phase power supply |
380V/50Hz or on request |
|
Flywheel inertias moment |
0.8kg·m2 |
|
Center height |
125mm |
|
Output power |
5.5kw, 7.5kw, 11kw and 15kw or on request |
|
Overall dimensions (mm) |
2100×960×1750 |
|
Net weight (kg) |
1300 |
Taian Sunshine Industry CO.is specialized in the sell of diesel fuel injection systems parts for diesel engines.our main parts are Diesel Common Rail Nozzle, Diesel Common Rail Control Valves of different brands, Diesel Common Rail Sensor, SCV Valve, Common Rail Diesel Repair Kits, High Pressure Common Rail Injectors....Today we have established a professional working team under the spirit of “best quality and service in China”.
Taiansunshine expects to make prosperity together with you.
