diesel injection pump test bench CRS728C test bench common rail turbocharger test bench



Product Description



    CRS-728C test bench is special device to test the performance of high-pressure common rail pump and injector.

1.  it can test common rail pump, injector and piezo injector.

2. It can add EUI/EUP test system and C7 C9 , test 320D common rail pump

3. oil measurement and rail pressure are all controlled by industrial computer by real time.

4. The data is also obtained by computer. 19 LCD screen display makes the data more clear, more than 2000 kinds of data can be searched and used.

diesel injection pump test bench CRS728C test bench common rail turbocharger test bench



 >>>FUNCTIONS



Common Rail Injector

Common Rail Pump

1. Test brands : BO-SCH ,DE-NSO,DE-LPHI,SI-EMENS

2. Test the sealing of injector.

2.Test the sealing of common rail injectors.

3. Test the pre-injection of the injector.

3. Test the internal pressure of common rail pump.

4.  Test the maximum oil quantity of the injector.

4.Test ratio solenoid of common rail pump.

5. Test the starting oil quantity of the injector.

5. Test feed pump function of common rail fuel pump.

6. Test the average oil quantity of the injector.

6. Test flow of common rail pump.

7. Test the oil return quantity of the injector.

7. Test rail pressure in real time.

8.  It can generate QR code.

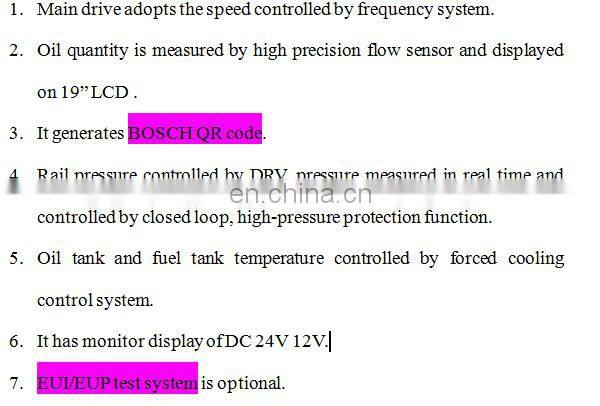

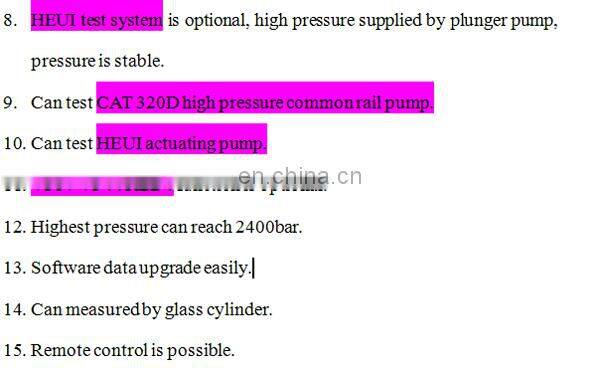

>>>CHARACTERISTICS



diesel injection pump test bench CRS728C test bench common rail turbocharger test benchdiesel injection pump test bench CRS728C test bench common rail turbocharger test bench



>>>TECHNICAL PARAMET



Pulse width

0.1-3ms adjustable.

Fuel temperature

40±2°C

Rail pressure

0-2400 bar

Test oil filtered precision

5μ

Input power

380V/50hz/3phase or 220V/60hz/3phase

Rotation speed

100~4000RPM

Oil tank capacity

60L

Flywheel inertia’s moment

0.8KG.M2

Center height

125MM

Output power

15KW

Overall dimension(MM)

1900×800×1550

Weight

1100 kg.

Control loop voltage

DC24V/12V

Center height

125MM

Flywheel inertia

0.8KG.M2

Common rail pump

CP3.3
Detailed Images

 diesel injection pump test bench CRS728C test bench common rail turbocharger test bench                       diesel injection pump test bench CRS728C test bench common rail turbocharger test bench



           HP0 pump TEST                                                          HEUI TEST

diesel injection pump test bench CRS728C test bench common rail turbocharger test bench       diesel injection pump test bench CRS728C test bench common rail turbocharger test bench



                 EUI EUP TEST                                                  INJECTOR TEST

diesel injection pump test bench CRS728C test bench common rail turbocharger test bench      diesel injection pump test bench CRS728C test bench common rail turbocharger test bench

                  CP3 PUMP TEST                                                 Auxiliary





diesel injection pump test bench CRS728C test bench common rail turbocharger test bench
