High quality Test bench COM-D repair major
for common rail injection pump to check Inline pump

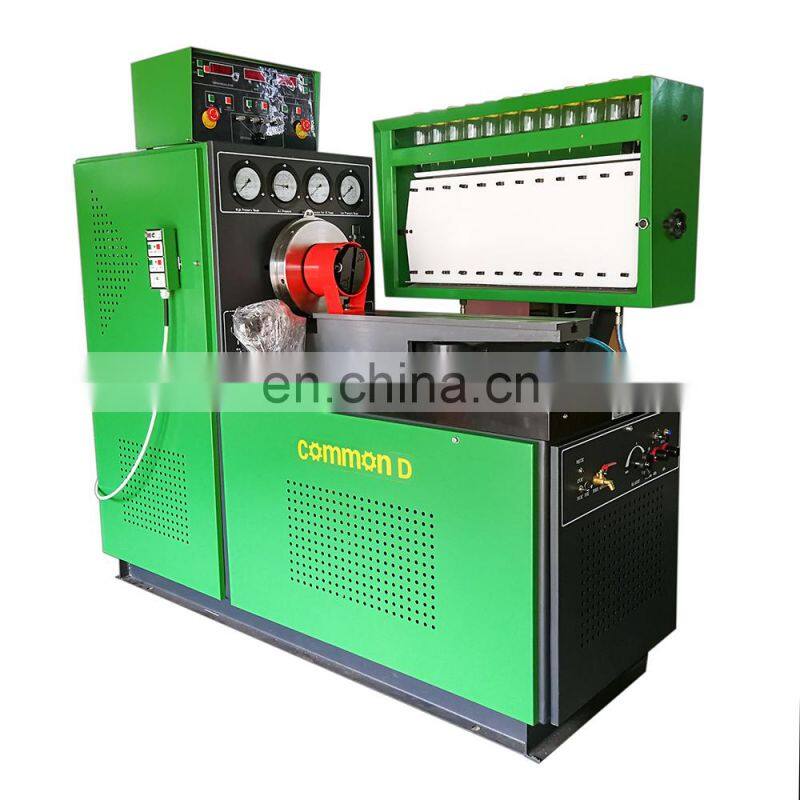

COM-D Common Rail Pump Tester
test bench for diesel fuel injection pump
1.Changing frequency changing rotation speed, low fall of rotation speed and high output torque;
1.Measurement of each cylinders delivery at various rotation speeds;
2.Checking of each cylinders injection time with static state;
3.Checking of the mechanical speed governors;
4.Checking of the electromagnetic valve of distributor pumps;
5.Checking of the pneumatic speed governors positive pressure performance;
6.Checking of the pneumatic speed governors vacuum performance;
7.Checking of sealing of fuel injection pump body.
|
Adjustable rotation speed range |
0~4000RPM |
|
Double series of graduates |
45CC, 150CC |
|
Volume of oil tank |
60L |
|
Test oil filtering unit |
5μ |
|
DC. Supply |
12/24V |
|
Feed pressure |
0~0.4MPa (low), 0~4MPa (high) |
|
Air pressure (MPa) |
-0.03~0.3 |
|
3-phase power supply |
380V/50Hz or on request |
|
Flywheel inertias moment |
0.8kg·m2 |
|
Center height |
125mm |
|
Output power |
5.5kw, 7.5kw, 11kw and 15kw or on request |
|
Overall dimensions (mm) |
1800×960×1750 |
|
Net weight (kg) |
1300kg |
We can accept T/T
Delivery Time:10-15days after received your payment.
Package:Plywood case
