Common Rail HEUI-200 Test Bench for C7 C9 C-9
Product Description

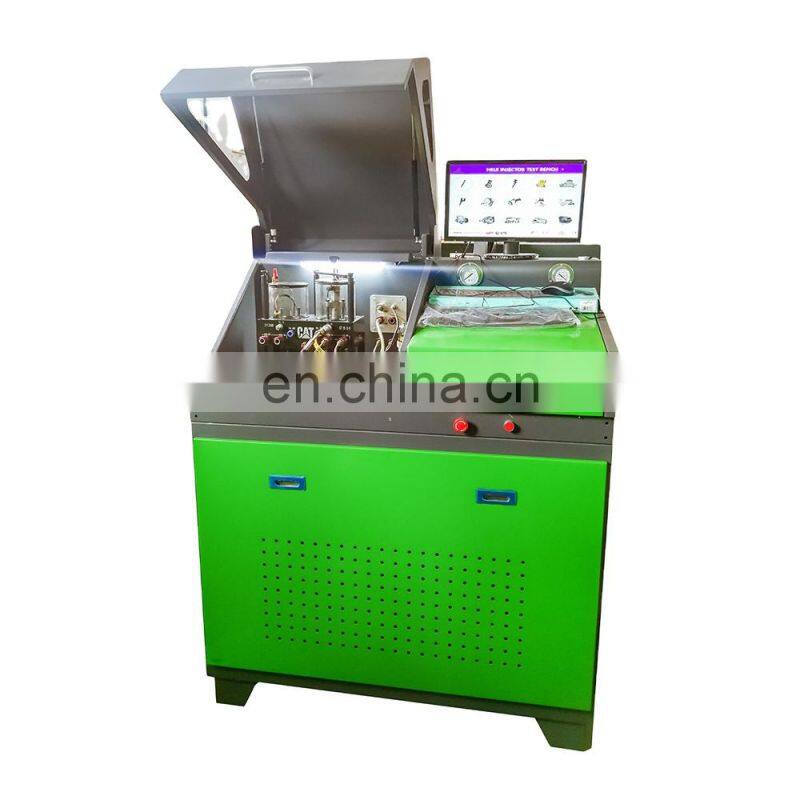

HEUI-200 Common Rail Injector Tester
HEUI-200 It can test HEUI produced by most manufacturer.
It completely simulates the injection principle of HEUI.
Oil measurement,fuel temperature,lub.oil temperature,injection time,injection pulse frenquency are all with digital display.
Lub.oil pressure is displayed by shakeproof pressure gauge.
Clear display, stable work, high control accuracy.
Drive signal can be adjusted, you will have a safe repairing maintenance.
>>>CHARACTERISTIC
| Controlled by industrial computer at real time, Windows operating system; |
| Oil quantity is measured by sensor and displayed on LCD; |
| Injection drive signal pluse width and frequency is adjustable; |
| The drive signal’s percentage is adjustable; |
| Short circuit protection function; |
| The injection time or injection times of injector can be set by yourself; |
| Date can be searched and saved. |
>>>FUNCTION
| Test C7,C9 and other HEUI; |
| Test the high-speed oil quantity of HEUI; |
| Test the medium-speed oil quantity of HEUI; |
| Test the cranking oil quantity of HEUI; |
| Test the sealing of HEUI |
| Injector testing frequency: | 50~2000 rpm; |
| Pulse width: | 0.1~200 ms; |
| Injection time: | 1~100s ; |
| Lub.oil pressure: | 0~25Mpa; |
| Fuel pressure: | 0~0.3 Mpa ; |
| Input power: | 380V/50hz/3phase or 220V/60hz/3phase |
| Fuel temperature: | 40°C; |
| Lub.oil temperature: | 40°C; |
| Overall dimension(MM): | 1120×800×1560; |
| Weight: | 400KG. |
