Rated voltage: Uo/U=3.6/6kV～26/35kV
Maximum continuous operating temperature: 90℃
Maximum short circuit temperature of conductor: 250℃(5Sec. max. duration)
Minimum ambient temperature for installation: 0℃
Minimum bending radius of cable: 12×OD(single core), 9×OD(three core)
Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > MV XLPE Insulated Marine Cable Of 3.6/6kV To 26/35kV

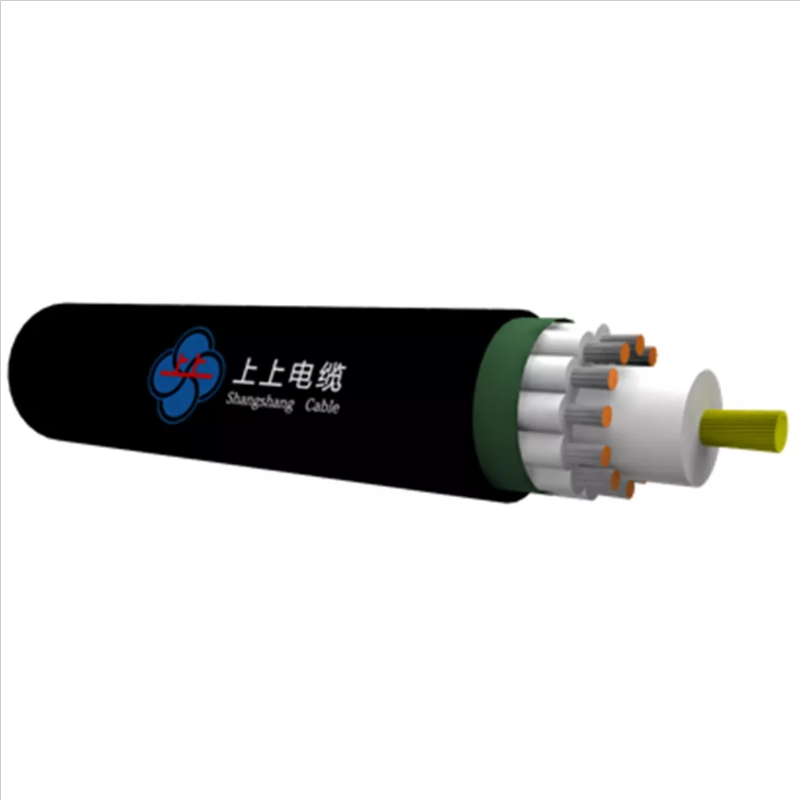

MV XLPE Insulated Marine Cable Of 3.6/6kV To 26/35kV
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oil Rig Cables Of Rated Voltage Up To 2000VNegotiableMOQ: 1 Piece -
Reeling Cable Of 0.6/1kV To 12/20kVNegotiableMOQ: 1 Piece
-
MV EPR Insulated Marine Cable Of 3.6/6kV To 26/35kVNegotiableMOQ: 1 Piece
-
2000V Topdrive Power CablesNegotiableMOQ: 1 Piece
-
Reeling Cable With Fibre Optical From 3.6/6kV To 12/20kVNegotiableMOQ: 1 Piece
Brand Name
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin
China
APPLICATION:
These MV XLPE marine power cables are suitable for fixed installation in power circuits on various ships, offshore platform, etc.
STANDARD:
IEC 60092-350, IEC 60092-354, IEC60092-360, IEC60228
CONSTRUCTION:
1.Conductor: bare or tinned stranded circular annealed copper wires
2.Conductor screen: semi-conducting layer
3.Insulation: XLPE
4.Insulation screen: semi-conducting layer
5.Metallic screen: copper tape or copper wire
6.Filler and binder tape (for 3-core cable only)
7.Inner sheath(optional): extruded PVC or LSHF compound
8.Armour(optional): braided tinned copper wire (or braided galvanized steel wire)
9.Outer sheath: extruded flame-retardant PVC, or LSHF polyolefin (SHF1)
NUMBER OF CORES AND RANGE OF SIZE:
These MV XLPE marine power cables are suitable for fixed installation in power circuits on various ships, offshore platform, etc.
STANDARD:
IEC 60092-350, IEC 60092-354, IEC60092-360, IEC60228
CONSTRUCTION:
1.Conductor: bare or tinned stranded circular annealed copper wires
2.Conductor screen: semi-conducting layer
3.Insulation: XLPE
4.Insulation screen: semi-conducting layer
5.Metallic screen: copper tape or copper wire
6.Filler and binder tape (for 3-core cable only)
7.Inner sheath(optional): extruded PVC or LSHF compound
8.Armour(optional): braided tinned copper wire (or braided galvanized steel wire)
9.Outer sheath: extruded flame-retardant PVC, or LSHF polyolefin (SHF1)
NUMBER OF CORES AND RANGE OF SIZE:
Voltage |
Single core CSA |
Three-core CSA |
3.6/6kV |
10mm2～300mm2 |
10mm2～240mm2 |
6/10kV |
16mm2～300mm2 |
16mm2～240mm2 |
8.7/15kV |
25mm2-300mm2 |
25mm2～240mm2 |
12/20kV |
35mm2～300mm2 |
35mm2～240mm2 |
18/30kV |
50mm2～300mm2 |
50mm2～240mm2 |
CORE IDENTIFICATION:
Single core: natural colour
Three cores: Coloured plastic tape shall be inserted under metallic screen. Red, yellow, green, or red, yellow, blue; or brown, black, gray
Three cores: Coloured plastic tape shall be inserted under metallic screen. Red, yellow, green, or red, yellow, blue; or brown, black, gray
SHEATH COLOR:
Red, or as per order.
USAGE CHARACTERISTICS:
CERTIFICATION:
ABS、GL、DNV、BV、KR、LR、CCS、TUV、NK、RINA
ABS、GL、DNV、BV、KR、LR、CCS、TUV、NK、RINA
SPECIAL FEATURES ON REQUEST:
