Help CenterSF6 Powell Lens Diameter 2mm Angle 90 Degrees Wavelength 405nm 532nm 650nm 808nm
Related Products
-
BK7 Powell Lens Diameter 5mm Angle 53 Degrees Wavelength 405nm 532nm 650nm 808nmUS$ 12 - 30MOQ: 1 Piece -
Optical Glass Collimator Lens M9X0.5mm EFL6.5mm Wavelength 405nm-450nmUS$ 1.5 - 5MOQ: 1 Piece
-
Laser Collimator Lens M8X0.5mm EFL8.3m Wavelength 630-670nmUS$ 1.5 - 5MOQ: 1 Piece
-
Aspherical Collimator Lens Spherical Collimator Lens Laser Collimator LensUS$ 1.5 - 5MOQ: 1 Piece
-
Laser Collimator Lens M8XP0.5-8mm EFL 6.2mm 400-700nm CoatedUS$ 1.5 - 5MOQ: 1 Piece

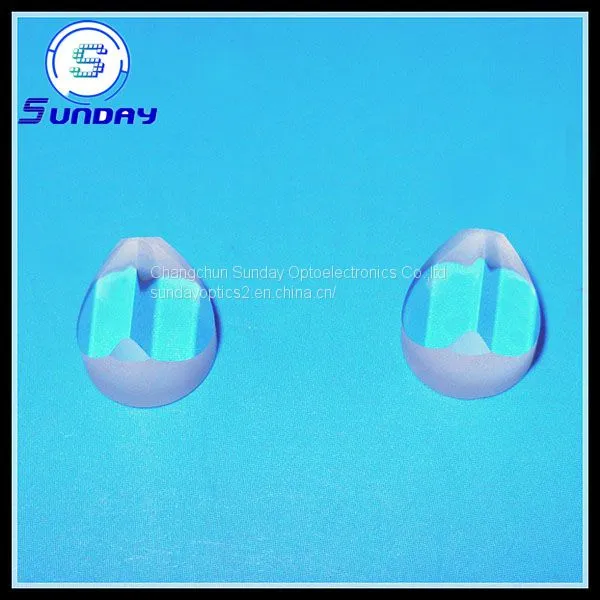

The Powell Lens is one kind of aspheric cylinder lens, which can transform laser beam into a uniform straight laser line.
By using Powell Lens, you will get more even energy distribution along the laser line than using the rod lenses and lenses.
At present our Powell lens are available in fan angles of 3degree to 120degree.
The optical line generator lens is optimized for a Φ0.8mm, Φ1mm,Φ2mm,Φ3mm,Φ5mm and Φ10mm input laser beam diameter. Using this design will result in an impressive, even distribution of energy along the length of the line. These lenses offer excellent overall stability and line quality. They outperform cylindrical lens that generate Gaussian beam profiles with hot-spot center points and fading edges.
Originally designed for laser line generators, they are now offered uncounted for a variety of custom applications including use in alignment, machine vision systems, construction and process control.
The Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields. At present our Powell Lens are available in a variety of fan angles as following.
| Fan angle | Materials | Wavelength(nm) | Input beam(mm) |
| 5° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 10° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 30° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 45° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 53° | BK7 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 60° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 70° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 85° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 90° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 110° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
| 120° | SF6 | 405nm 532nm 650nm 808nm | 0.8-1、2-3、5 |
