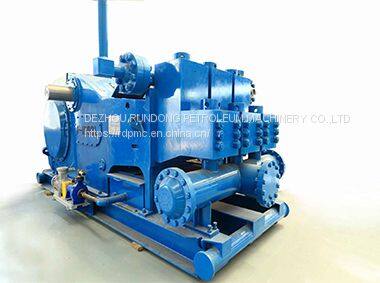

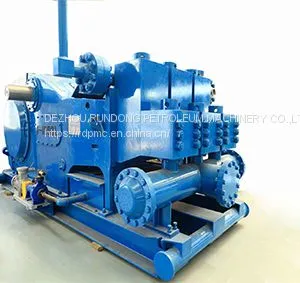

F-1600HL High Pressure Mud Pump
Features:
F1600HL high pressure mud pump has a max. working pressure of 7,5000PSI and a displacement of 46.5L/S with 6" liner size. It belongs to high pressure pump. This model is the first choice for the medium and deep drilling rig. The F1600 triplex has a max working pressure of 5,000 PSI and a displacement of 46.5L/S with 7"mud pump liner size.
F-1600HL high pressure mud pump liner specifications
Model |
F-1600HL |
Max. Liner size*stroke |
190*305(7-1/2*12) |
Stroke Rating r/min |
120 |
Power Rating, kw(HP) |
1176(1600) |
Gear Type |
Herringbone |
Gear Ratio |
4.31:1 |
Lubricatiing |
Forced and splashing |
Discharge Outlet Flange |
1300mm(5”) Flange 10000 psi 70MPA |
Discharge flange size: |
130mm (5-1/8”) |
Work pressure |
3350 psi (23.1 Mpa)-7500psi (51.7 Mpa) |
Valve pots |
L type, API 7# |
Valve box static pressure test: |
77.6Mpa (11200 psi) |
Approx. Weight (KG) |
32,000KG |
Overall dimensions (mm) |
5200*2500*2000mm |
As one of the most professional oilfield equipment companies, we provide china mud pump parts, oil drilling equipment for sale, discharge manifold equipment, oil drilling tools equipment, short catch overshot and etc. Want to know mud pump liner size pressure or more? Please contact us.
