Factory Price Cartoner Paper Box Automatic Cartoning Machine for Cosmetic Tubes, Bottles, Jars

Factory Price Cartoner Paper Box Automatic Cartoning Machine for Cosmetic Tubes, Bottles, Jars photo-1
Factory Price Cartoner Paper Box Automatic Cartoning Machine for Cosmetic Tubes, Bottles, Jars photo-2
Factory Price Cartoner Paper Box Automatic Cartoning Machine for Cosmetic Tubes, Bottles, Jars photo-3
Factory Price Cartoner Paper Box Automatic Cartoning Machine for Cosmetic Tubes, Bottles, Jars photo-4
Factory Price Cartoner Paper Box Automatic Cartoning Machine for Cosmetic Tubes, Bottles, Jars photo-5
US$ 15000 - 25000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chuangxian
Place of Origin:
China
Model Number:
CXZ-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
30 days
Brand Name Chuangxian
Place of Origin China
Model Number CXZ-100
Certification CE ISO9001
After-sales Service Provided No overseas service provided
Weight 1500KG
Dimension(L*W*H) 3400*1600*1800MM
Voltage 220V /380V
Power 1.5KW
Application Other, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Paper
Packaging Type Cartons


Product Application

This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for bottle package product, adjust automatic feeding structure conveniently. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.

Technical Parameters
Model
CXZ-100
Encasing Speed
30-80 box/min
Carton Quality Requirement
250+350g/m2 (Base on carton size)
Carton Dimension Range
L: 70-180mm, W: 35-85mm, H: 14-50mm
Leaflet Quality Requirement
60-70g/m2
Unfolded Leaflet Specification
(80-250)*(90-170)mm
Fold Range
1-4 folds
Working Air Pressure
0.6Mpa
Air Consumption
120-160L/min
Voltage
220V 50Hz
Power
0.75KW
Dimension
3400*1600*1900mm
Weight
1500kg

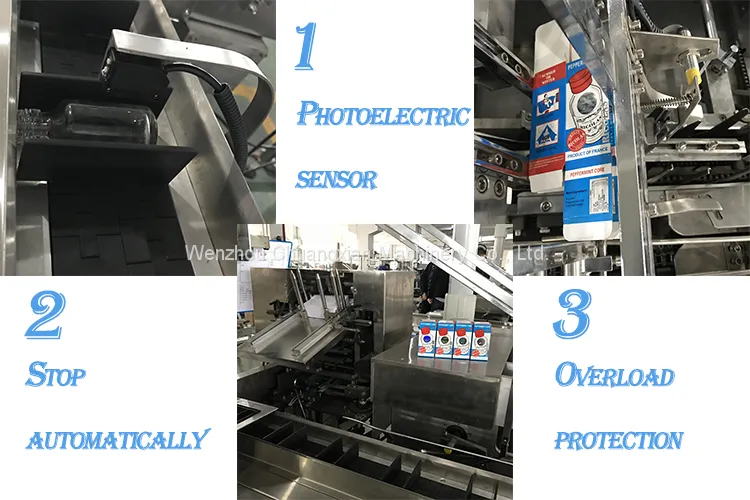

Main Features

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, alarm and count finished products.
6. Stable performance,operation is easy.

Wenzhou Chuangxian machinery CO., Ltd is a professional manufacturer and supplier of semiauto and automatic cartoning machine in China.

We have a well-experienced team to manufacture cartoning machinery and equipment and a professional design institute. With rich experience in packaging machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are CXZ-100, CXZ-120 and CXZ-280 automatic cartoning machine.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In Chuangxian you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.

Machine are inspected by QC and took testing video before delivery;Exported Standard Box Package.
