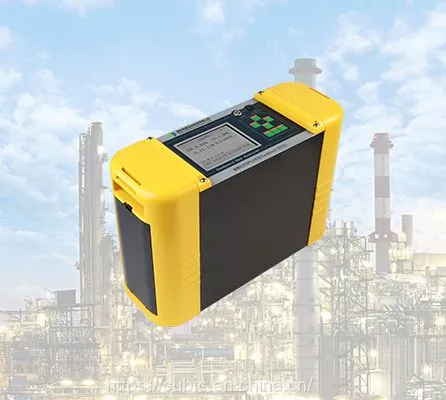

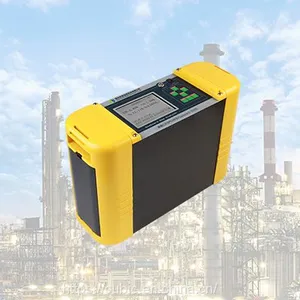

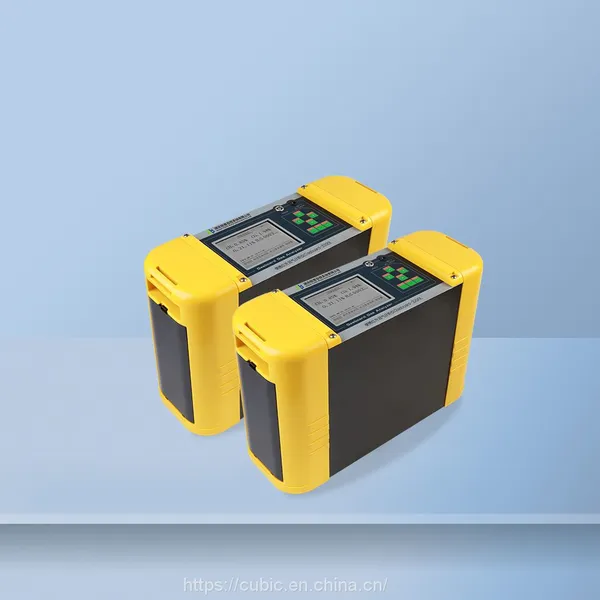

On-line CO CO2 O2 CH4 N2 Syngas Analyzer
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
Better Stability Automobile Exhaust Emission Tester Gas Analyzer Cleanable NDIR Gas Chamber
-
Opacity Meter Automobile Exhaust Gas Analyzer
-
NDIR Gas Bench CO, CO2, HC Test Bench
-
Factory Supply Micro Flow NDIR Gas Bench CO, CO2, CH4, SF6, SO2 NO Gas Analyzer
-
Ultra-low Range UV-DOAS Gas Bench with Automatic Temperature Compensation
-
High Accuracy Industrial Flue Gas Analyzer Gas Detector
Product Details
| Brand Name | Cubic Instruments | Place of Origin | China | |
| Model Number | Gasboard-3100P |
Product Description
Introduction

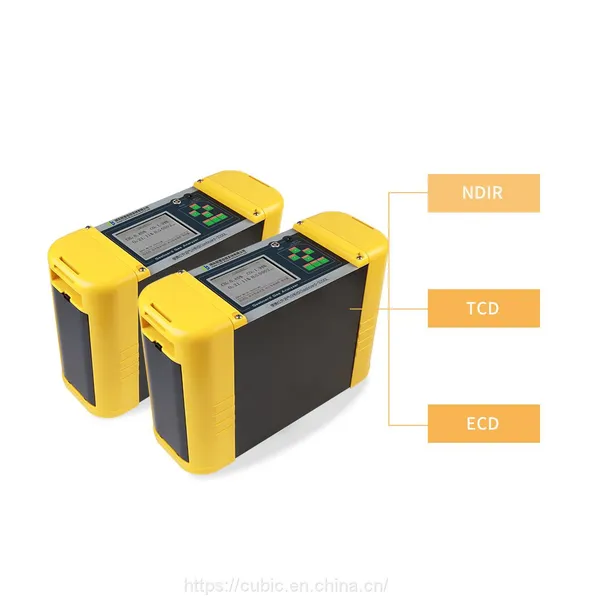

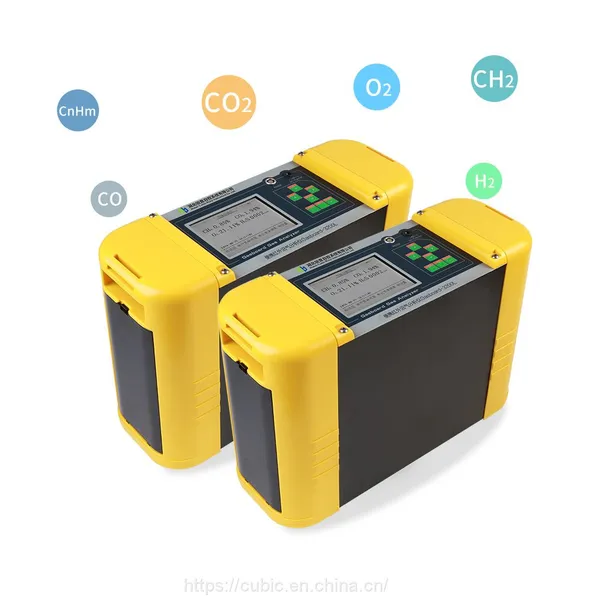

Gasboard-3100P is a portable syngas analyzer based on NDIR, TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2, O2, CnHm, C2H2, C2H4 or any of their combination and calculate heat value.
Features
1. PCT approved product based on IR & TCD technologies to measure syngas composition. (EU and US Authorization No.: EP2796856 , US9857323).
2. Replacement to gas chromatography, mass spectrometry.
3. Patented NDIR and TCD technology, including ECD technology for reliable measurement of eight gases.
4. High-selectivity CH4 gas sensor, no interference from other hydrocarbons.
5. Fully compensated H2 sensor, no interference from CO, CO2, CH4 based on intelligent correction.
6. Built-in sample pump, flow meter and filters and battery for portable operation
7. Internal data record and RS232 COM port for data output.
8. Modular sensor design , easy maintenance.
Specifications
| Gas | CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/calorific value calculation |
| Measurment Principle | CO/CO2/CH4/C2H2/C2H4/CnHm：NDIR； H2：TCD； O2：ECD |
| Measurment Range | CO/CO2/CH4/H2:(0~100)%O2:(0~25)%； C2H2/C2H4/CnHm:(0~10)%（optional） |
| Accuracy | CO/CO2/CH4/C2H2/C2H4/CnHm:±1%F.S.； O2/H2:±2%F.S. |
| Resolution | 0.01% |
| Repeatability | ≤1% |
| Response time | T90＜15s (NDIR) |
| Optimal flow Rate | (0.7~1.2) L/min |
| Inlet Gas Pressure | (2~50) kPa |
| Gas Condition | No Tar, No Dust and No Water |
