Foton 4x2 LHD RHD 6cbm Compressed Garbage Compactor Truck

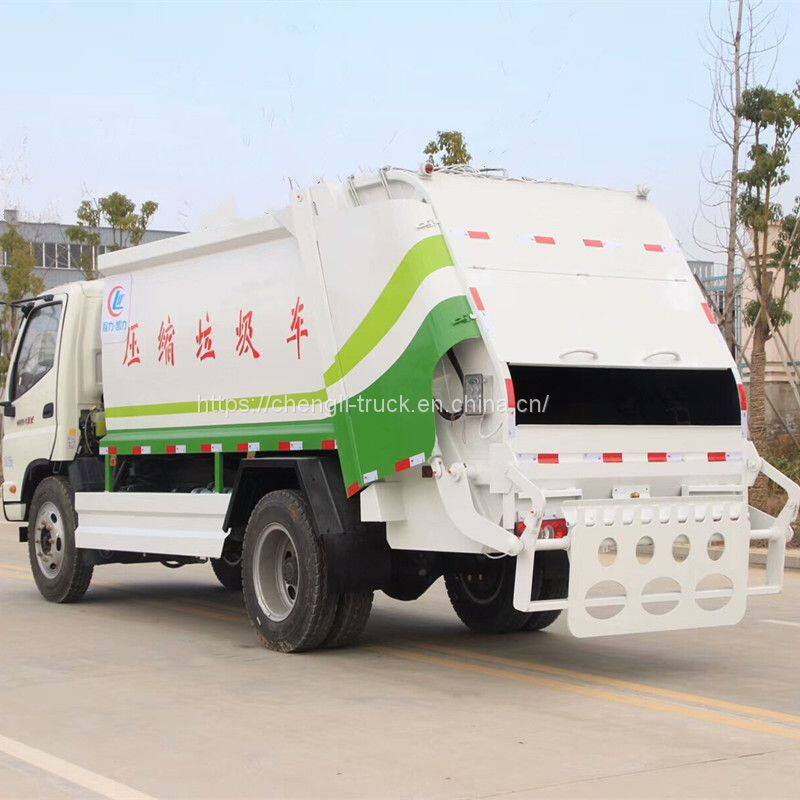

Foton 4x2 LHD RHD 6cbm Compressed Garbage Compactor Truck photo-1

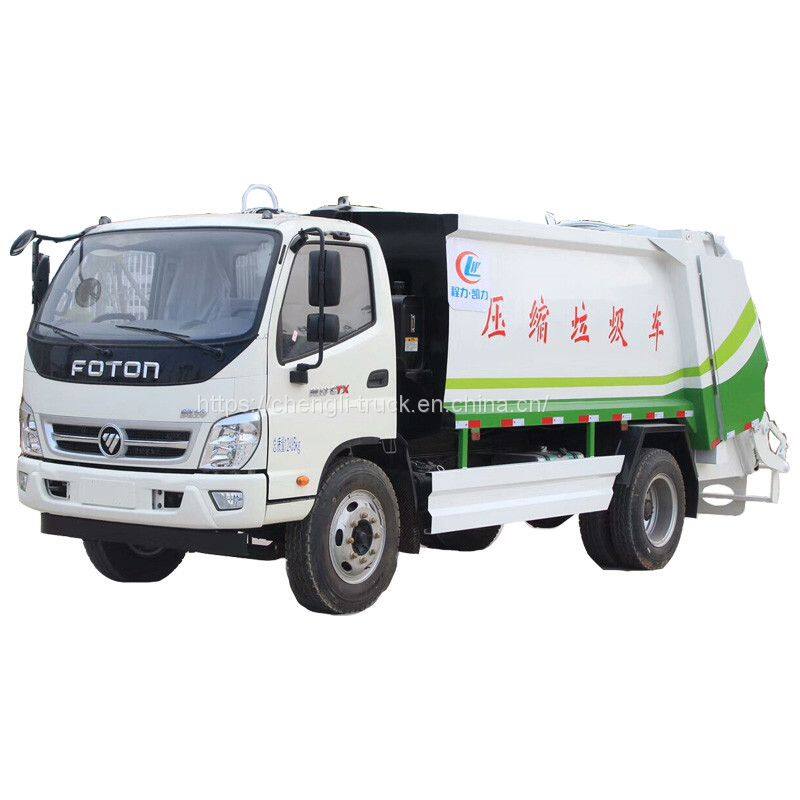

Foton 4x2 LHD RHD 6cbm Compressed Garbage Compactor Truck photo-2

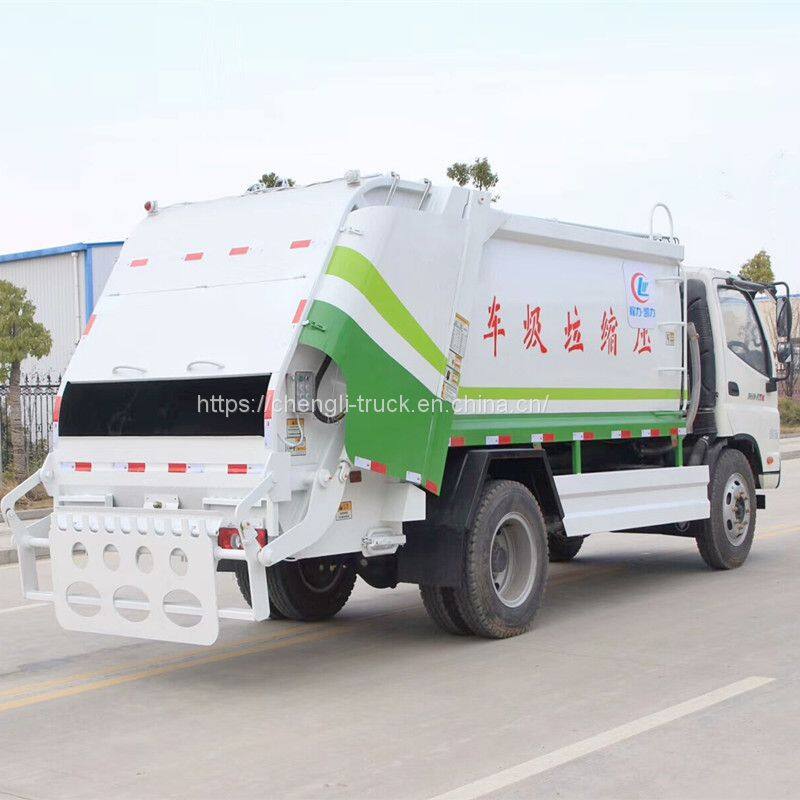

Foton 4x2 LHD RHD 6cbm Compressed Garbage Compactor Truck photo-3
US$ 20000 - 30000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Foton
Place of Origin:
China
Model Number:
BJ5080ZYS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Foton
Place of Origin China
Model Number BJ5080ZYS
Type Compactor
Size 6590x2200x2550mm
Certification 3C,ISO
After-sales Service Provided No overseas service provided
Condition New
Transmission Type Manual
Volume 3001 - 6000L
Gross Vehicle Weight 8275
Engine Capacity 4200cc
Fuel Type Diesel
Emission Standard Euro 3
Drive Wheel 4x2

Foton 4x2 LHD RHD 6cbm compressed garbage compactor truck

Garbage compactor truck, compactor garbage truck, adopt electromechanical hydraulic integration technology, adopt mechanical, electrical and hydraulic combined automatic control system, and realize garbage loading, crushing or flattening, strong loading through special devices such as container, loader and bulldozer, so as to compact and squeeze the garbage into the container and transport it to the destination for automatic pushing and unloading.

Its outstanding features: the garbage collection method is simple, high-energy, has the functions of repeated compression and creep compression, high compression ratio, large loading quality, automatic operation, good power and environmental protection, and high utilization efficiency of the whole vehicle.

You can customized truck brand(Dongfeng, Foton, Sinotruk, Shacman, FAW,JAC,JMC,Isuzu,etc.) and drive type, 4x2,4x4, 6x2,6x4,6x6, 8x4,left hand drive or right hand drive,  engine power, emission standard.

You can customize garbage container volume: from 1cbm to 25cbm.

You can customize rear garbage loading way: Bucket turnover frame, small triangle bucket, large landing bucket, swing arm bucket.


Product specifications:

Truck brandFoton
CabinSingle row, with A/C
Drive4x2, left hand drive or right hand drive
EngineYC4D130-33, 130hp, Diesel
Transmission

6 forward gear, 1 reverse, manual

Front axle/Rear axle2.2ton/5.5ton
Tyre7.50R16,6+1
Loading weight5-6ton
Curb weightApprox 5900kg

Upper body

6cbm garbage container.

Q345 manganese steel, side 4, bottom 4, power take-off,

hydraulic oil cylinder, hydraulic oil pump, multi-way valve,

sealing ring, pressing plate, scraper, filling box, operation box, hanging barrel turnover frame or triangular bucket at the tail,

lifting of filling box, unloading at the rear, etc.

Please contact me to get more information about this product.
