Help CenterH-Beam Straightening Machine
Related Products

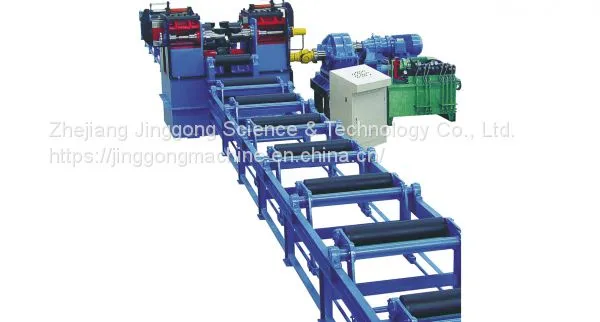

H-Beam Straightening Machine is mainly used for the angle distortion straightening of heavy H-beam, it adopts hydraulic straightening which will have a strong straightening force and large straightening range and with high working efficiency and good quality.
We can design and manufacture different specifications of H Beam bending machine according to the different requirements of the client.
The suitable feeding materials for the straightener:
flange thickness: 8-60 mm
flange width: 180-800 mm
web height: 350 mm
web thickness: 8-40 mm
Parameters Of H-Beam Straightening Machine
Item |
Parameters |
|
Model |
JJZ60B |
JJZ80B |
Flange plate width (mm) |
180-900 |
200-1000 |
Minimum web height (mm) |
≥350 |
≥350 |
High pressure correcting force (Kn) |
1500 |
2800 |
Corrected material thickness (mm) |
Q235≤0 Q345≤60 |
Q234≤100 Q345≤80 |
Max.straightening speed (m/min) |
5.5 |
6 |
Total Power (Kw) |
26 |
37 |
Special Features About H-Beam Straightening Machine
H type steel after welding, because of thermal expansion, the flange plate will bend, the JJZ60B straightening machine is special equipment used for the angle distortion straightening of heavy H beam. It is easy to operate, simple maintenance, high working efficiency, etc. It is widely used in metal structure industrial sectors such as huge building, water conservancy and bridge, metallurgical industry etc.
Jinggong is a professional roll forming machine company, we provide continuous sandwich panel line, continuous sandwich panel line, flame cutting machine for sale, etc.
