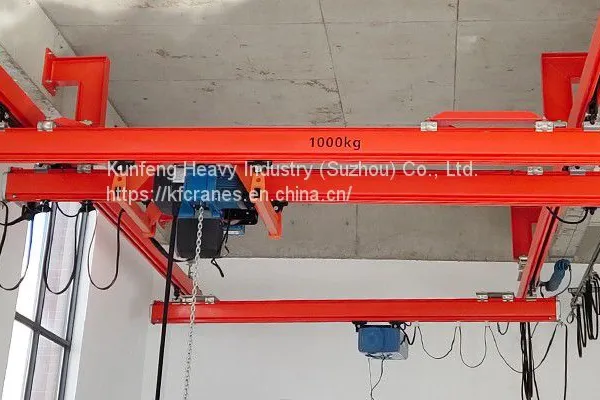

KBK Flexible Double Girder Suspension Crane Features
■ Higher Lifting Height
Because the lifting hoist is suspended on the small frame between the two KBK main beams, the kbk double girder crane can provide higher lifting space than the kbk single girder crane.
■ Larger Span
KBK flexible double-beam suspension crane can be multi-track suspension, thus achieving a large span to cover a larger storage and production area, the crane can easily move by hand, but when the crane track span exceeds 6m and the crane load exceeds 500kg, it is recommended to use an electric friction wheel to drive the walking scheme. The maximum span can reach 9 meters. The lifting weight is from 125kg to 2000kg.
■ Good Reliability, High Stability
The components of the crane system are all standard modules, which can ensure large-volume, high-quality production, so the system is very reliable. The main body of the system module is three kinds of cold-rolled profiles, high strength, good rigidity and light weight, ensuring the system stability.
■ Strong Adaptability
Flexible design and installation according to the needs of each station in the factory. From fixed-point delivery to high-accuracy multi-point, multi-beat automated conveyor lines, they can be combined at will. It can be used in newly designed workshops and can also be used for system retrofits and extensions.
■ Easy to Install, Cost-effective
The installation and commissioning of the kbk double-girder crane is very convenient. The profiles and the standard modules can be used only by bolt connection, which can save space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually or automatically and semi-automatically.
