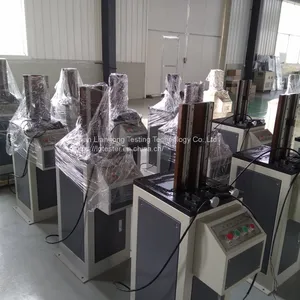

Help CenterCSL-B Notch Sample Making Machine for Metal Materials Lab Charpy UV Specimen Notch Cutting
Related Products
-
Metal V-notch Cutter Supplier and V-notch Cutter Blade for Charpy Test CSL-BUS$ 3000 - 8000MOQ: 1 Set -
CSL-B Sample-making Machine Price/Charpy Impact Notch Broaching MachineUS$ 3000 - 8000MOQ: 1 Set
-
CSL-B Electronic Double Broaches Sample UV Notching Cutting Machine for Charpy Impact TestUS$ 3000 - 8000MOQ: 1 Set
-
CSL-B Impact Cutting Machine Test Machine Manufacturer Material Test Machine PriceUS$ 3000 - 8000MOQ: 1 Set
-
V2mm U2mm Electric Charpy Impact Specimen Notch MachineUS$ 3000 - 8000MOQ: 1 Set
Performance Characteristics:

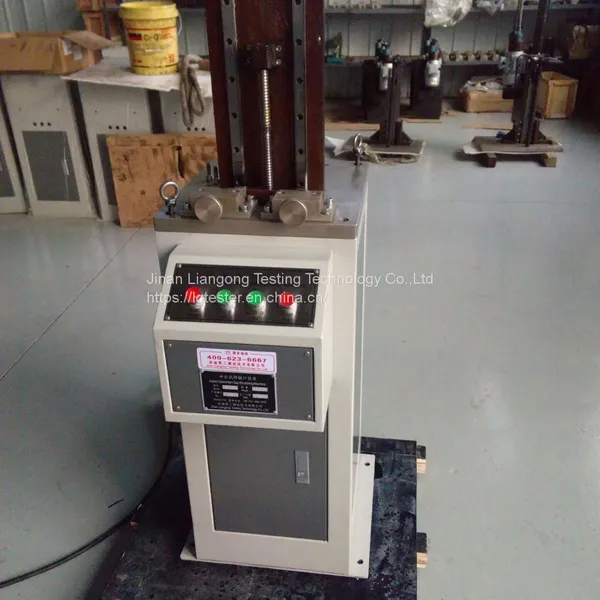

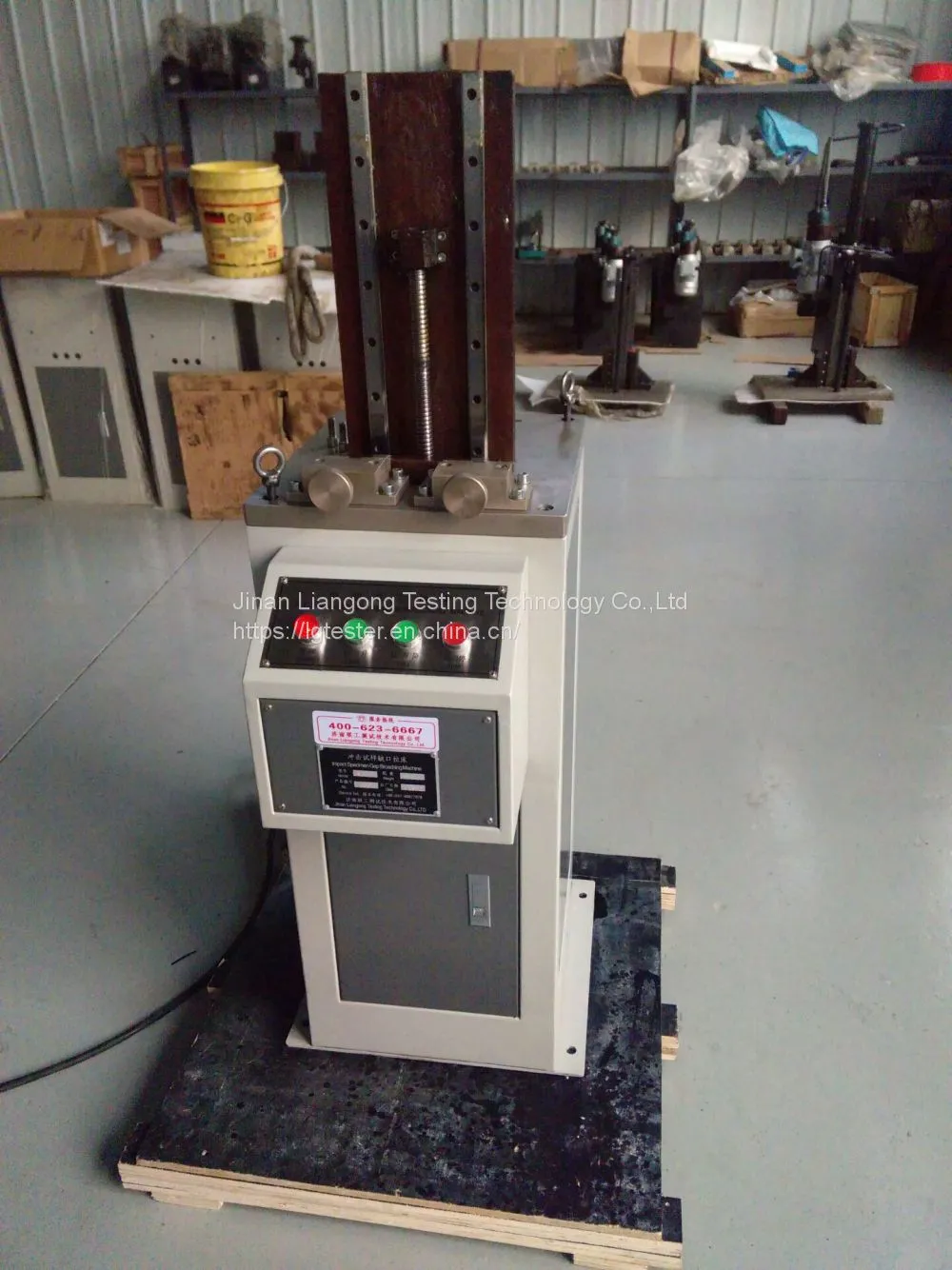

1.This machine adopts high-precision ball screw drive, linear guide and support, this structure ensures the broach of stability and geometric precision of incision.
2. This product is equipped with three broach, which can be processed simultaneously sample three gaps: with three “V” type or“U”type (also two “V” and one “U” type or two “U” and one “V” type ).
Whether processing V-or U-notched ATC is not required, processing one sample gap only need 10 seconds, it is easy to operate and reliable for processing the V-and U-gap, it can separately meet GB/T 2106-80 “metal Charpy (V type notch) impact test method” and GB/T 229-2007 “metal Charpy (U-type notch) impact test method”, as well as the corresponding request of ASTM E23, ISO148, ISO0083 standards at home and abroad.
3.The broaching machine adopts W18Cr4V manufacturing, high hardness, good wear resistance, each broach can process the samples as many as 20,000.
Technical Parameters:
Processing gap: V(2mm)-type (GB/T 229-2007) U(2mm)-type (GB/T 229-2007)
Sample size: 10 * 10 * 55, 10 * 7.5 * 55, 10 * 2.5 * 55
Broach itinerary: 350mm
Broaching speed: 2.3m/min
Power: 380V 50Hz 0.75Kw
Dimension: 570 * 430 * 1240 mm
Equipment weight: 180Kg
