5-12v Mirror Touch Sensor Switch Smart Dresser Bathroom Headlight Dimmer Three Stage Color Temperature 3M Tape Mount
US$ 5 - 15
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC 5V -24V 5A PIR Motion Activated Body Sensor Switch Mini With USB Interface Cable For LED Strip Roundness With Light SensorUS$ 5 - 15MOQ: 10 Pieces -
DC12V -24V 5A Touch Panel Control PWM Dimmer ON/Off Switch 0%-100% Smooth DimmingUS$ 5 - 15MOQ: 100 Pieces
-
LED Dimmer Touch Switch On/Off Stepless Dimming Switchs for Smart Home LampUS$ 5 - 15MOQ: 100 Pieces
-
LED Dimmer Touch Switch On/Off Stepless Dimming Switchs for Smart Home LampUS$ 5 - 15MOQ: 100 Pieces
-
Led Dimmer Switch Dc 12v Touch Sensor Dimmer Switches for Led Lights On/Off Stepless Dc 12-24V Desk Lamp StripUS$ 5 - 15MOQ: 100 Pieces
5-12v Mirror Touch Sensor Switch Smart Dresser Bathroom Sensor Headlight Touch Sensor Switch
Product Description
Type |
Mirror touch sensor switch |
Valtage |
DC 12V |
Output current |
3A |
Load Power |
10W |
Working Temperature |
-20℃-50℃ |
Material |
electronic components |
Size |
50x50mm/1.9x1.9in |
Color |
11mm |
Switch indicator Light |
Black |
Sensing Range |
5mm |
Important Note:
1,This dimmer is only used for indoor and can't be installed in metal material

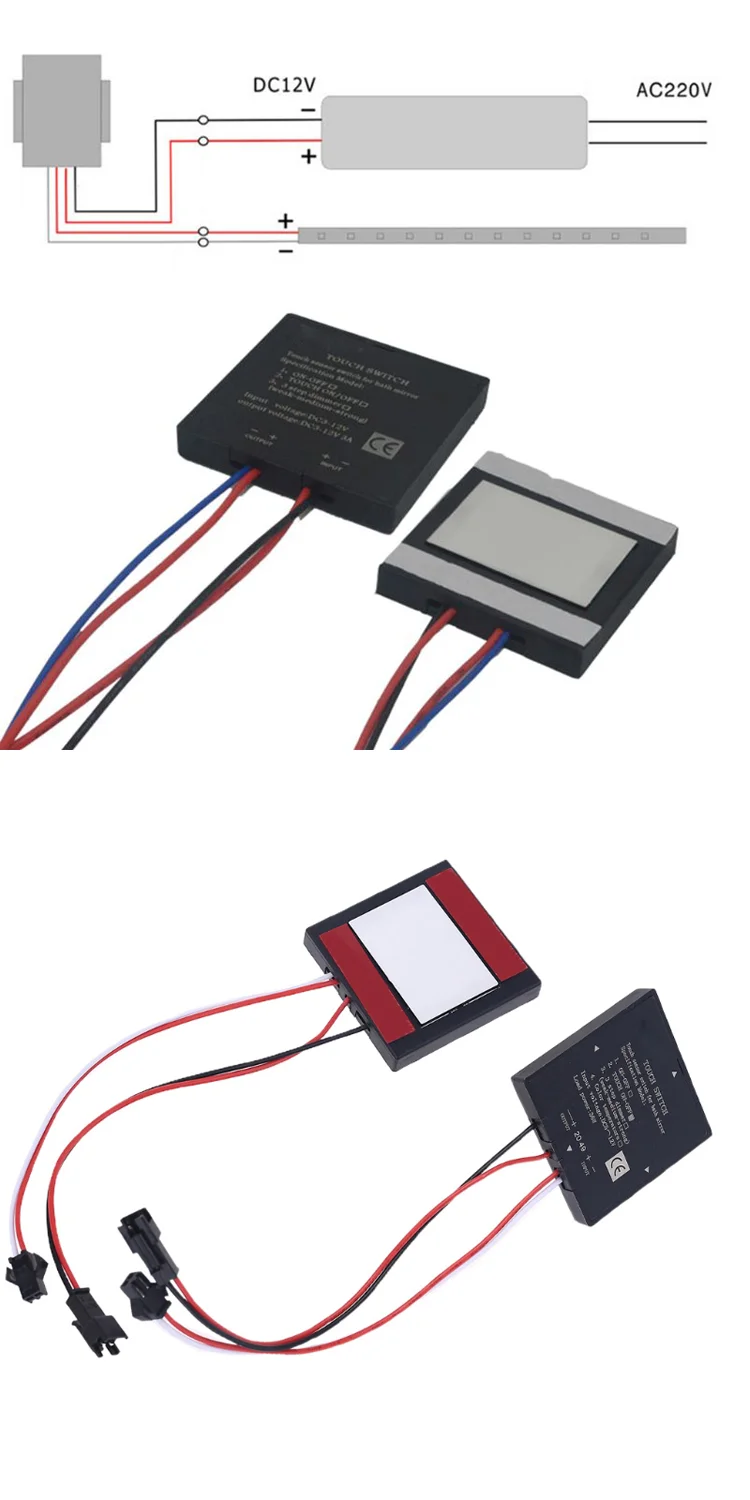

2,If the LED light is always on after the wire is connected, the switch cannot be controlled.The reasons are as follows:
a.The positive and negative poles are reversed;
b.The input and output are reversed;
c.The working voltage does not match
Solutions:
1. First determine whether the working voltage of the driver power supply is DC12V
2. Check whether the positive and negative poles are connected reversely. If the positive and negative poles are reversed, the blue indicator light on the switch will not light up.
3. Check whether the input and output are connected reversely.
1,This dimmer is only used for indoor and can't be installed in metal material
2,If the LED light is always on after the wire is connected, the switch cannot be controlled.The reasons are as follows:
a.The positive and negative poles are reversed;
b.The input and output are reversed;
c.The working voltage does not match
Solutions:
1. First determine whether the working voltage of the driver power supply is DC12V
2. Check whether the positive and negative poles are connected reversely. If the positive and negative poles are reversed, the blue indicator light on the switch will not light up.
3. Check whether the input and output are connected reversely.
Feature:
1,Touch sensing technology, easy and simple to operate.
2,It has background light for the touch switch board,it's incorporated,when the connector power with the switch,the background light of the switch board will be on,and it's also normally on.

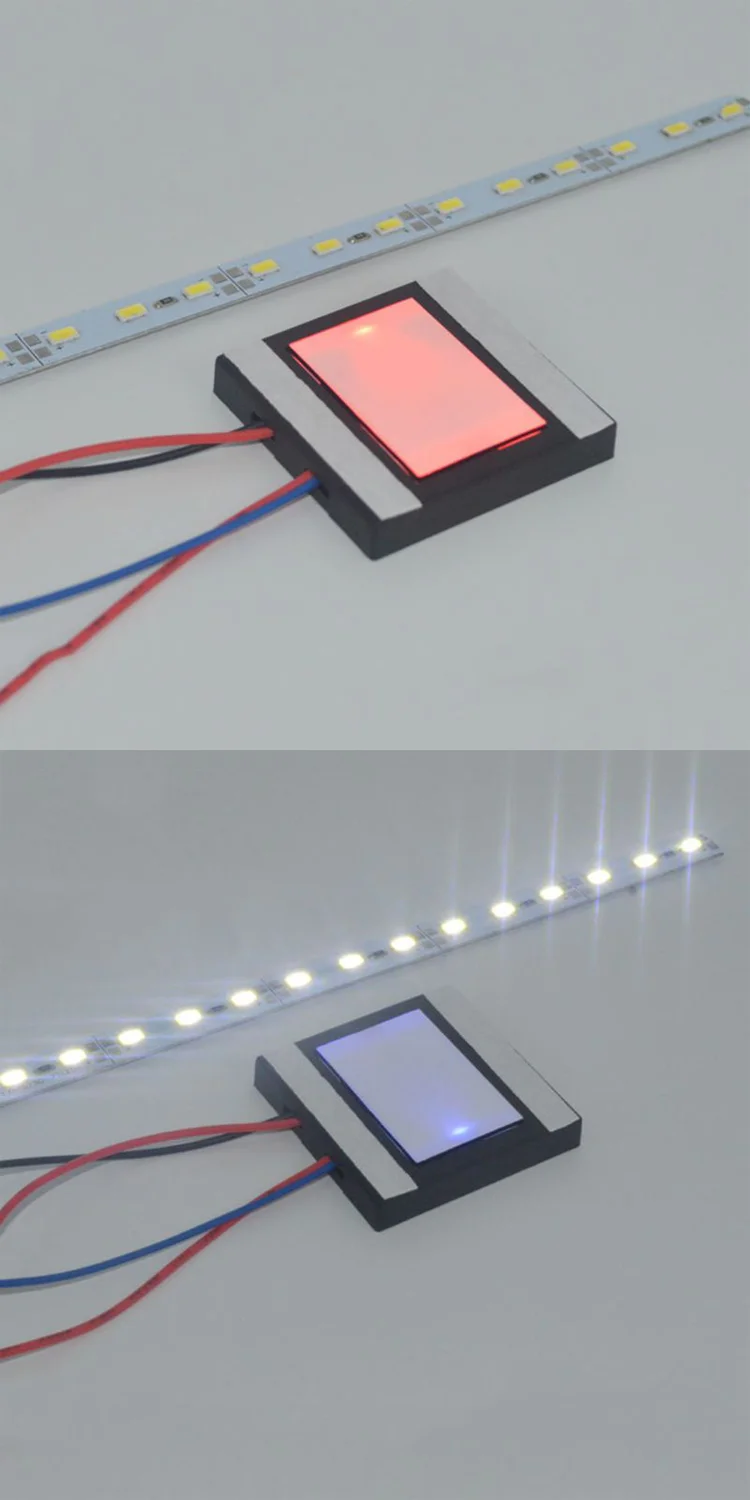

3,Red color for turn off the light, blue color for turn on the light, very clear for you to observe.
4,No need to find where the switch is in darkness, just touch the light body, you can easily switch on or off and adjust the brightness.
5,This switch is an isolated touch sensor switch,it is suitable for the led which has protection Cover such as glass, plastic, pottery. Suitable for home/hotel bathroom mirror use.
2,It has background light for the touch switch board,it's incorporated,when the connector power with the switch,the background light of the switch board will be on,and it's also normally on.
3,Red color for turn off the light, blue color for turn on the light, very clear for you to observe.
4,No need to find where the switch is in darkness, just touch the light body, you can easily switch on or off and adjust the brightness.
5,This switch is an isolated touch sensor switch,it is suitable for the led which has protection Cover such as glass, plastic, pottery. Suitable for home/hotel bathroom mirror use.
There are 4 styles for your choice :
Style 1: Short press - open - close
Style 2: Long press to adjust the light brightness, short press to turn on and off
Style 3: Short press the light brightness to change to weak-medium-strong-off
Style 4: it can control 2 colors of light strips, double output A-B-AB-off
Style 2: Long press to adjust the light brightness, short press to turn on and off
Style 3: Short press the light brightness to change to weak-medium-strong-off
Style 4: it can control 2 colors of light strips, double output A-B-AB-off
