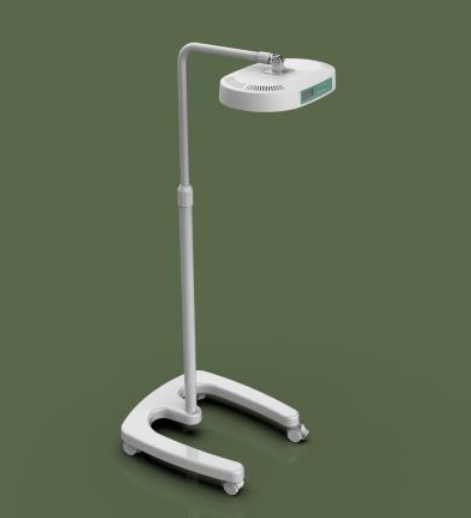

Help CenterInfant Phototherapy Unit H100
Related Products
Infant phototherapy unit is used to reduce bilirubin concentration in newborns. Its treatment principle is that bilirubin molecules undergo photooxidation and isomerization under the blue light with a wavelength of 425-475 nm, producing biliverdin and non-toxic water-soluble bipyrrole, which can be discharged through bile, urine and feces. Therefore, it is a safe and effective method for treating neonatal jaundice.
Featuers
● Irradiance intensity is adjustable in 3 grade : Low, medium, high
● Lighting observation function,Individual switch control.
● LCD screen displays therapy time and total treatment time separately
● Can set the treatment time with Count up timer and count down timer
● Lamp holder can be used 180 °front and back, 360 °left and right, height adjustable
● Adopt imported LED big lamp beads, long life and high curative effect
● Automatically save 30,000 hours of accumulated usage time
● High temperature resistant flame retardant material light box
● Can be used with infant incubator and infant radiant warmer and baby cradle
Specification
Model number |
H100 |
Period of use |
Six years |
Software version |
BL-10 |
Power supply |
～100-240V 50/60Hz |
Input power |
65VA |
Radiation wavelength |
400nm～550nm |
Height adjustment |
900~1600 |
Time accuracy |
1m/12h |
Noise |
≤55dB |
The amount of blue light |
16pcs |
The amount of white light |
1pc |
The lamp bead life |
29999h |
The radiation distance |
300mm-600mm |
The lamp-box irradiance and total irradiance
The irradiation distance：500mm，Effective irradiation area ：600mm*300mm | ||
Ebi average of total μW/cm2 |
Ebi max of total μW/cm2 |
|
The low setting setting |
400 |
500 |
The middle setting |
1000 |
1400 |
The high setting |
1500 |
1900 |
The irradiance distance：360mm，Effective irradiation area：430mm*300mm | ||
Ebi average of total μW/cm2 |
Ebi max of total μW/cm2 |
|
The low setting |
700 |
900 |
The middle setting |
1900 |
2500 |
The high setting |
2600 |
3500 |
Transport and Storage |
Working environment |
Environment Temperature:-10℃~ +55℃ |
Ambient temperature t: +18℃～+30℃ |
Environment Relative Humidity: ≤95% |
Relative humidity: 30%～75% |
Atmospheric Pressure: 500～1060hPa |
Atmospheric pressure: 700hpa～1060hpa |
Package:
Each unit packed into one carton
Size:1170mm*520mm*135mm
N.W:9.5KGS G.W:10KGS
