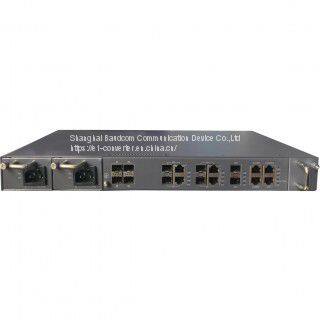

Smart Cassette GPON OLT 4PON

Smart Cassette GPON OLT 4PON photo-1
US$ 200 - 200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
baudcom
Place of Origin:
China
Model Number:
BD-OLT-4000GG
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
1 days
Brand Name baudcom
Place of Origin China
Model Number BD-OLT-4000GG
Description

4 PON is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.GPON OLT can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.

GPON OLT 4 PON provides 4 * downlink GPON port, 4 *GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. They are suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

Specification

Item

GPON OLT 4PON

Switching Capacity 63Gbps
Forwarding Capacity(Ipv4/Ipv6) 46.8Mpps

Service Port

4*PON port, 4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Dual power supplySupport double AC input, double DC input and AC+DC input

Power Supply

AC: input 90~264V 47/63Hz;DC: input -36V~-72V;

Power Consumption

50W

Dimensions (Width x Depth x Height)

437mm×44mm×280mm

Weight (Full-Loaded)

≤4KG

Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

         Relative humidity: 10%~90%, non-condensing



Product Tags: OLT , GPON
