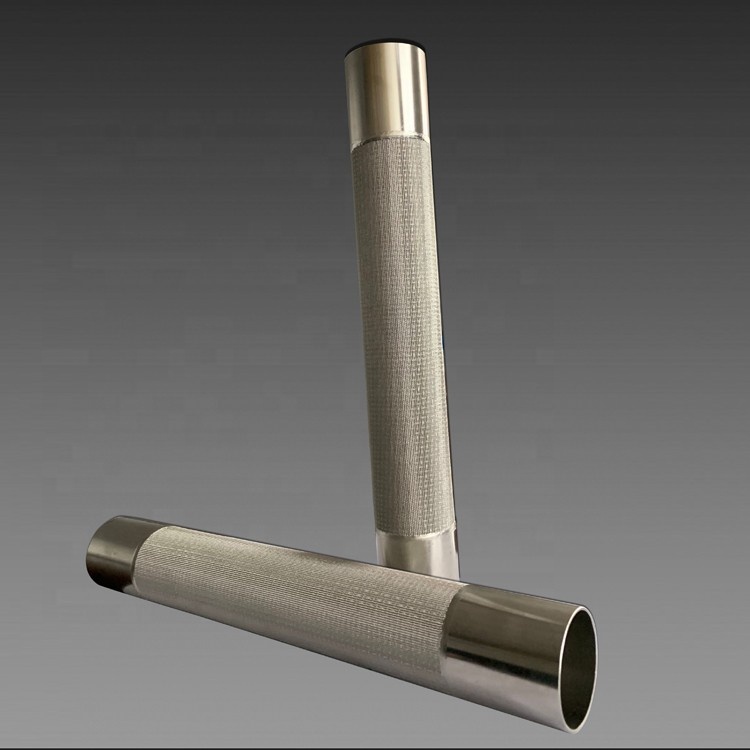

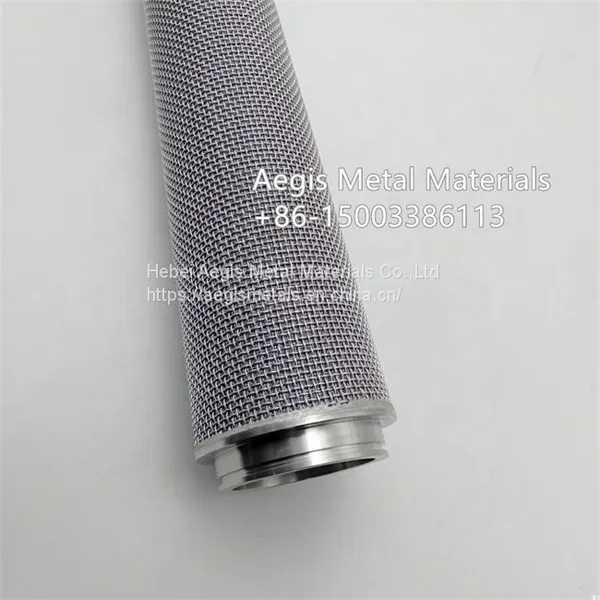

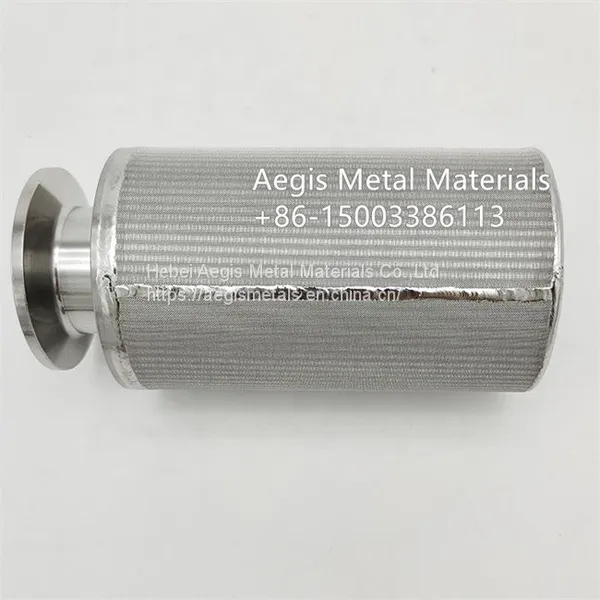

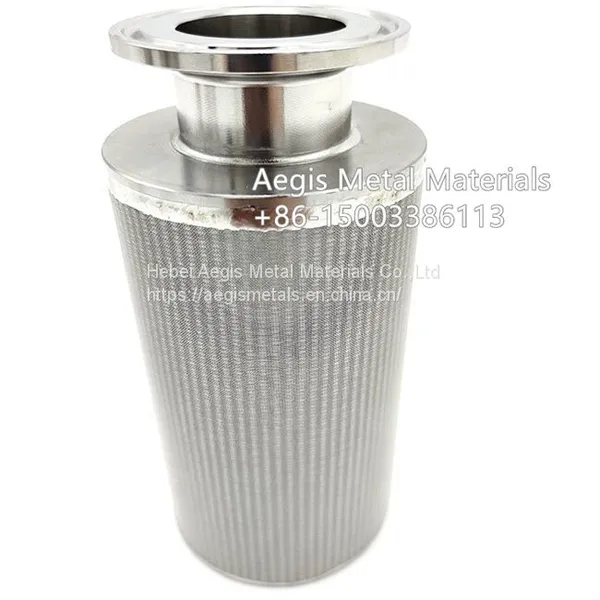

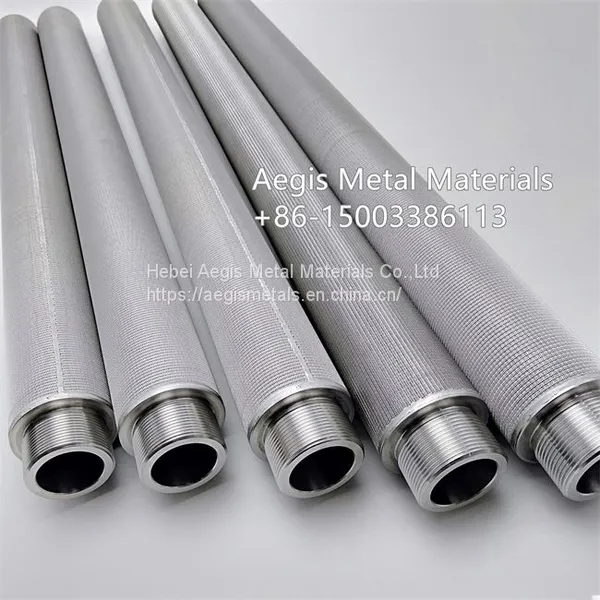

Help Center10 Micron Sintered Stainless Steel Wire Mesh Industrial Metal Filter Tube
Related Products
-
0.5mm Titanium Felt, 60% Porosity Titanium Sintered Fiber Felt, Ti Felt for Fuel CellUS$ 59.99 - 89.99MOQ: 2 Pieces -
0.5mm 20 Mesh Duratherm 700 Alloy Wire Mesh Duratherm 600 Alloy Woven MeshUS$ 59.99 - 89.99MOQ: 1 Square Meter
-
Ta1 Ta2 1mm 1.2mm 0.25mm Customized Battery Fuel Cell Titanium Felt ElectrodeUS$ 59.99 - 89.99MOQ: 2 Pieces
-
Hydrogen Fuel Cell 0.4mm 60-70% Porosity Pure Ti Sintered Titanium FeltUS$ 59.99 - 89.99MOQ: 2 Pieces
-
0.25mm 0.4mm 0.5mm 0.6mm 0.8mm Titanium Fiber Porous Ti Sintered Felts Liquid/Gas Diffusion LayerUS$ 59.99 - 89.99MOQ: 2 Pieces

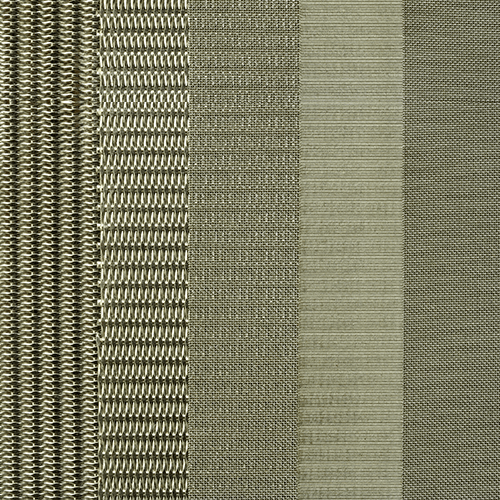

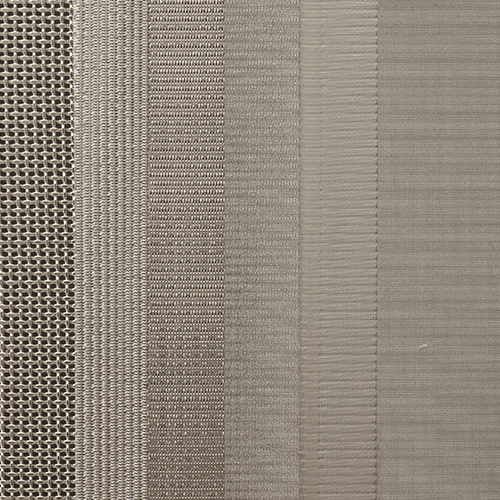

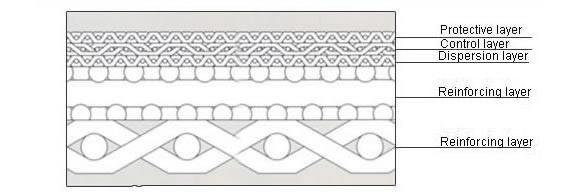

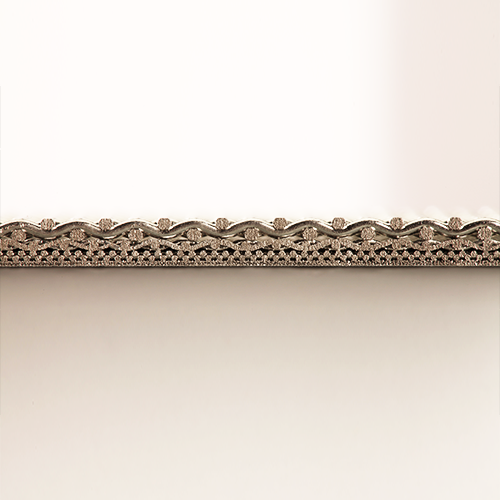

The product is a standard combination of 5-layer sintered wire mesh which has the widest application. Five different layers of stainless steel wire mesh are combined as per corresponding structure, and then sintered together in the vacuum sintered equipment, compressed and calendered, forming a porous sintered material.
Material:
The standard material are SS304, SS304L, SS316, SS316L. Special Alloy Steel :Hastelloy C-276, Monel 400, Inconel600, SS904, SS904L, Duplex steel 2205 are acceptable based on customer’s requirement.
Size:
The standard size are 500×1000mm, 600×1200mm, 1000×1000mm, 1200×1200mm, 1200×1500mm, and special size in range can be finished as requirement.

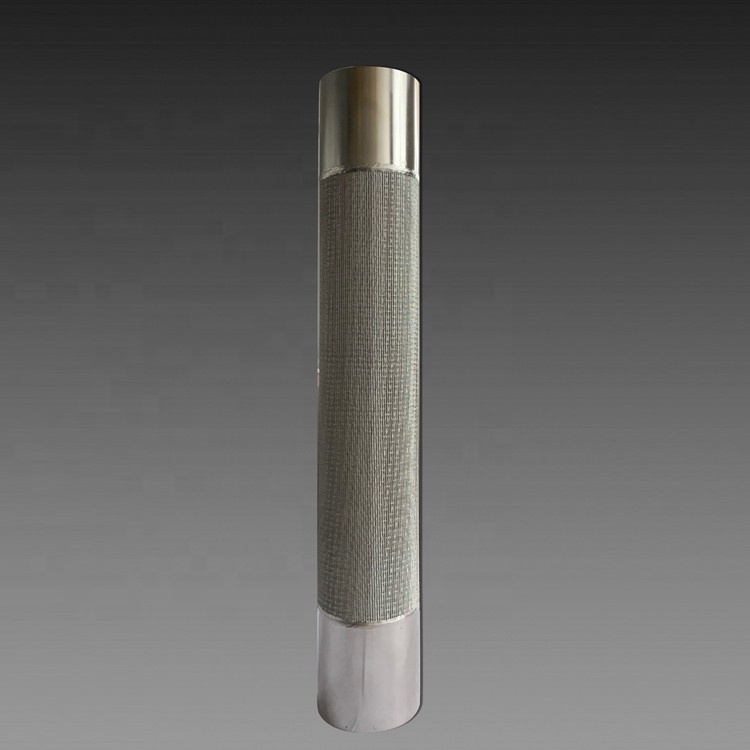

Sintered mesh filter Element are made with Five-Layer Sintered Wire Cloth, with
filter rating ranging from 0.5micron to 200micron.
Effective Filtration Area (per 10” length )
Pleated cartridge : 1.40ft2 (0.13m2)
Cylindrical catraidge: 0.55ft2 (0.05m2)
Gaskets and o-rings :
EPDM as standard , Nitrile ,PTFE , silicone , Viton and PFTE coated viton available on
request or by process selection .

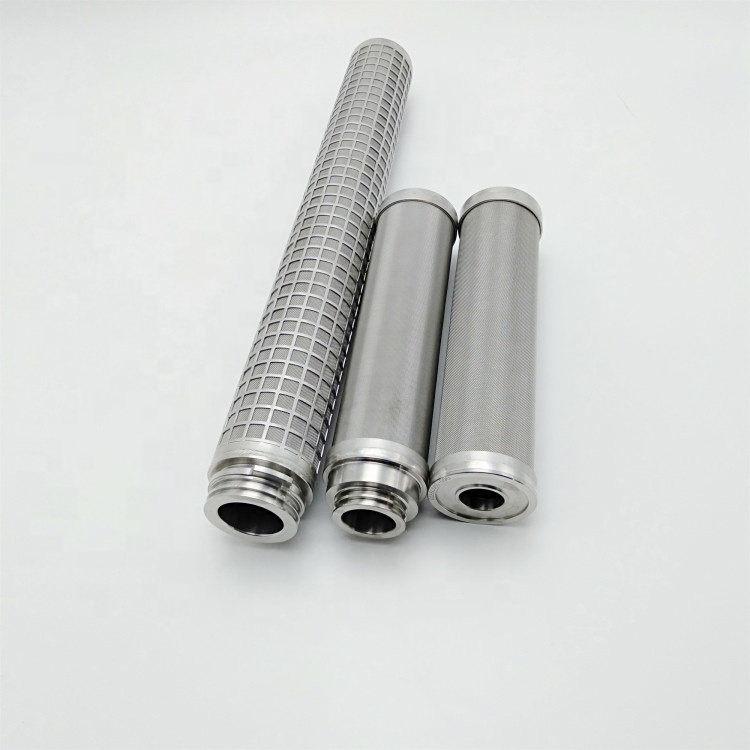

Cartridge End Fittings :
226 Fitting , 222 Fitting , Double open ended Fitting , Single open ended Fitting ,
Threaded End Fitting , 1’’,1/2’ NPT and so on.
