1.Automatic Unpacking Machine
System Introduction:
The automatic bag breaking and unloading machine is used for unpacking and unloading of bagged powder and granular materials. Automatic unpacking and unloading of dry powdery materials in chemical, petroleum, building materials, metallurgy, electric power, food, medicine, grain, environmental protection and other fields, such as salt lime, magnesium oxide, quartz sand, limestone, sawdust, activated carbon, milk powder, PVC powder, fly ash, urea, clay, gypsum, cement, added powder for sewage treatment, etc. can be automatically unpacked and unloaded. Automatic bag breaking, vibrating screen, automatic bag material separation, unloading and other steps, the material falls into the storage hopper by gravity to complete the bag unloading and unloading work. The dust generated during the operation is filtered out by the portable dust removal device, so that the workers can work in a clean environment. The equipment has the advantages of high efficiency, environmental protection, simple operation, convenient maintenance, etc. It can be used in conjunction with other conveying equipment to complete bag breaking and discharging and powder conveying and storage. JPD type automatic bag breaking unloader has the characteristics of reliable operation and low power consumption. It is especially suitable for the occasions where it is toxic, flammable, strong corrosion, high dust and difficult for personnel to touch.

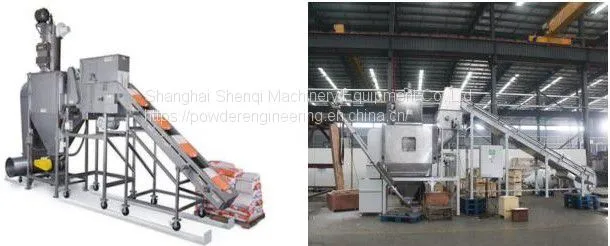

The automatic bag breaking and unloading machine includes: 1. Belt conveyor 2. Cutter device 3. Vibrating screen 4. Shell 5. Bracket 6. Dust removal device 7. Conveyor 8. Electric control box
The capacity of the automatic bag breaking unloader is: 1000～1800 bags/hour (depending on the manual handling speed)
Due to changes in material properties, use occasions, and environments, the configuration of the entire set of automatic bag breaking unloaders also changes. The following aspects should be paid attention to when selecting models:
Material: carbon steel, stainless steel (SUS304, SUS304L, etc.)
Structure: 1. Powder bag separation device:
1) Rolling sieve type 2) Cylindrical sieve type
2. Dust removal device:
1) Horizontal dust collector 2) Vertical cylinder type dust collector (single cylinder, double cylinder)
3. Powder output method:
1) Screw conveyor 2) Vibrating screen discharge (small volume)
4. Belt Conveyor:
1) General bag size 2) Wide bag Overall machine size: varies by structure.
