Help CenterZnSe Focus Lens Dia.12.7mm EFL 25.4mm 1/10λ BBAR (8000-12000nm)
Related Products
-
H-K9L Plano Convex Lens Dia.6mm EFL10mm Wavelength350-2200nmUS$ 1 - 10MOQ: 5 Pieces -
N-BK7 Plano Convex Lens Dia.6mm EFL15mm Wavelength350-2200nmUS$ 1 - 10MOQ: 5 Pieces
-
N-BK7 Plano Convex Lens Dia.9mm EFL54mm Wavelength350-2200nmUS$ 1 - 10MOQ: 5 Pieces
-
N-BK7 Plano Convex Lens Dia.12.7mm EFL100mm Wavelength350-2200nmUS$ 1 - 10MOQ: 5 Pieces
-
N-BK7 Plano Convex Lens Dia.25.4mm EFL150mm Wavelength350-2200nmUS$ 1 - 10MOQ: 5 Pieces

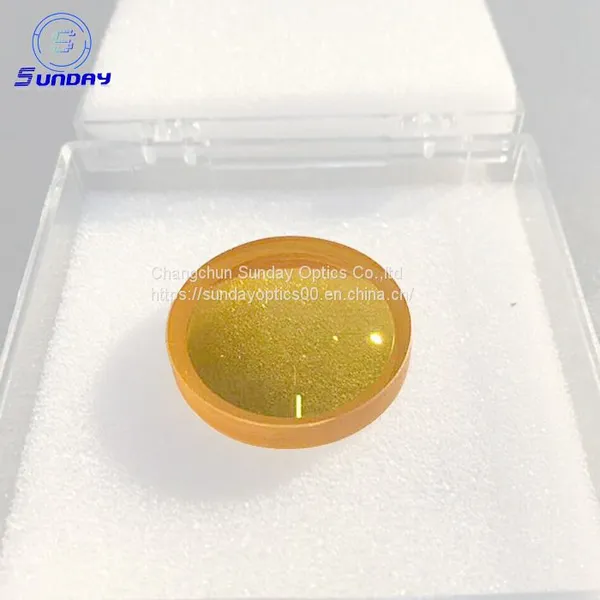

ZnSe lens is a good material for CO2 laser cutting and engraving machine, We select excellent material from USA, High transmission and high quality surface roughness. With high quality, we produce ZnSe plano convex lens, ZnSe plano concave lens, ZnSe meniscus lens, Znse ball lens, and custom size ZnSe.
Zinc Selenide (ZnSe) plane-convex (PCX) lenses are designed for focusing or collimating applications in mid - and long-wave infrared spectroscopy.These lenses are made of iI-VI infra-red zinc selenide material with a volumetric absorption coefficient of
CHARACTERISTICS OF ZNSE:
-Spectral range is 2-15μm
-Low absorption coefficient and high thermal stability, good thermal shock resistance.
-Coating Available：2-3um,3-10um,4-12um,10.6um
APPLICATION OF ZNSE
-ZnSe Crystal is used in the field of spectral analysis, laser optics, astronomy, medical instruments, infrared night vision, thermal imaging, infrared imaging, etc
-ZnSe Crystal is also a good choice for CO2 laser components.The transmittance is good around the band of 10.6 microns in which the CO2 laser operates.ZnSe material is a yellow transparent polycrystalline material with crystal particle size of about 70μm and transmittance range of 0.5-15μm.The synthesized by chemical vapor deposition (CVD) has almost no impurity absorption and very low scattering loss.Because the absorption of 10.6μm wavelength is very small, it is the preferred material for fabrication of optical devices in high power CO2 laser system.In addition, in the whole transmittance band, it is also widely used in different optical systems.
SPECIFICATIONS OF ZNSE
| Diameter | 5mm to 250mm |
| Thickness | 0.5-40mm |
| Material | Import USA ZnSe,China ZnSe |
| Surface Quality | 60-40 standard |
| Flatness | 1/10 lambda |
| Chamfer | 0.25mmx45degree |
| Focal Length Tol. | +/-1% |
| Coating Wavelength | 8um-12um |
| Clear Aperture | >85% of diameter |
| Design Wavelength | 10.6um |
